Newgear Helical Gear Reducer PXR support Distribution

Drive the world with planetary transmission and lead the future with precision manufacturing

Product features:

1. Spiral bevel gear mechanism to achieve right-angle steering output

2. Bevel gear has straight and spiral options; spiral bevel sounds smoother and quieter

3. Integrated design, high precision, high rigidity

4. Double-support cage planetary carrier structure, high reliability, and high precision at high-speed

5. With axial clearance adjustment function

6. Collet-type locking design, higher motor installation coaxially

7. Pair with helical gear gearbox, more stable transmission and large carrying capacity

Specification range: 42-120

Speed ratio range: 3-100

Accuracy range: 3-5arcmin (P1 Level)(for certain sizes) 5-8arcmin (P2 Level)

Get a free quote

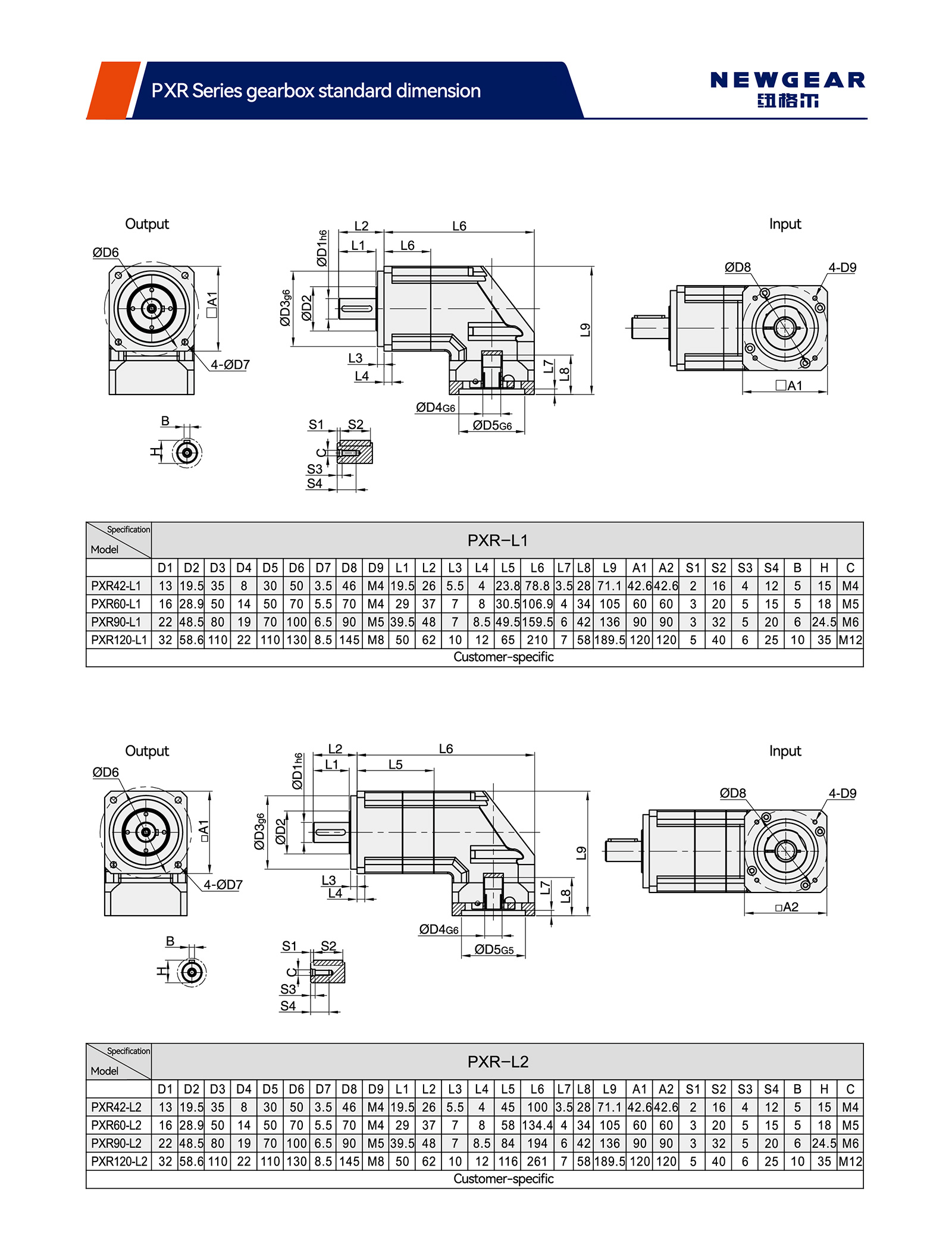

Technical Parameters			Model Series	PXR42	PXR60	PXR90	PXR120
Maximum Torque			Nm	1.5 Time Rated Torque
Emergency Braking Torque			Nm	2.5 Time Rated Torque
Maximum Allowable Radial Force			N	780	1530	3300	6700
Maximum Allowable Axial Force			N	390	600	1500	3000
Torsion Rigidity			Nm/arcmin	2.5	6	12	23
Maximum Input Speed			rpm	8000	8000	6000	6000
Rated Input Speed			rpm	4000	4000	3000	3000
Noise			dB	≤56	≤64	≤66	≤66
Average Life Span			h	20000
Full Load Efficiency			%	L1≥95% L2≥92%
Backlash	P1	L1	arcmin	≤3	≤5	≤5	≤5
	P1	L2	arcmin	≤5	≤7	≤7	≤7
	P2	L1	arcmin	≤5	≤8	≤8	≤8
	P2	L2	arcmin	≤7	≤10	≤10	≤10
Moment of Inertia	L1	3	Kg.cm2	/	0.40	2.28	6.87
		4	Kg.cm2	0.12	0.40	2.28	6.87
		5	Kg.cm2	0.09	0.40	2.28	6.87
		7	Kg.cm2	0.09	0.40	2.28	6.87
		8	Kg.cm2	/	0.40	1.45	4.76
		10	Kg.cm2	0.09	0.40	1.45	4.76
		14	Kg.cm2	/	0.40	2.28	6.87
		20	Kg.cm2	/	0.40	2.28	6.87
	L2	25	Kg.cm2	0.09	0.40	2.28	6.87
		30	Kg.cm2	/	0.40	2.28	6.87
		35	Kg.cm2	0.09	0.40	2.28	6.87
		40	Kg.cm2	0.09	0.40	2.28	6.87
		50	Kg.cm2	0.09	0.30	1.45	4.76
		70	Kg.cm2	0.09	0.30	1.45	4.76
		100	Kg.cm2	0.07	0.30	1.45	4.76

Product features:
