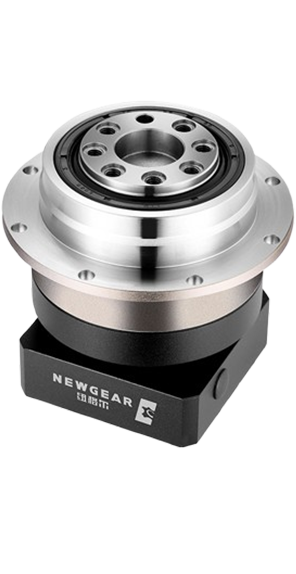

Newgear Stepper Planetary Gearbox PG ISO 9001 High Quality

Drive the world with planetary transmission and lead the future with precision manufacturing

Product features:

1. Unique flange output method, allows greater installation freedom

2. Shorter body size for tighter space requirements

3. Shaftless double-support cage planetary carrier structure, high reliability, suitable for high-speed

4. With axial clearance adjustment function

5. The housing and bearing can be switched between straight and helical gears, After changing to angular contact bearing, the axial force and radial force carrying capacity are greatly improved.

6. lmpact-resistant, adaptable to high acceleration and decelera tion conditions.

7. Low return clearance, accurate positioning

Specification range: 64-110

Speed ratio range: 4-100

Accuracy range: 1-3arcmin (P1 Level)3-5arcmin (P2 Level)

Get a free quote

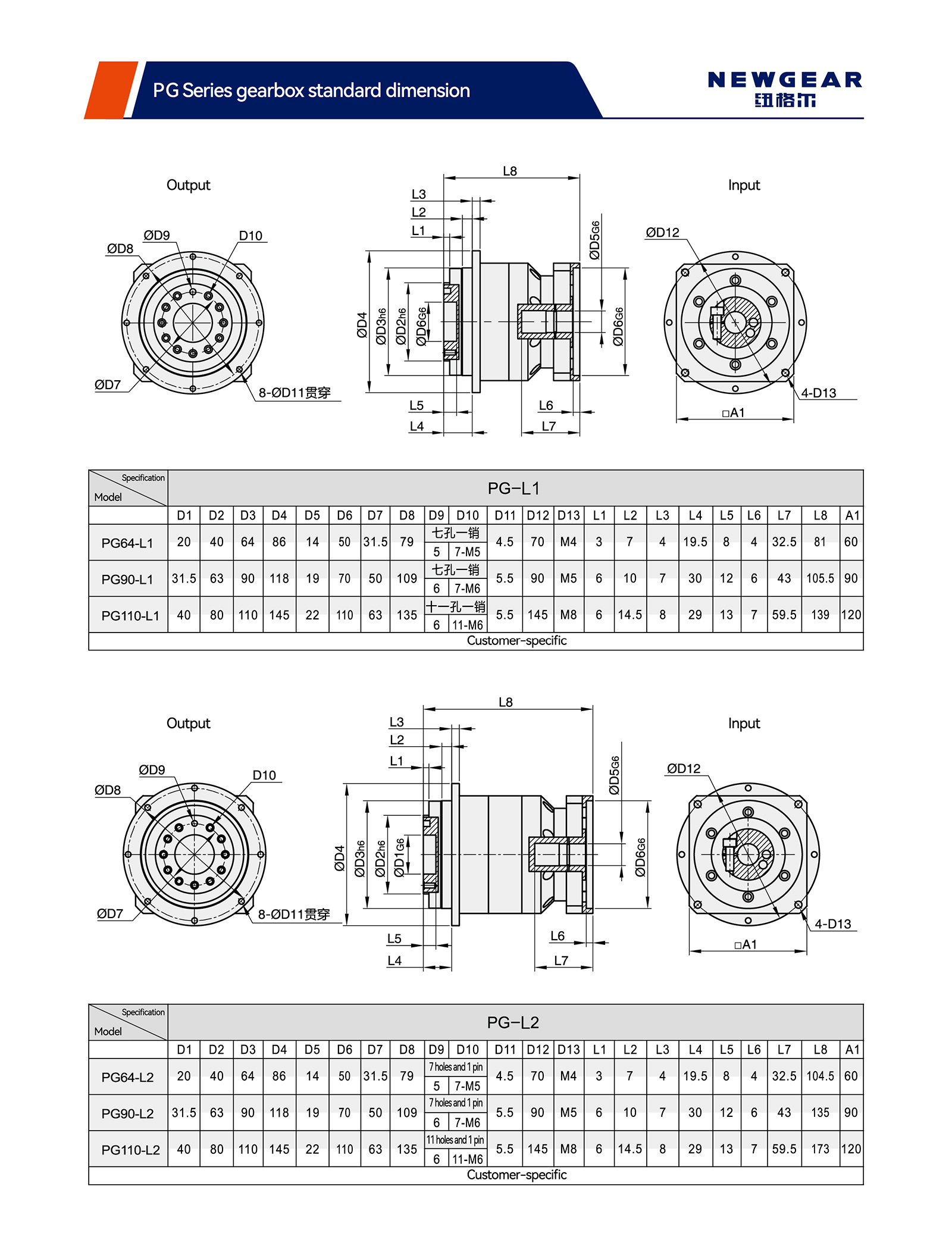

Newgear Stepper Planetary Gearbox PG ISO 9001 High Quality

Technical Parameters			Model Series	PG64	PG90	PG110
Maximum Torque			Nm	3 Time Rated Torque
Emergency Braking Torque			Nm	3 Time Rated Torque
Maximum Allowable Radial Force			N	2050	4100	8200
Maximum Allowable Axial Force			N	513	1025	2050
Torsion Rigidity			Nm/arcmin	13	31	82
Maximum Input Speed			rpm	6000	6000	4500-6000
Rated Input Speed			rpm	4000	3000	3500
Noise			dB	≤58	≤60	≤65
Average Life Span			h	20000
Full Load Efficiency			%	L1≥95% L2≥90%
Backlash	P1	L1	arcmin	≤3	≤3	≤3
	P1	L2	arcmin	≤5	≤5	≤5
	P2	L1	arcmin	≤5	≤5	≤5
	P2	L2	arcmin	≤8	≤8	≤8
Moment of Inertia	L1	4	Kg.cm2	0.13	0.51	2.87
		5	Kg.cm2	0.13	0.47	2.71
		7	Kg.cm2	0.13	0.45	2.62
		10	Kg.cm2	0.03	0.44	2.57
	L2	16	Kg.cm2	0.03	0.23	0.47
		20	Kg.cm2	0.03	0.23	0.47
		25	Kg.cm2	0.03	0.23	0.47
		28	Kg.cm2	0.03	0.23	0.47
		35	Kg.cm2	0.03	0.23	0.47
		40	Kg.cm2	0.03	0.23	0.47
		50	Kg.cm2	0.03	0.20	0.44
		70	Kg.cm2	0.03	0.20	0.44
		100	Kg.cm2	0.03	0.20	0.44

Technical Parameters		Model Series	PG64	PG90	PG110
	Specification	Ratio	PG64	PG90	PG110
Rated Torque	L1	4	40	120	220
		5	40	125	260
		7	40	125	260
		10	35	80	160
	L2	16	50	120	300
		20	50	120	300
		25	50	125	350
		28	50	120	300
		35	50	125	350
		40	50	125	350
		50	50	125	350
		70	50	125	350
		100	35	80	220
Degree of protection		IP65
Operating Temperature		’-10°C to 90°C
Weight（Kg)	L1		1.3	3.4	7.1
Weight（Kg)	L2		1.9	4.7	9.5
