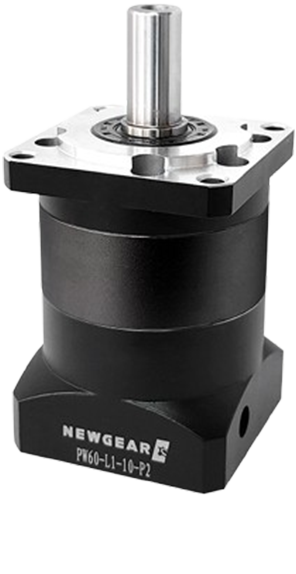

Newgear Nema 23 Planetary Gearbox PW with High Torque Precision

Drive the world with planetary transmission and lead the future with precision manufacturing

Product features:

1. Split design, more output options

2. Input and output sizes can be seamlessly switched with straight tooth series

3. Double-support cage planet carrier, high reliability, and high precision at high-speed

4. Two-stage single support bracket design, very cost effective

5. The input shaft can be opened with a keyway

6. Helical gear transmission, more stable transmission and large carrying capacity

7. Low return clearance,accurate positioning

Specification range: 60-120

Speed ratio range: 3-100

Accuracy range: 1-3arcmin (P1 Level) 3-5arcmin (P2 Level)

Get a free quote

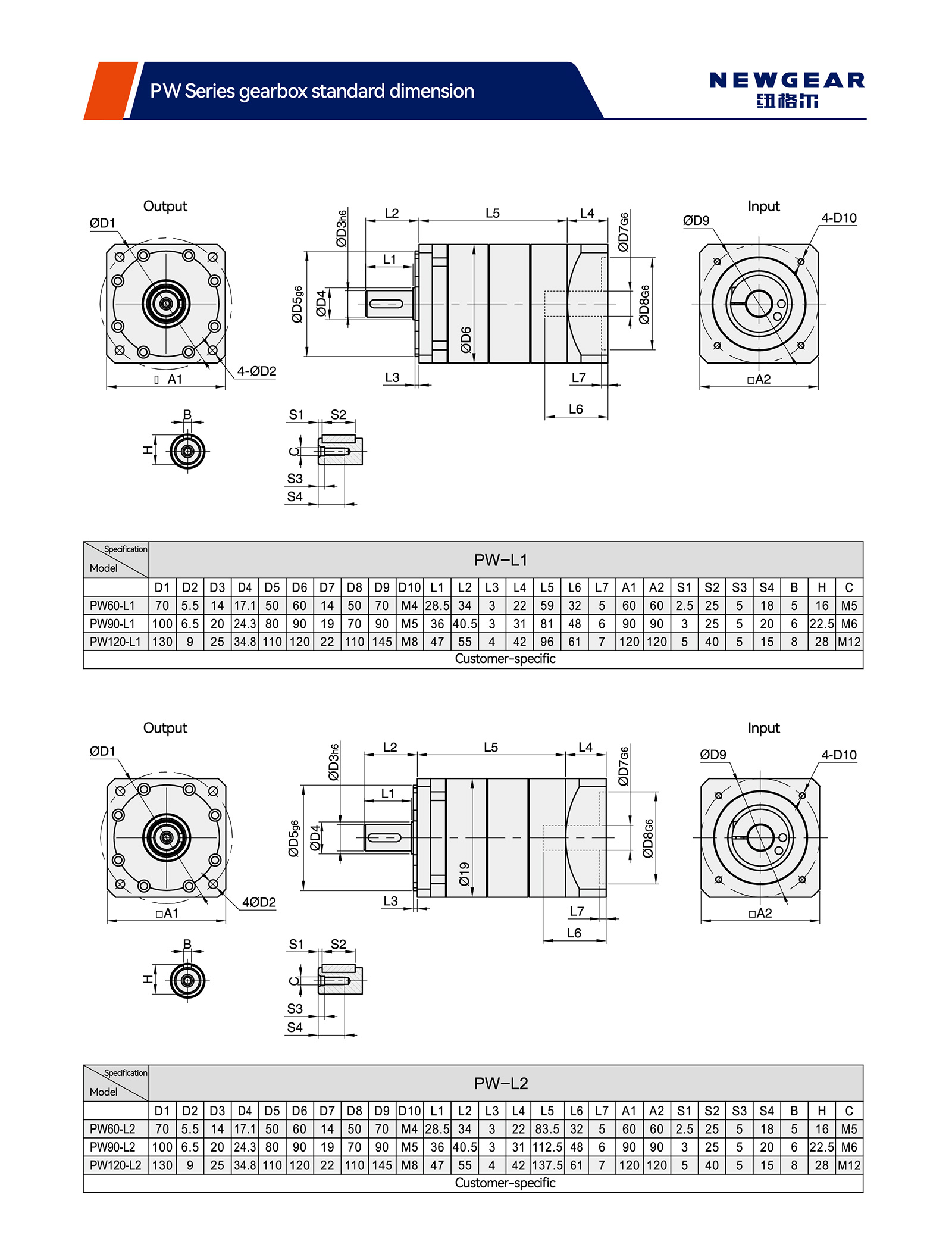

Technical Parameters			Model Series	PW60	PW90	PW120
Maximum Torque			Nm	1.5 Time Rated Torque
Emergency Braking Torque			Nm	2.5 Time Rated Torque
Maximum Allowable Radial Force			N	1350	3100	6100
Maximum Allowable Axial Force			N	630	1300	2800
Torsion Rigidity			Nm/arcmin	5	10	20
Maximum Input Speed			rpm	8000	6000	6000
Rated Input Speed			rpm	4000	3000	3500
Noise			dB	≤58	≤60	≤65
Average Life Span			h	20000
Full Load Efficiency			%	L1≥95% L2≥92%
Backlash	P1	L1	arcmin	≤3	≤3	≤3
	P1	L2	arcmin	≤5	≤5	≤5
	P2	L1	arcmin	≤5	≤5	≤5
	P2	L2	arcmin	≤7	≤7	≤7
Moment of Inertia	L1	3	Kg.cm2	0.16	0.61	3.25
		4	Kg.cm2	0.14	0.48	2.74
		5	Kg.cm2	0.13	0.47	2.71
		7	Kg.cm2	0.13	0.45	2.62
		8	Kg.cm2	0.13	0.45	2.62
		10	Kg.cm2	0.13	0.40	2.57
	L2	12	Kg.cm2	0.13	0.61	0.45
		15	Kg.cm2	0.13	0.61	0.45
		20	Kg.cm2	0.13	0.45	0.45
		25	Kg.cm2	0.13	0.45	0.45
		28	Kg.cm2	0.13	0.40	0.40
		30	Kg.cm2	0.13	0.61	0.45
		35	Kg.cm2	0.13	0.45	0.45
		40	Kg.cm2	0.13	0.45	0.45
		50	Kg.cm2	0.13	0.40	0.40
		70	Kg.cm2	0.13	0.40	0.40
		100	Kg.cm2	0.13	0.40	0.40
