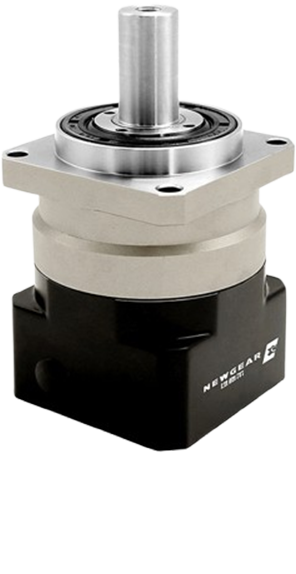

Newgear Helical High Precision China Planetary Gearbox PA Factory in Stock

Drive the world with planetary transmission and lead the future with precision manufacturing

Product features:

1. Round body, one-piece design, high precision, high rigidity

2. Compared with corresponding body series, PX, it offersmore sizes

3. Double-support cage planet carrier, high reliability, and high precision at high-speed

4. With axial clearance adjustment function

5. The input shaft can be opened with a keyway

6. Helical gear transmission, more stable transmission and large carrying capacity

7. Low return clearance, accurate positioning

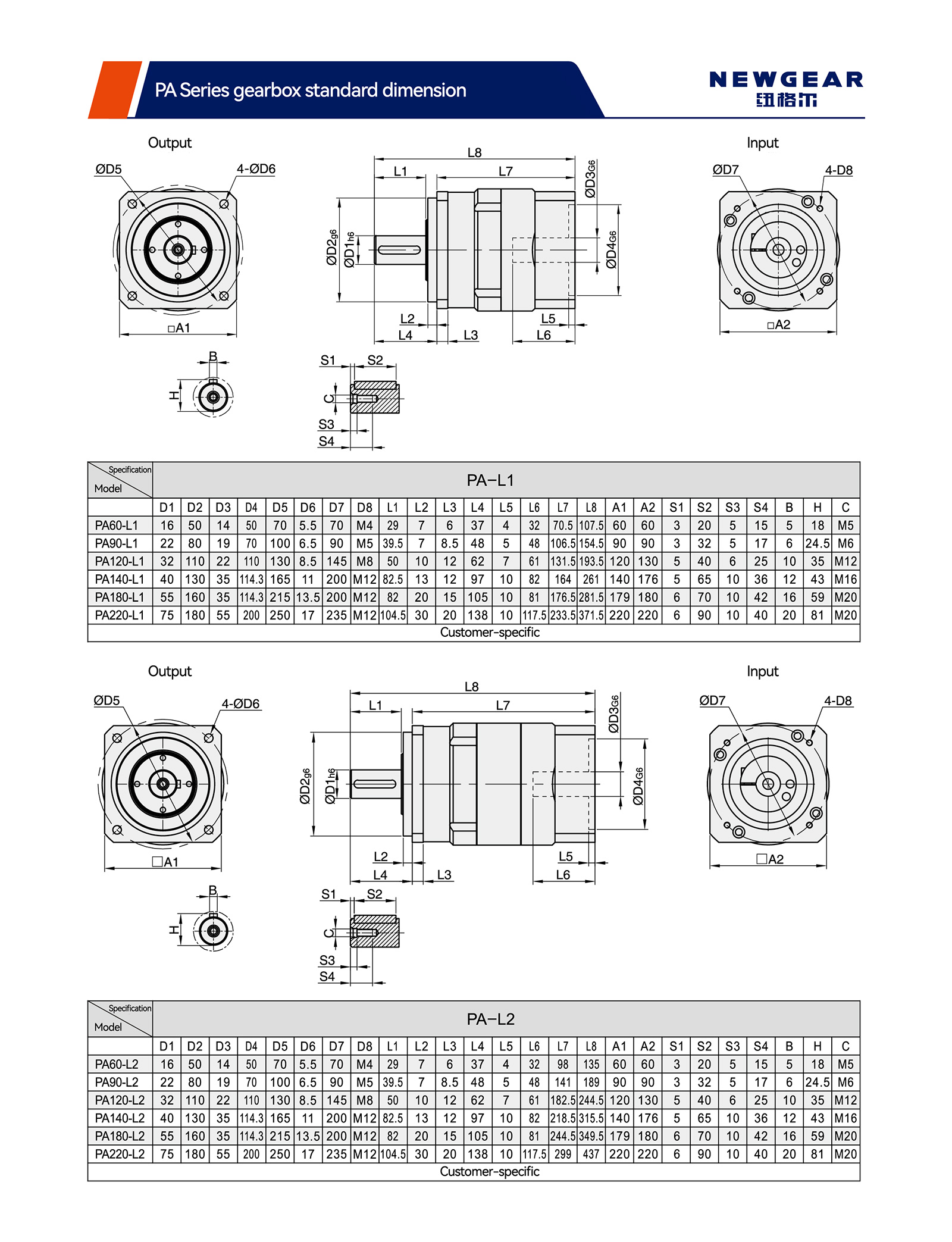

Specification range: 60-220

Speed ratio range: 3-100

Accuracy range: 1-3arcmin (P1 Level)3-5arcmin (P2 Level)

Get a free quote

Technical Parameters			Model Series	PA60	PA90	PA120	PA140	PA180	PA220
Maximum Torque			Nm	1.5 Time Rated Torque
Emergency Braking Torque			Nm	2.5 Time Rated Torque
Maximum Allowable Radial Force			N	1530	3250	6700	9400	14500	16500
Maximum Allowable Axial Force			N	630	1300	3000	4700	7250	8250
Torsion Rigidity			Nm/arcmin	6	12	23	47	130	205
Maximum Input Speed			rpm	8000	6000	6000	6000	6000	3000
Rated Input Speed			rpm	4000	3000	3000	3000	3000	1500
Noise			dB	≤58	≤60	≤65	≤68	≤68	≤72
Average Life Span			h	20000
Full Load Efficiency			%	L1≥95% L2≥90%
Backlash	P1	L1	arcmin	≤3	≤3	≤3	≤3	≤3	≤3
	P1	L2	arcmin	≤5	≤5	≤5	≤5	≤5	≤5
	P2	L1	arcmin	≤5	≤5	≤5	≤5	≤5	≤5
	P2	L2	arcmin	≤7	≤7	≤7	≤7	≤7	≤7
Moment of Inertia	L1	3	Kg.cm2	0.16	0.61	3.25	9.21	28.98	69.70
		4	Kg.cm2	0.14	0.48	2.74	7.54	23.67	54.61
		5	Kg.cm2	0.13	0.47	2.71	7.42	23.29	53.51
		7	Kg.cm2	0.13	0.45	2.62	7.14	22.48	50.92
		8	Kg.cm2	0.13	0.45	2.60	7.14	22.50	/
		10	Kg.cm2	0.13	0.40	2.57	7.03	22.51	50.18
	L2	12	Kg.cm2	0.13	0.45	0.45	2.63	7.30	23.59
		15	Kg.cm2	0.13	0.45	0.45	2.63	7.30	23.59
		20	Kg.cm2	0.13	0.45	0.45	2.43	6.92	23.33
		25	Kg.cm2	0.13	0.45	0.45	2.39	6.92	22.68
		28	Kg.cm2	0.13	0.45	0.45	2.43	6.92	23.33
		30	Kg.cm2	0.13	0.45	0.45	2.63	7.30	25.59
		35	Kg.cm2	0.13	0.45	0.45	2.39	6.92	22.68
		40	Kg.cm2	0.13	0.45	0.45	2.43	6.92	23.33
		50	Kg.cm2	0.13	0.40	0.40	2.39	6.92	22.68
		70	Kg.cm2	0.13	0.40	0.40	2.39	6.72	22.68
		100	Kg.cm2	0.13	0.40	0.40	2.39	6.72	22.68
