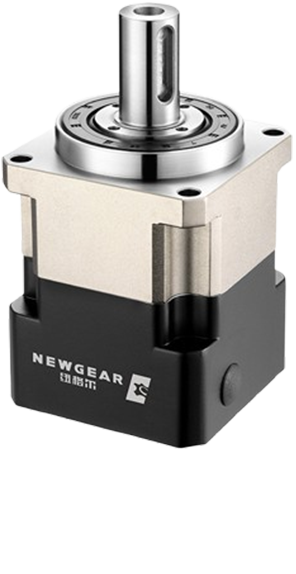

Newgear Servo Planetary Gearbox Helical Gear PX for Industrial Automation

Drive the world with planetary transmission and lead the future with precision manufacturing

Product features:

1. Integrated design, high precision, high rigidity

2. Double support cage planetary carrier structure, highreliability suitable for high-speed

3. With axial clearance adjustment function

4. The input shaft can be opened with a keyway

5. Allows greater rated torque, axial and radial load

6. Helical gear transmission,smoother transmission and greater load bearing capacity

7. Low return clearance, more accurate positioning

Specification range: 42-120

Speed ratio range: 3-100

Accuracy range: 1-3arcmin (P1 Level)3-5arcmin (P2 Level)

Get a free quote

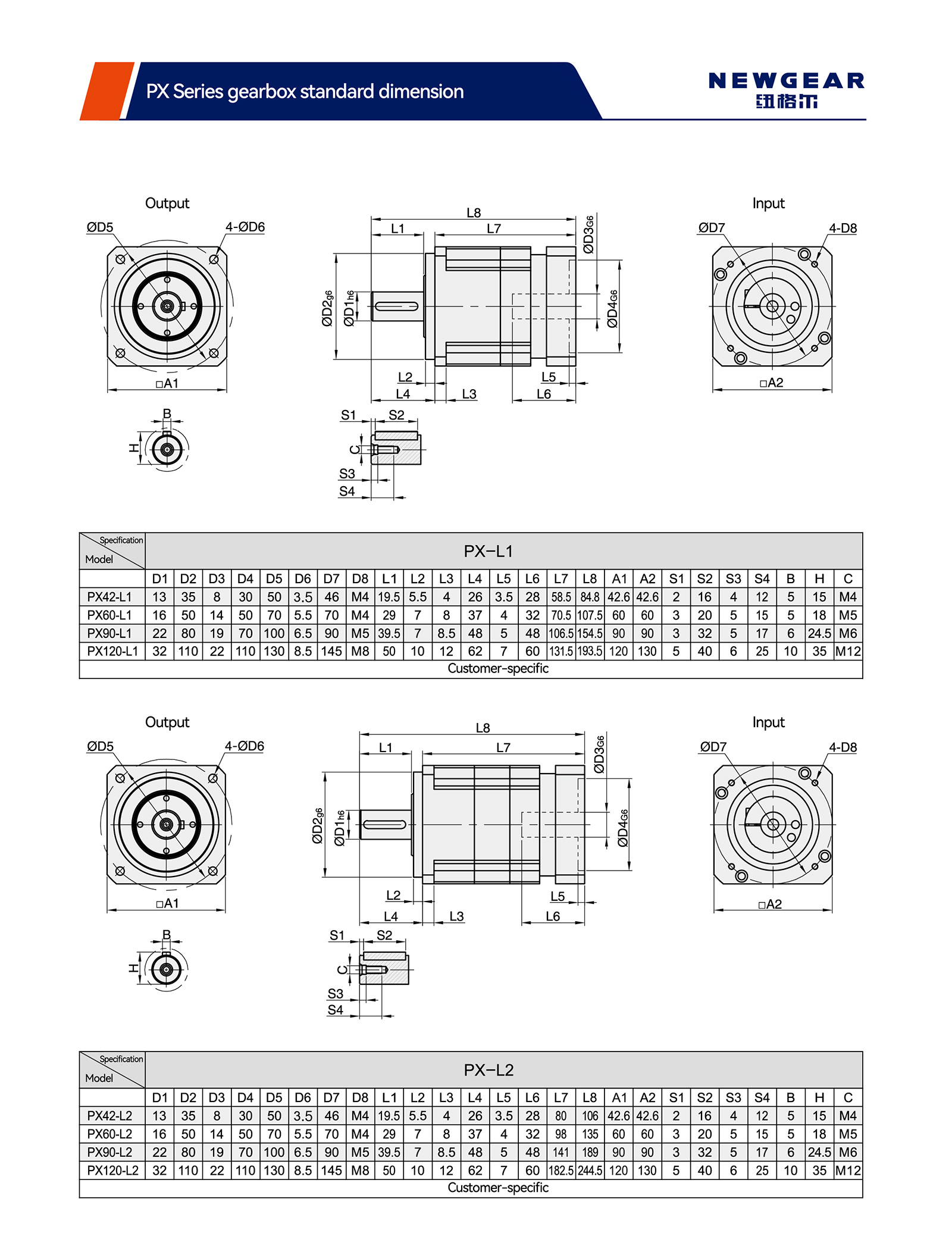

Technical Parameters			Model Series	PX42	PX60	PX90	PX120
Maximum Torque			Nm	1.5 Time Rated Torque
Emergency Braking Torque			Nm	2.5 Time Rated Torque
Maximum Allowable Radial Force			N	780	1530	3250	6700
Maximum Allowable Axial Force			N	390	630	1300	3000
Torsion Rigidity			Nm/arcmin	2.5	6	12	23
Maximum Input Speed			rpm	8000	8000	8000	8000
Rated Input Speed			rpm	4000	4000	3000	3000
Noise			dB	≤56	≤58	≤60	≤65
Average Life Span			h	20000
Full Load Efficiency			%	L1≥95% L2≥90%
Backlash	P1	L1	arcmin	≤3	≤3	≤3	≤3
	P1	L2	arcmin	≤5	≤5	≤5	≤5
	P2	L1	arcmin	≤5	≤5	≤5	≤5
	P2	L2	arcmin	≤7	≤7	≤7	≤7
Moment of Inertia	L1	3	Kg.cm2	/	0.16	0.61	3.25
		4	Kg.cm2	0.03	0.14	0.48	2.74
		5	Kg.cm2	0.03	0.13	0.47	2.71
		7	Kg.cm2	0.03	0.13	0.45	2.62
		8	Kg.cm2	/	0.13	0.45	2.60
		10	Kg.cm2	0.03	0.13	0.40	2.57
	L2	12	Kg.cm2	/	0.13	0.45	0.45
		15	Kg.cm2	/	0.13	0.45	0.45
		20	Kg.cm2	0.03	0.13	0.45	0.45
		25	Kg.cm2	0.03	0.13	0.45	0.40
		28	Kg.cm2	0.03	0.13	0.45	0.45
		30	Kg.cm2	/	0.13	0.45	0.45
		35	Kg.cm2	0.03	0.13	0.40	0.40
		40	Kg.cm2	0.03	0.13	0.45	0.45
		50	Kg.cm2	0.03	0.13	0.40	0.40
		70	Kg.cm2	0.03	0.13	0.40	0.40
		100	Kg.cm2	0.03	0.13	0.40	0.40
