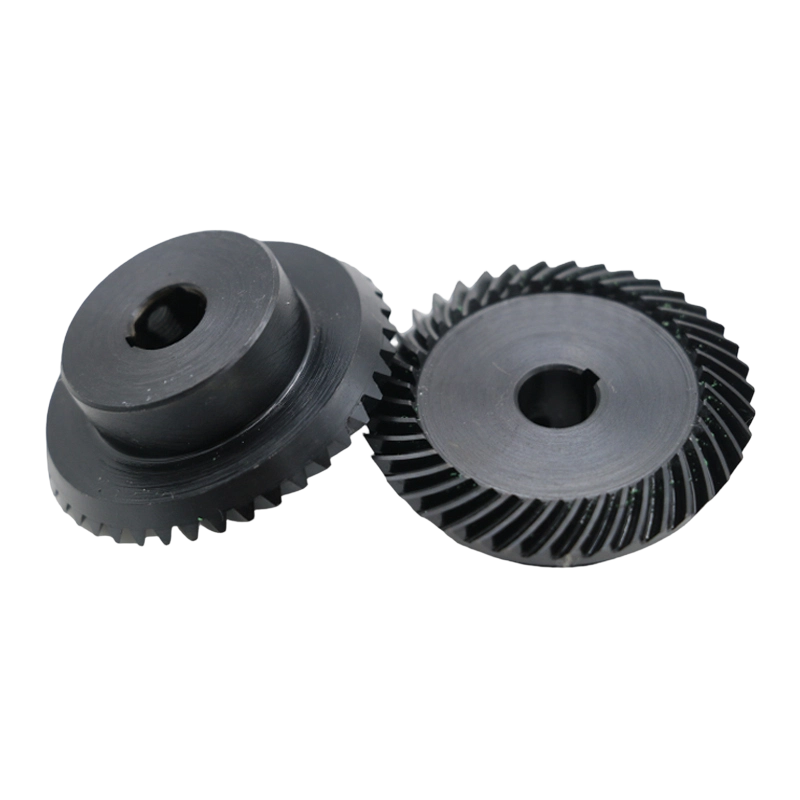

Stainless Steel Aluminum Blackening Helical Bevel Gear for Laser Machinery
Send Inquiry Now
Position: Home > Product Center > Gear & Timing Pulley > Bevel Gear > High Precision Spiral Hobbing Die Casting Gear Steel Metal Drive Motor Pinion Wheel Transmission Gears
High Precision Spiral Hobbing Die Casting Gear Steel Metal Drive Motor Pinion Wheel Transmission Gears
Productfeatures:
High Precision Spiral Hobbing Die Casting Gears are engineered to meet the demanding requirements of modern power transmission systems. Designed for motor-driven applications, these gears ensure efficient torque transfer, high rotational accuracy, and long-term durability across a wide range of industrial environments.
Technical Advantages
High dimensional accuracy and tight tolerances
Excellent resistance to wear and corrosion
Stable performance under continuous operation
Reduced maintenance and downtime
Compatibility with high-speed and high-load conditions
Bevel Gear:
| Product Name | bevel gear |
| Material | Steel |
| shape | Bevel |
| warranty | 1.5 year |
| core components | PLC, Bearing, Motor, Pressure Vessel, Gear |
| Trademark | iHF |
| place of origin | Guangdong, China |
| pressure angle | 20 |
| Type | spur/helical/bevel/worm gear |
| Model | M0.5-M8 |
| Bore | Small hole , OEM hole |
| Color | Natural / Black/ as demands |
| Presicion grade | DIN7 DIN6 |
| Gross weight per batch | 2.500 kg |
Product Description:
| Product name | Bevel Gear |
| Type | spur/helical/bevel/worm gear |
| Model | M0.5-M8 |
| Pressure angle | 20 degree |
| Presicion grade | DIN5 to DIN7 |
| Color | Natural / Black/ as demands |
| Teeth Number | as demands |
| Hub | with hub or without hub |
| Set screw | can be customized |
| Bore | Small hole , OEM hole |
| Materials Available | Stainless Steel, Carbon Steel, Brass, Bronze, Iron, Aluminum Alloy，SCM415,20CrMoTi,40Cr,SUS303/304,etc |
| Heat Treatment | Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding...... |
| Surface Treatment | Carburizing and Quenching,Tempering ,Tooth suface high quenching Hardening,Tempering |
| Hardness | 55- 60HRC |
| Machining Process | Material preparation, normalizing, rough turning, quenching and tempering, semi fine turning outer circle, rough turning spiral surface, fine turning (fine grinding) inner hole end face, keyway, semi fine turning spiral surface, pliers (rest incomplete teeth), semi fine grinding outer circle, semi fine grinding spiral surface, grinding center hole, fine grinding outer circle, fine grinding spiral surface, finished product inspection |
| Applications | Electric machinery, metallurgical machinery, environmental protection machinery, electronic and electrical appliances, road construction machinery, chemical machinery, food machinery, light industrial machinery, mining machinery, transportation machinery, construction machinery, building materials machinery, cement machinery, rubber machinery, water conservancy machinery and petroleum machinery |
| Advantages | 1. Produce strictly in accordance with ANSI or DIN standard dimension 2. Material: SCM 415 steel 3. Bore: Finished bore 4.Precision grade: DIN 5 to DIN 7 5. Surface treatment: Carburizing and Quenching 6. Module: From 1 to 4 7. Tooth: From Z15 to Z70 8.Meshing transmission, accurate transmission ratio, stable transmission and low noise. 9.It is applicable to a wide range of power and speed 10.High efficiency,long service life, safe and reliable operation 11.Low cost,need to professional equipment process |
Application
The High-Precision Spiral Hobbing Die-Cast Gear is a high-precision transmission gear manufactured using advanced spiral hobbing and die-casting technologies, ensuring exceptional performance in terms of both strength and wear resistance. Typically utilized in electric motor gear transmission systems, this gear effectively enhances power transmission efficiency, reduces noise levels, and extends service life.
