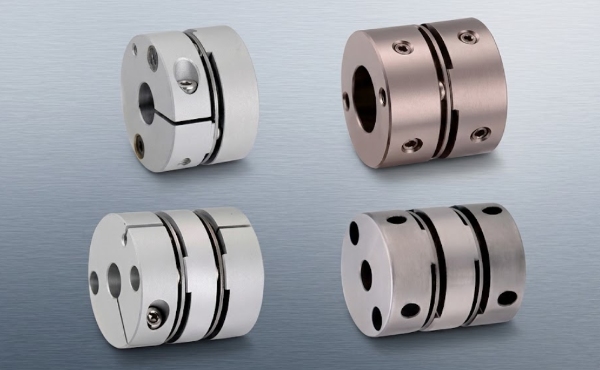

Compact Power Transmission: Engineering Small Shaft Couplers

In high-precision mechanical systems, the smallest components often determine the overall system performance. Among these, the small shaft coupler plays a pivotal role in ensuring accurate torque transmission between rotating shafts.

From servo motors to CNC equipment and robotics, the demand for compact, high-performance couplings has increased significantly. The high-flexibility screw clamping type double diaphragm coupling, engineered by iHF Group, represents a cutting-edge solution that combines precision, durability, and efficiency in a compact form factor.

Understanding Small Shaft Couplers

Small shaft couplers are essential components used to connect two shafts, allowing for the transfer of torque and rotational motion. They are particularly vital in applications where alignment is critical, and any misalignment can lead to significant operational issues. The High-Flexibility Screw Clamping Type Double Diaphragm Coupling is designed to address these challenges effectively.

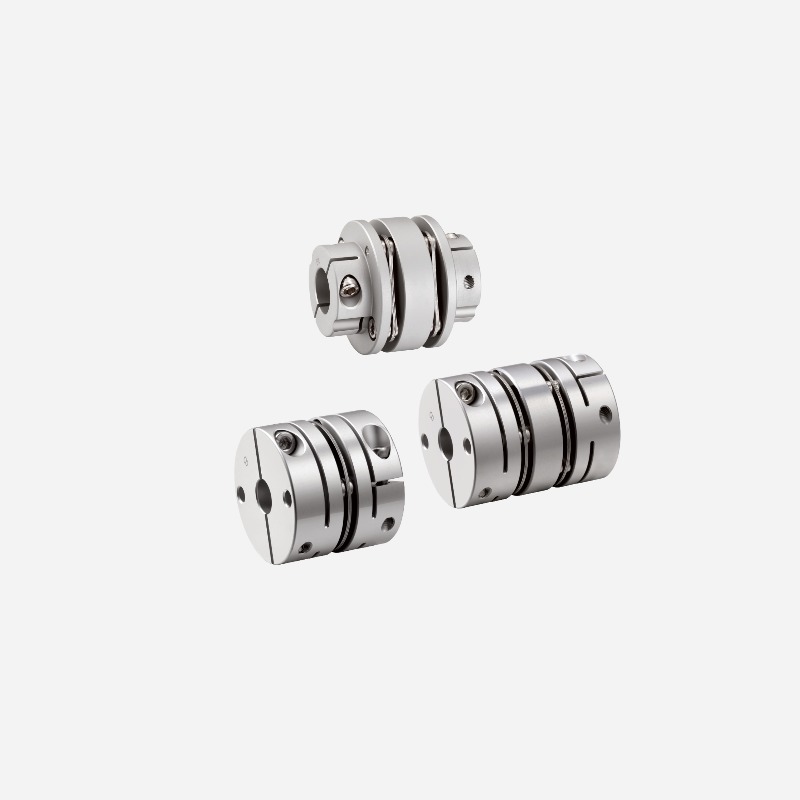

Key Features of the High-Flexibility Screw Clamping Type Double Diaphragm Coupling

● Aluminum Alloy Hub: The use of an aluminum alloy hub in this coupling not only reduces weight but also enhances durability. Aluminum is known for its excellent strength-to-weight ratio, making it an ideal choice for high-speed applications where minimizing inertia is crucial.

● 304 Stainless Steel Diaphragms: The incorporation of 304 stainless steel diaphragms ensures high torsional rigidity while providing a zero-backlash connection. This feature is vital for applications requiring precise control and minimal play, which can affect the overall performance of machinery.

● Ultra-Low Inertia: One of the standout characteristics of this coupling is its ultra-low inertia. This feature allows for rapid acceleration and deceleration, making it perfect for high-speed operations. The ability to respond quickly to changes in speed is essential in modern automation and robotics.

● Bidirectional Performance: The design of the High-Flexibility Screw Clamping Type Double Diaphragm Coupling ensures consistent performance in both directions. This bidirectional capability is particularly beneficial in applications where the direction of rotation may change frequently.

Applications of Small Shaft Couplers

The versatility of small shaft couplers, particularly the High-Flexibility Screw Clamping Type Double Diaphragm Coupling, makes them suitable for a wide range of applications:

● Robotics: In robotic systems, precise movement and control are paramount. The zero-backlash feature of this coupling allows for accurate positioning, which is essential for tasks such as assembly, welding, and painting.

● CNC Machinery: Computer Numerical Control (CNC) machines require components that can handle high speeds and maintain accuracy. The torsional rigidity and low inertia of this coupling make it an ideal choice for CNC applications.

● Medical Equipment: In the medical field, equipment must operate reliably and precisely. The High-Flexibility Screw Clamping Type Double Diaphragm Coupling can be used in devices such as MRI machines and surgical robots, where precision is critical.

● Industrial Automation: Many automated systems rely on small shaft couplers to connect motors to driven components. The consistent performance and durability of this coupling type ensure that production lines operate smoothly and efficiently.

视频

Why Choose iHF Group?

When it comes to sourcing high-quality small shaft couplers, iHF Group stands out as a trusted provider. With a commitment to innovation and quality, iHF Group offers a range of coupling solutions designed to meet the diverse needs of various industries. Their expertise in coupling technology ensures that customers receive products that not only meet but exceed performance expectations.

In conclusion, the High-Flexibility Screw Clamping Type Double Diaphragm Coupling represents a significant advancement in coupling technology. Its unique features, including an aluminum alloy hub, 304 stainless steel diaphragms, ultra-low inertia, and bidirectional performance, make it an ideal choice for high-speed applications across various industries. By integrating these couplings into your systems, you can enhance precision, improve efficiency, and ensure reliable operation. For those seeking top-tier coupling solutions, iHF Group is the go-to source for quality and innovation.
