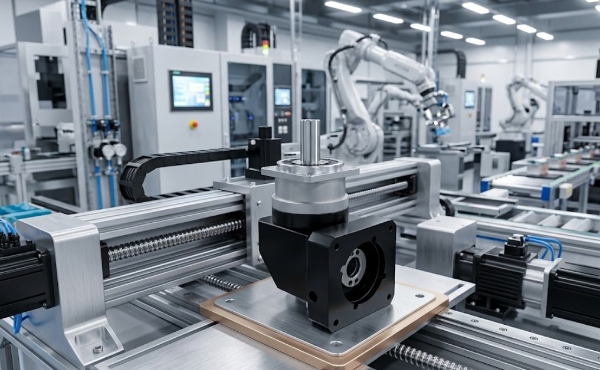

Precision at 90°: Unlocking High-Torque Efficiency with PAR Right Angle Servo Gearboxes

In advanced motion control systems, where space constraints and torque precision must coexist, the PAR Right Angle Servo Gearbox stands out as a highly engineered solution. Designed for 90-degree power transmission, this gearbox integrates spiral bevel gearing with planetary architecture to deliver exceptional efficiency, low noise, and high positional accuracy.

Manufacturers like iHF Group have refined this technology to meet the evolving requirements of CNC machinery, automation systems, and high-speed industrial applications.

What is a PAR Right Angle Servo Gearbox?

A PAR right angle servo gearbox is a compact transmission system that redirects motor output by 90 degrees while maintaining high torque density and precision. It combines:

● Spiral bevel gears for smooth angular transmission

● Planetary gear stages for torque multiplication and stability

● Rigid housing design for structural integrity under load

This hybrid configuration ensures both directional flexibility and mechanical efficiency, making it ideal for compact machine layouts.

Core Engineering Advantages

1. Precision 90° Power Transmission

At the heart of the system lies the spiral bevel gear mechanism, which enables:

● Smooth Transfer torque at a right angle

● Reduced vibration and noise

● High transmission efficiency compared to traditional bevel systems

This makes the gearbox particularly suitable for applications requiring quiet and stable motion, such as precision automation lines.

2. High-Speed Reliability with Double-Supported Planetary Cage

The double-supported planetary cage design enhances:

● Load distribution across multiple gear contacts

● Stability during high-speed operation

● Reduced wear and extended service life

This architecture ensures that the gearbox performs reliably even under demanding duty cycles.

3. Wide Size Range and Flexible Integration

The PAR series is available in a broad size spectrum (60–180), allowing engineers to:

● Select optimal configurations for torque and speed requirements

● Integrate with various motor types and coupling systems

● Adapt to different machine layouts without redesigning the entire system

This flexibility is critical for OEMs and system integrators working across multiple industries.

4. High Torque Output with Helical Gear Compatibility

When paired with helical gear systems, the PAR right angle servo gearbox delivers:

● Increased torque capacity

● Improved load-bearing performance

● Enhanced smoothness in motion transmission

This synergy enables consistent performance in heavy-duty and precision-critical environments.

5. Exceptional Accuracy and Performance Metrics

Performance specifications highlight the gearbox’s precision:

Gear Ratio Range: 3–100

Backlash Accuracy:

● P1: 3–5 arcmin

● P2: 5–8 arcmin

Such low backlash values are essential for applications requiring precise positioning and repeatability, including CNC machining and robotic systems.

Industrial Applications

◆ CNC Machinery

● Accurate positioning for cutting and milling operations

● Stable torque transmission under variable loads

● Compact design for space-constrained machine tools

◆ Packaging and Printing Equipment

● Smooth and quiet operation for high-speed lines

● Consistent motion control for precise alignment

● Reduced vibration for improved print quality

◆ Automation and Robotics

● High precision for repeatable motion tasks

● Compact structure for robotic joints and axes

● Reliable performance in continuous operation environments

iHF Group: Engineering Excellence in Motion Control

iHF Group has established itself as a trusted provider of high-performance transmission solutions. Their PAR Right Angle Servo Gearboxes are engineered with:

● Advanced gear manufacturing techniques ensuring precision and durability

● Optimized structural design for rigidity and compactness

● Strict quality control systems guaranteeing consistent performance

By focusing on both innovation and reliability, iHF Group delivers solutions that meet the rigorous demands of modern industry.

Selection Considerations for Engineers

When choosing a PAR right angle servo gearbox, engineers should evaluate:

◆ Load Requirements

Torque demand under peak and continuous operation

Compatibility with motor output

◆ Precision Needs

Required backlash level (P1 vs P2)

Positioning accuracy for the application

◆ Installation Constraints

Available mounting space

Shaft orientation and coupling options

◆ Operational Conditions

Speed requirements

Environmental factors such as temperature and dust

Selecting the right configuration ensures optimal performance and long-term reliability.

FAQ

Q1: What makes a PAR right angle servo gearbox different from standard gearboxes?

It combines spiral bevel and planetary gear systems to achieve high precision, compact design, and efficient 90-degree transmission.

Q2: Why is low backlash important?

Low backlash ensures accurate positioning and repeatability, which is critical in CNC and robotic applications.

Q3: Can this gearbox handle high-speed operations?

Yes, the double-supported planetary cage ensures stability and reliability even at high rotational speeds.

Q4: Is it suitable for heavy-duty applications?

Absolutely. When combined with helical gear systems, it provides high torque output and load capacity.

Q5: Why choose iHF Group for PAR gearboxes?

iHF Group offers precision-engineered, durable, and customizable gearbox solutions tailored to demanding industrial applications.

Conclusion

The PAR Right Angle Servo Gearbox represents a high-performance solution for industries requiring precise, efficient, and compact power transmission. With its advanced gear architecture, low backlash, and flexible integration, it significantly enhances system performance.

Backed by the engineering expertise of iHF Group, this gearbox is a reliable choice for manufacturers aiming to optimize motion control, improve efficiency, and maintain consistent operational quality.
