Unlocking Efficiency: The Advantages of Newgear Spur Gearboxes PRN for Modern Applications

In industrial motion control systems, achieving a balance between precision, compact design, and cost efficiency is a constant engineering challenge. The Newgear Spur Gearboxes PRN series offers an optimized solution by combining standardized design, flexible integration, and reliable performance.

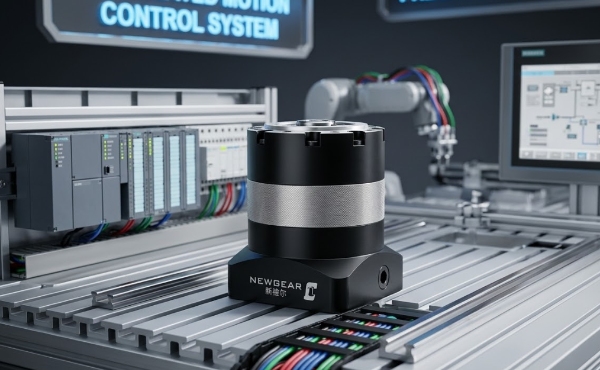

What Is a Newgear Spur Gearbox PRN?

A Newgear spur gearbox PRN series for compact power transmission is a mechanical device designed to reduce input speed while increasing torque through spur gear engagement. The PRN series is specifically engineered for applications requiring:

● Compact structural design

● High compatibility with various motor inputs

● Cost-effective performance

● Reliable and stable torque transmission

Structural Design and Engineering Principles

The PRN hollow bore spur gearbox for industrial automation systems features a carefully engineered architecture:

◆ Hollow Bore Output with Circular Flange

The gearbox includes a hollow shaft with a circular flange output, enabling:

● Direct mounting onto driven shafts

● Simplified installation

● Reduced need for additional couplings

◆ Reverse-Threaded Connection

The reverse-threaded assembly mechanism ensures:

● Secure mechanical locking

● Resistance to loosening under vibration

● Enhanced operational safety

◆ Single Cantilever Design

The single-cantilever spur gear structure provides:

● Reduced weight

● Compact footprint

● Simplified internal configuration

Core Technical Features

1. Standardized Dimensions for Compatibility

The standardized PRN spur gearbox for multi-platform integration supports:

● Wide range of motor connections

● Easy replacement and upgrade

● High interchangeability

2. Spur Gear Drive Efficiency

The high-efficiency spur gear reducer for industrial machinery ensures:

● Direct power transmission

● Minimal energy loss

● Stable and predictable performance

3. Adjustable Input Shaft Configuration

The customizable input shaft gearbox for flexible applications allows:

● Machining with keyways as required

● Adaptation to different drive systems

4. Controlled Backlash Performance

With a backlash range of 8–16 arc-min, the gearbox provides:

● Reliable positioning accuracy

● Suitable performance for general automation tasks

● Balanced cost vs. precision ratio

5. Compact and Cost-Effective Design

The compact spur gearbox for space-constrained environments reduces:

● Installation space requirements

● Overall system cost

● Maintenance complexity

视频

Application Scenarios

◆ Automation and Robotics

Newgear spur gearboxes PRN for automation systems provide stable torque and compact integration.

◆ Conveyor Systems

Ideal for material handling systems requiring consistent speed reduction.

◆ Packaging Machinery

Widely used in packaging lines for precise motion control and synchronization.

◆ Light Industrial Equipment

Suitable for applications where cost efficiency and reliability are critical.

iHF Group: Reliable Gear Solutions Provider

As a professional manufacturer, iHF Group specializes in Newgear spur gearbox PRN solutions for industrial applications, delivering products that combine engineering precision with practical performance.

Key Strengths of iHF Group:

● Advanced manufacturing processes ensuring high-quality gear systems

● Flexible customization options for diverse applications

● Strong technical expertise in motion control solutions

● Reliable global supply and after-sales support

● Focus on cost-effective and durable products

By integrating innovation with industrial experience, iHF Group ensures optimal gearbox performance across various sectors.

Conclusion

The Newgear Spur Gearboxes PRN series offers an ideal balance of compact design, compatibility, and cost efficiency. With features such as hollow bore output, standardized dimensions, and controlled backlash, these gearboxes are well-suited for a wide range of industrial applications.

With advanced solutions from iHF Group, businesses can achieve reliable motion control, reduced operational costs, and enhanced system performance.
