Single-Shaft Output Right-Angle Speed Reducer – PZH Series
Speed ratio range: 2/3/5
Accuracy range: 3~6 arcmin
Send Inquiry Now
Position: Home > Product Center > Planetary Gearbox > Precision Right-Angle Reducer > Single-Hole Output Right-Angle Gear Reducer - PZB Series

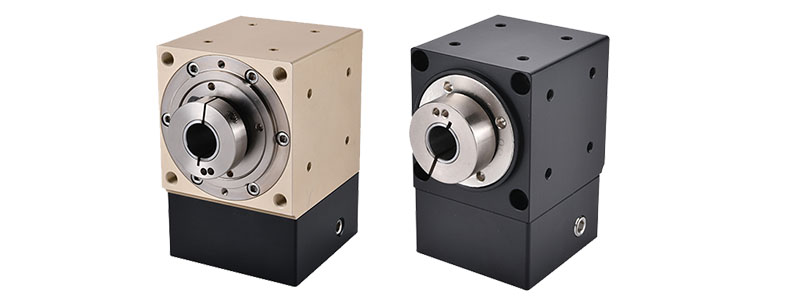

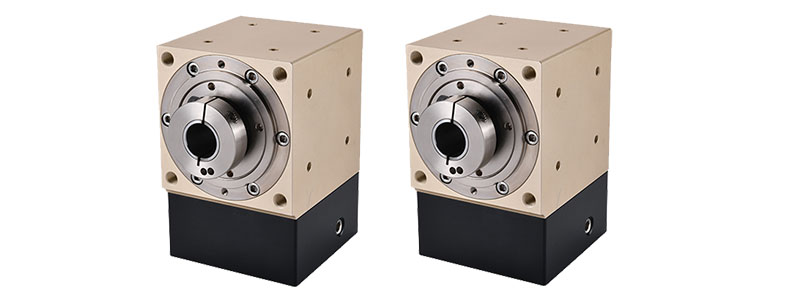

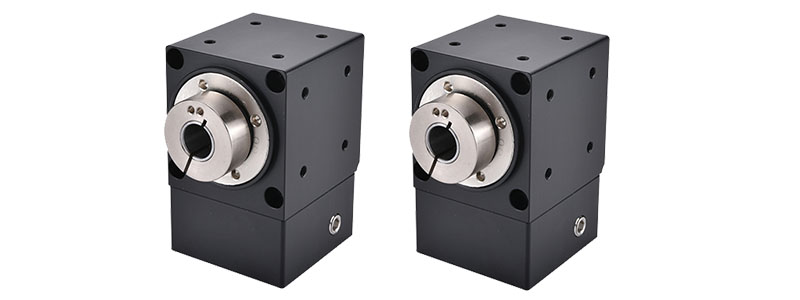

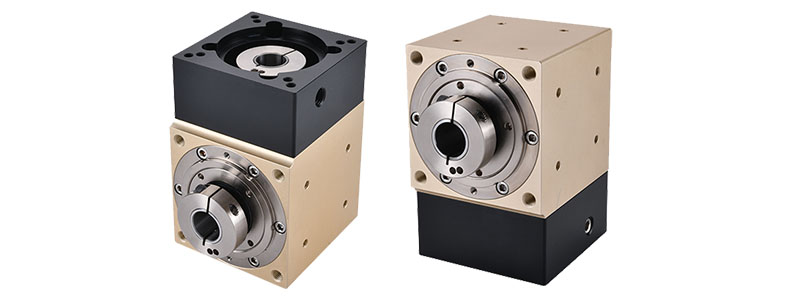

Single-Hole Output Right-Angle Gear Reducer - PZB Series
PZB Series Right-Angle Speed Reducer : The use of helical bevel gears allows the motor to be mounted at a 90-degree angle, saving installation space.
Productfeatures:
1.Size range: 42/60/90
2. Gear ratio range: 2/3/5
3. Accuracy range: 3–6 arcmin
4. High precision, low noise, high rigidity
The precision model features minimal backlash and precise positioning; the transmission gears are precision-engineered to meet the quality requirements for precise transmission, low noise, and high rigidity.
5. Compact, space-saving design
Features helical bevel gears, allowing the motor to be mounted at a 90-degree angle to save installation space.
