Compact Powerhouses: Exploring the Advantages of Worm Gears in Precision Engineering

In modern mechanical engineering, where efficiency, compactness, and stability define system performance, the Machinery Worm Wheel Worm Gear remains one of the most reliable transmission solutions.

Despite advancements in planetary gear systems and direct-drive technologies, worm gear mechanisms continue to be widely used in industrial automation, robotics, lifting equipment, and precision machinery due to their unique mechanical advantages.

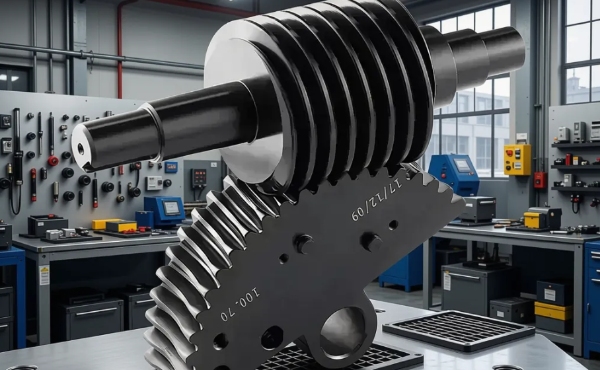

Working Principle of Worm Wheel and Worm Gear Systems

A worm gear system consists of two main components:

● Worm (screw-like shaft)

● Worm wheel (gear wheel)

When the worm rotates, it drives the worm wheel at a perpendicular angle, typically at a significantly reduced speed but with greatly increased torque.

This simple yet highly effective mechanism enables precise motion control in compact mechanical systems.

Core Performance Advantages in Industrial Applications

High Torque Multiplication with Compact Structure

One of the most important benefits of the machinery worm wheel worm gear system is its ability to deliver high torque output within a compact design.

This makes it ideal for:

● Industrial automation equipment

● Packaging machinery

● Lifting and hoisting systems

● Robotics actuators

Even in limited installation spaces, worm gear systems provide powerful mechanical advantage without increasing system size.

Smooth and Quiet Transmission

Unlike spur gears that often produce noticeable vibration and noise, worm gear systems operate with a sliding contact mechanism.

This results in:

● Reduced vibration

● Lower operational noise

● Improved mechanical stability

In precision environments such as medical equipment or laboratory automation, this silent operation is a critical advantage.

Self-Locking Capability in Certain Configurations

One of the most valuable features of a self-locking worm wheel gear system is its ability to prevent reverse motion.

When designed with appropriate lead angles, the worm wheel cannot drive the worm backward. This provides:

● Safety in lifting systems

● Load holding without brakes

● Mechanical stability in static positions

This property is widely used in elevators, winches, and industrial lifting platforms.

Stable Speed Reduction for Precision Machinery

Worm gear systems are highly effective for controlled speed reduction.

They are commonly used in:

● CNC machinery

● Conveyor systems

● Indexing tables

● Precision positioning equipment

The ability to achieve large reduction ratios in a single stage makes them ideal for applications requiring fine motion control.

Material Engineering and Manufacturing Precision

High-performance worm gear systems rely heavily on material selection and machining accuracy.

Typical material combinations include:

● Hardened steel worm + bronze worm wheel

● Alloy steel + wear-resistant composite materials

Precision machining ensures:

● Accurate tooth engagement

● Reduced friction loss

● Extended service life

Industrial Applications of Machinery Worm Wheel Worm Gear Systems

◆ Automation and Robotics

Used in robotic arms and actuators requiring controlled movement and torque stability.

◆ Heavy Machinery

Found in cranes, lifting systems, and industrial winches where self-locking safety is essential.

◆ Textile and Packaging Equipment

Ensures synchronized motion and stable speed control in high-speed production lines.

●Medical and Laboratory Devices

Provides silent and precise motion for sensitive equipment.

iHF Group: Precision Gear Manufacturing Expertise

iHF Group is a specialized manufacturer in high-precision mechanical transmission components, focusing on advanced gear systems including worm wheel and worm gear assemblies.

The company emphasizes:

● High-precision CNC gear machining

● Custom-designed worm gear solutions

● Industrial-grade durability standards

● Application-specific transmission engineering

With strong engineering capability, iHF Group provides machinery worm wheel worm gear systems tailored for automation, robotics, and heavy-duty industrial equipment, ensuring performance stability and long service life.

Engineering Challenges and Optimization Factors

When designing worm gear systems, engineers must consider:

● Lead angle optimization

● Lubrication efficiency

● Material hardness compatibility

● Heat dissipation control

Improper design may result in:

● Excessive wear

● Energy loss

Reduced transmission efficiency

Therefore, precision manufacturing and correct system design are critical.

Frequently Asked Questions (FAQ)

Q1: Why choose a worm gear instead of a spur gear?

Worm gears provide higher torque reduction ratios, quieter operation, and self-locking capability, making them ideal for precision and safety-critical systems.

Q2: Are worm wheel worm gear systems efficient?

While they may have slightly lower efficiency due to sliding friction, modern lubrication and material improvements significantly enhance performance.

Q3: Where are worm gear systems most commonly used?

They are widely used in industrial machinery, robotics, conveyors, lifting systems, and precision positioning equipment.

Q4: Can worm gears handle heavy loads?

Yes. Properly designed worm gear systems can handle high torque loads while maintaining stability and compact size.

Conclusion: Why Worm Gear Systems Remain Essential

The Machinery Worm Wheel Worm Gear system continues to play a vital role in modern mechanical engineering due to its unmatched combination of torque multiplication, compact structure, smooth operation, and self-locking safety.

As industries demand more compact yet powerful mechanical solutions, manufacturers like iHF Group continue to advance worm gear technology, delivering precision-engineered systems that support global industrial applications.
