From Microns to Mastery: High-Precision Motion with iHF Cross Roller Slides

In high-precision engineering fields such as optics, semiconductor manufacturing, and metrology, the demand for ultra-accurate and stable linear motion systems continues to grow. The iHF Cross Roller Slide represents a sophisticated solution designed to deliver exceptional positioning accuracy, smooth motion, and structural stability. Developed by iHF Group, this advanced linear motion system integrates cross-arranged rollers with precision V-groove guides, enabling superior performance compared to traditional sliding mechanisms.

1. What Is a Cross Roller Slide?

A high precision cross roller slide linear stage is a mechanical positioning platform that uses cylindrical rollers arranged orthogonally (crosswise) between two V-shaped guideways.

◆ Core Design Concept:

● Rollers are positioned at 90° angles

● Rollers contact V-groove surfaces simultaneously

● Load is distributed evenly across multiple contact points

This configuration allows the cross roller linear slide for precision positioning to achieve extremely smooth motion with minimal friction and high rigidity.

2. Structural Design and Working Principle

The cross roller slide with V-groove guide system operates based on rolling contact rather than sliding friction.

Key Structural Elements:

◆ Cross-Arranged Rollers

Alternating orientation improves load distribution

Supports multi-directional loads (radial, axial, moment)

◆ V-Groove Guide Rails

Precision-ground surfaces

Ensures accurate linear guidance

◆ Preload Mechanism

Eliminates clearance between rollers and guideways

Enhances rigidity and positioning accuracy

iHF Group manufactures high stability cross roller slides for industrial applications, ensuring consistent performance under demanding conditions.

3. Drive Mechanisms and Product Variants

The iHF Cross Roller Slide system offers multiple drive configurations to meet different precision requirements.

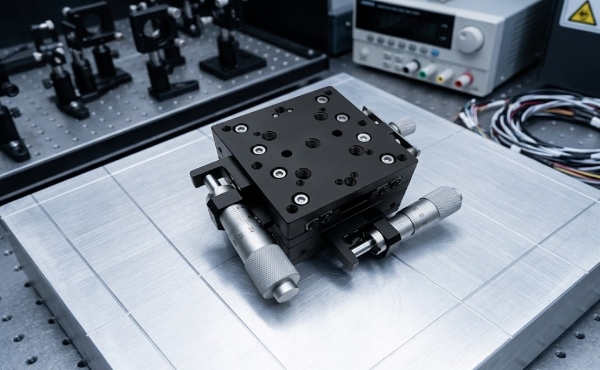

◆ Micrometer Head Feed Cross Roller Slide

Minimum reading: 0.01 mm

Suitable for quantitative manual adjustments

Ideal for laboratory and optical alignment tasks

◆ Lead Screw Driven Cross Roller Slide

Designed for fine feed applications

Smooth and stable motion control

Not suitable for numerical readout due to lack of scale

◆ Micrometer Head Driven High-Resolution Slide

Resolution up to 0.5 μm

Enables ultra-fine positioning

Suitable for high-precision measurement systems

These options make the custom cross roller slide manufacturer solution adaptable to various industrial needs.

4. Multi-Axis Configuration Options

Modern applications often require multi-dimensional motion. The multi-axis cross roller slide system supports various configurations:

● X-Axis: Linear motion in a single direction

● Y-Axis: Perpendicular linear movement

● XZ-Axis: Combined horizontal and vertical motion

● XYZ-Axis: Full three-dimensional positioning

iHF Group provides modular cross roller slide systems for multi-axis positioning, enabling flexible system integration.

视频

5. Performance Advantages

The high accuracy cross roller slide stage offers several technical benefits:

◆ Exceptional Positioning Accuracy

Crossed roller design minimizes deviation and ensures repeatability.

◆ High Rigidity

Preloaded rollers eliminate backlash and improve structural stiffness.

◆ Smooth Motion

Rolling contact reduces friction and stick-slip effects.

◆ Compact Design

High load capacity in a small footprint.

These features make the precision cross roller linear stage for automation and optics highly effective in demanding environments.

6. Application Scenarios

The industrial cross roller slide supplier supports a wide range of high-precision applications:

◆ Optical Instruments

Lens alignment and calibration

◆ Semiconductor Equipment

Wafer positioning and inspection

◆ Metrology Systems

High-precision measurement platforms

◆ Medical Devices

Fine positioning in diagnostic equipment

◆ Automation and Robotics

Precision assembly and inspection systems

iHF Group delivers custom cross roller slide solutions tailored to these industries.

7. Installation and Alignment Considerations

To fully utilize a precision cross roller slide system, proper installation is essential.

◆ Best Practices:

● Ensure flat and rigid mounting surfaces

● Avoid overloading beyond specified capacity

● Maintain clean operating conditions

● Use appropriate fastening torque

These practices ensure optimal performance of long life cross roller slide systems.

8. Maintenance and Reliability

A durable cross roller slide manufacturer must emphasize long-term reliability.

◆ Maintenance Guidelines:

● Periodic lubrication of rollers and guideways

● Inspection for contamination or debris

● Regular accuracy verification

iHF Group designs low maintenance cross roller slide systems, reducing operational downtime.

9. Why Choose iHF Group

As a trusted supplier, iHF Group specializes in high precision cross roller slide production.

◆ Key Strengths:

● Advanced manufacturing technology

● Strict quality control systems

● Comprehensive product range

● Global supply capability

Their expertise ensures reliable performance in critical positioning and motion control applications.

10. Frequently Asked Questions (FAQ)

Q1: What is the main advantage of a cross roller slide?

It offers high precision, smooth motion, and excellent rigidity.

Q2: What is the difference between micrometer head feed and lead screw driven?

Micrometer head provides quantitative adjustment, while lead screw offers smooth continuous motion without scale.

Q3: Can cross roller slides be used in multi-axis systems?

Yes, they support X, Y, XZ, and XYZ configurations.

Q4: What industries benefit most from cross roller slides?

Optics, semiconductors, metrology, medical devices, and automation.

Conclusion

The iHF Cross Roller Slide is a high-performance solution for precision linear motion, offering unmatched accuracy, stability, and flexibility. Its innovative design, combined with multiple drive options and multi-axis configurations, makes it indispensable in advanced engineering applications.

With strong technical expertise and manufacturing capabilities, iHF Group continues to deliver reliable and customizable cross roller slide systems for global industries.
