Navigating Micro-Yield Limits: High-Load Ball Screw Optimization in Next-Gen CNCs

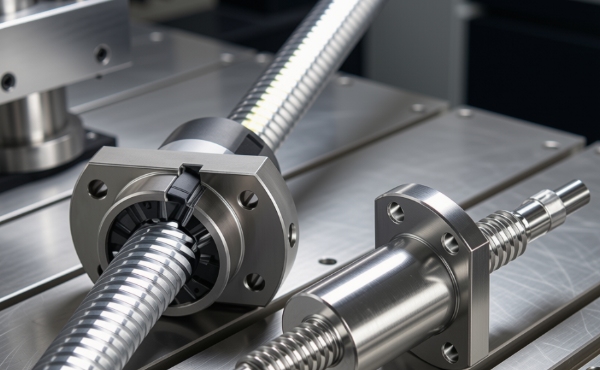

In the realm of high-precision sub-micron machining and multi-axis synchronous automation, the selection of linear transmission elements dictates the upper limits of system throughput and tracking fidelity. While alternative linear motion technologies have emerged, the precision ball screw remains the foundational mechanical component for transforming rotary motion into high-rigidity linear displacement. However, as modern industrial demands push velocity envelopes beyond 60 m/min and demand acceleration rates exceeding 1.5g, engineering a system that mitigates mechanical resonance and velocity ripple requires a deep understanding of internal kinematics.

For design engineers and system integrators sourcing from premier manufacturers like iHF Group, achieving long-term tracking accuracy is not merely about selecting a nominal diameter and lead. It requires a granular analysis of ball circulation dynamics, preload degradation mechanics, and thermal stabilization strategies.

Mechanical Rigidity and Preload Optimization under Dynamic Loads

To maintain systemic stiffness under high acceleration, eliminating axial backlash is a non-negotiable prerequisite. Precision ball screw manufacturers typically achieve zero-backlash through controlled internal preload techniques. The mechanism relies on generating a calculated elastic deformation between the bearing balls and the raceway profiles, typically utilizing an oversized ball selection (single-nut preload) or a dedicated spacer between two distinct nut bodies (double-nut preload).

When specifying a high-load ball screw for heavy-duty CNC milling centers or plastic injection molding machinery, the choice of preload type directly impacts both static rigidity and thermal wear profiles:

● Four-Point Contact (Single Nut): Offers a compact footprint and excellent radial load handling, but exhibits higher sensitivity to differential slip, which can accelerate localized heat generation at elevated speeds.

● Two-Point Contact (Double Nut): Provides superior high-speed performance. By separating the load zones, it minimizes internal friction and allows the ball screw assembly to maintain structural stiffness without inducing premature material fatigue.

iHF Group engineers custom internal geometry profiles that optimize the contact angle (typically calibrated to 45°) under dynamic load shifting. This specific geometric tuning ensures that even under severe axial reversal stresses, the contact stress distribution remains within the elastic limits of the high-carbon chromium bearing steel (SUJ2), preventing micro-pitting and sub-surface delamination.

Thermal Kinematics: Managing Friction Heat in High-Duty Cycles

The primary limiting factor in high-speed linear positioning accuracy is thermal expansion. As a precision ball screw operates under continuous duty cycles, the frictional torque generated within the nut assembly elevates the shaft temperature. Because the thermal expansion coefficient of steel is approximately 11.7 × 10-6/°C, a modest 5°C temperature differential across a 1-meter shaft can induce a positioning error of nearly 60 μm-completely undermining a system calibrated for micron-level tolerance.

To neutralize this, high-performance implementations rely on a two-pronged engineering approach:

1. Advanced Lubrication Dynamics

The choice between high-viscosity synthetic grease and continuous oil-air lubrication systems depends entirely on the dm n factor (where dm is the ball pitch circle diameter in mm, and n is the rotational speed in rpm). For systems exceeding a dm n value of 70,000, forced oil lubrication with integrated cooling channels becomes critical to carry away localized thermal energy from the nut interface.

2. Mechanical Axial Pre-Tensioning

During machine tool assembly, the ball screw shaft is intentionally stretched via precision ground locknuts at the support bearings. By applying a predetermined tensile load equivalent to the anticipated thermal expansion force, the physical growth of the shaft is effectively absorbed by the reduction in structural tension, maintaining a stable pitch distance across the entire travel stroke.

Overcoming Circulation Resonance and Velocity Ripple

At the micro-scale, linear motion is rarely perfectly linear. As individual bearing balls exit the loading zone and re-enter the recirculation path via return tubes or deflector caps, subtle changes in internal forces cause minor fluctuations in operational torque. This phenomenon, known as velocity ripple, can induce high-frequency micro-vibrations that directly degrade surface finish quality in precision grinding and optical machining applications.

To combat this, iHF Group utilizes advanced computerized grinding processes to finish the ball track profile with precise geometric continuity. By implementing a tangential lift-off recirculation design, the balls are lifted smoothly out of the Gothic-arch groove rather than colliding abruptly with the return mechanism. This decreases acoustic noise by up to 6 dB and significantly flattens the torque ripple curve, delivering exceptionally smooth, deterministic linear movement.

Conclusion

The ball screw remains a foundational component in modern industrial motion systems, enabling high-precision, high-efficiency linear movement across a wide range of applications. Its combination of mechanical efficiency, load capacity, and positional accuracy makes it indispensable in automation, robotics, and precision engineering.

With advanced manufacturing capabilities and application-focused engineering, iHF Group delivers ball screw solutions that support the evolving demands of global industrial automation.
