Strength Meets Accuracy: High Precision Forged Steel Spline Spur Shafts Explained

Apr. 22, 2026 Views:8

In modern mechanical engineering, the demand for high torque transmission, stable rotation, and long-term durability has led to the widespread adoption of high precision spline forging steel spur shafts. These components are critical in ensuring efficient power delivery across automotive systems, heavy machinery, robotics, and industrial gearboxes.

Unlike conventional shafts, the high precision spline forging steel spur shaft integrates forged steel strength with precision spline geometry, enabling it to withstand extreme mechanical stress while maintaining exact alignment under high-speed operation.


What Is a High Precision Spline Forging Steel Spur Shaft?

A high precision spline forging steel spur shaft is a transmission component that combines:

● Forged steel core strength

● Spline engagement structure

● Precision-machined spur gear profile

High-Strength Forged Steel: The Foundation of Reliability

The performance of a forged steel spline spur shaft begins with material selection. High-quality forged steel is used to ensure:

● Mechanical Advantages

Exceptional tensile strength

High fatigue resistance under cyclic loads

Superior impact resistance in heavy-duty applications

● Environmental Resistance

Corrosion-resistant formulations suitable for humid or chemically aggressive environments

Stable performance in high-temperature conditions

This makes the shaft suitable for continuous operation in demanding industrial environments, where failure is not an option.


Precision Manufacturing: CNC Machining Excellence

The defining feature of a high precision spline forging steel spur shaft is its manufacturing accuracy.

At iHF Group, advanced CNC machining technology is applied to ensure:

Dimensional Accuracy

Every shaft is machined with tight tolerances, ensuring perfect alignment within transmission assemblies.

Surface Finish Optimization

A refined surface reduces:

● Friction losses

● Heat generation

● Wear between mating components

Spline Profile Precision

The spline geometry is engineered to guarantee:

● Stable torque transmission

● Reduced backlash

● Smooth engagement with mating components

This level of precision is essential in high-speed gear transmission systems.

Forging Technology: Strength Beyond Machining

Unlike purely machined shafts, the spline forging steel spur shaft benefits from a forging process that enhances internal grain structure.

Forging Benefits

● Improved internal density

● Enhanced structural integrity

● Greater resistance to deformation under load

When combined with CNC finishing, the result is a component that delivers both strength and precision—a critical requirement for modern engineering systems.


Performance Advantages in Industrial Applications

● High Load Capacity

The forged steel structure allows the shaft to handle extreme torque loads without failure.

● High-Speed Stability

Precision balancing and machining ensure smooth operation even at high rotational speeds.

● Reduced Noise and Vibration

Accurate spline engagement minimizes mechanical vibration, improving system stability.

● Extended Service Life

Wear-resistant materials and precision finishing significantly extend operational lifespan.


Key Application Areas

● Automotive Industry

Used in transmissions, differentials, and drivetrain systems requiring high torque transfer.

● Heavy Machinery

Ideal for construction equipment, mining machinery, and industrial presses.

● Robotics and Automation

Ensures precise motion control and synchronization in robotic systems.

● Industrial Gear Systems

Provides reliable power transmission in gearboxes and mechanical drive units.

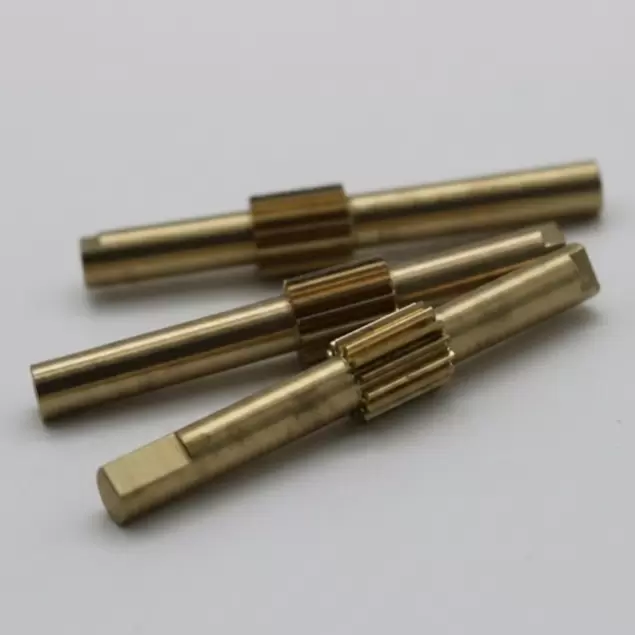

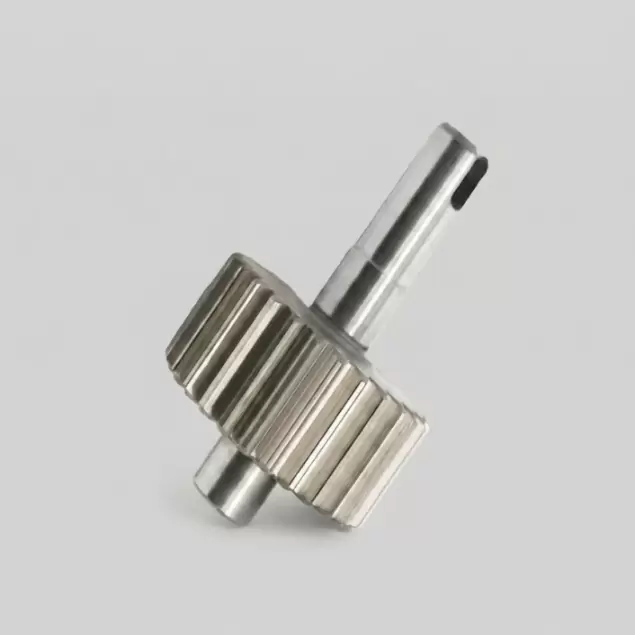

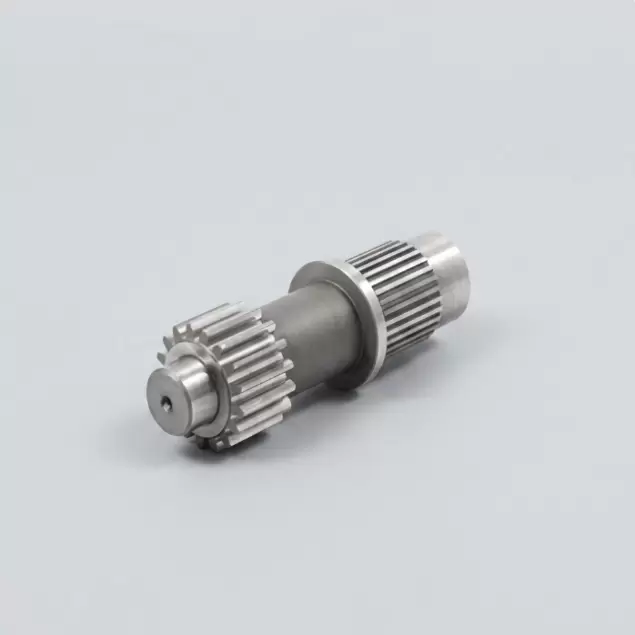

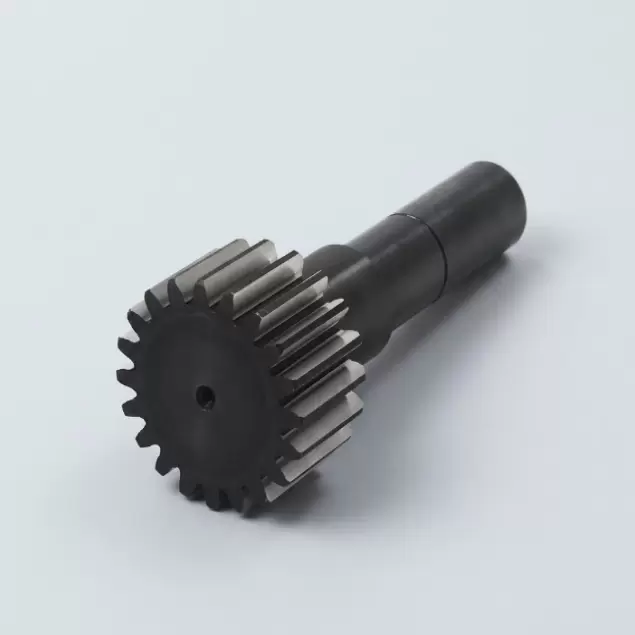

High Precision Spline Forging Steel Spur CNC Machining Strength Stainless Aluminum Alloy Gear ShaftHigh Precision Spline Forging Steel Spur CNC Machining Strength Stainless Aluminum Alloy Gear Shaft

Design Parameters Engineers Must Consider

When selecting a high precision spline forging steel spur shaft, key design factors include:

● Spline specification (involute or straight-sided)

● Module and pitch accuracy

● Material grade (forged alloy steel selection)

● Heat treatment process (carburizing, quenching, tempering)

● Load torque rating and safety factor

Proper selection ensures optimal system performance and durability.


Heat Treatment and Surface Engineering

To enhance performance, shafts typically undergo:

Carburizing & Quenching

Increases surface hardness

Improves wear resistance

Tempering

Enhances toughness

Reduces brittleness

Optional Surface Coatings

Anti-corrosion treatments for harsh environments

Wear-resistant coatings for extended service life

These processes ensure the high precision spline forging steel spur shaft for industrial use maintains stability under long-term stress.


Why iHF Group Is a Trusted Manufacturer

iHF Group specializes in the production of high precision spline forging steel spur shafts for global industrial applications. Their strengths include:

● Integrated forging + CNC machining capability

● Strict dimensional and quality control systems

● Custom engineering support for OEM requirements

● Scalable production for both small and large batches

By combining metallurgy expertise with precision engineering, iHF Group delivers high-performance transmission components trusted across industries.


Maintenance and Operational Recommendations

To maximize performance:

● Ensure proper lubrication in spline interfaces

● Regularly inspect for wear or misalignment

● Maintain clean operating conditions

● Avoid overloading beyond rated torque

These practices significantly improve system reliability and service life.


Conclusion

The high precision spline forging steel spur shaft represents the perfect integration of material science, forging strength, and CNC precision engineering. It is not merely a mechanical part—it is a critical enabler of efficient, stable, and high-performance power transmission systems.

With advanced manufacturing capabilities, iHF Group continues to deliver solutions that meet the growing demands of modern industry, ensuring reliability where it matters most.
