Efficiency Without Compromise: The Power of Straight-Tooth Gear Systems

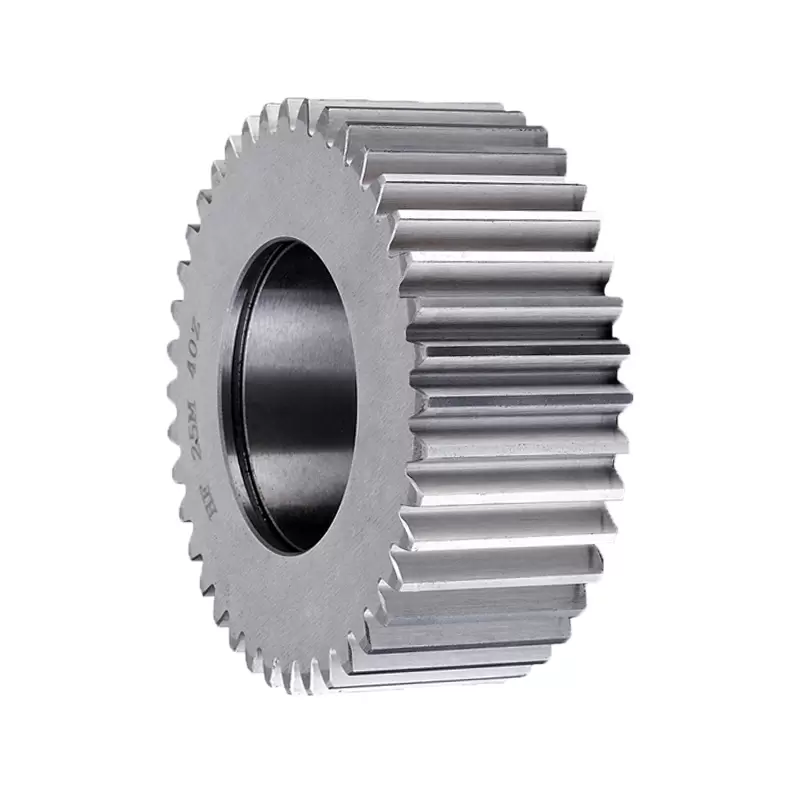

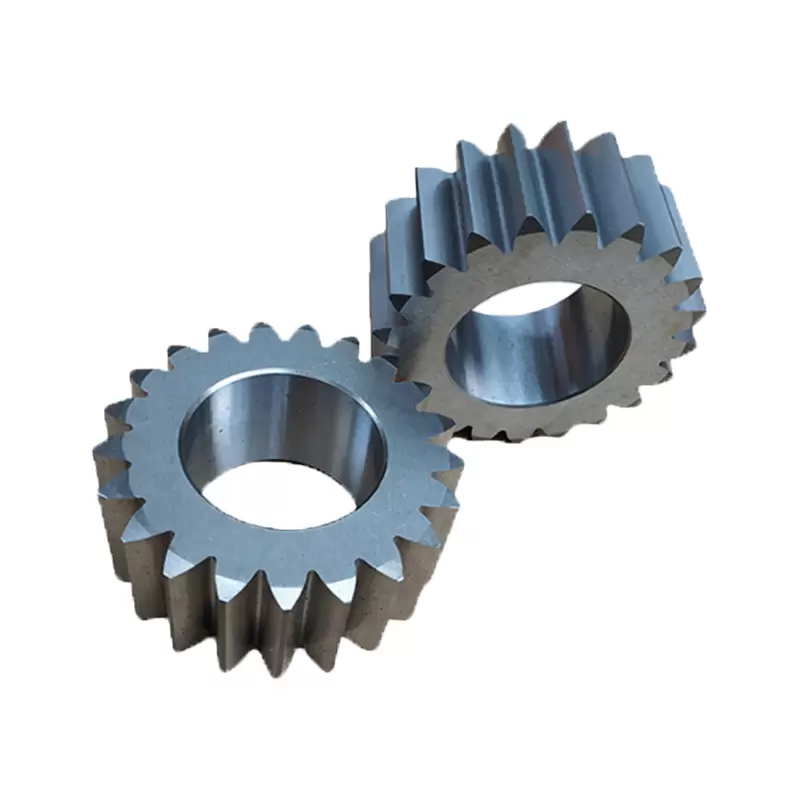

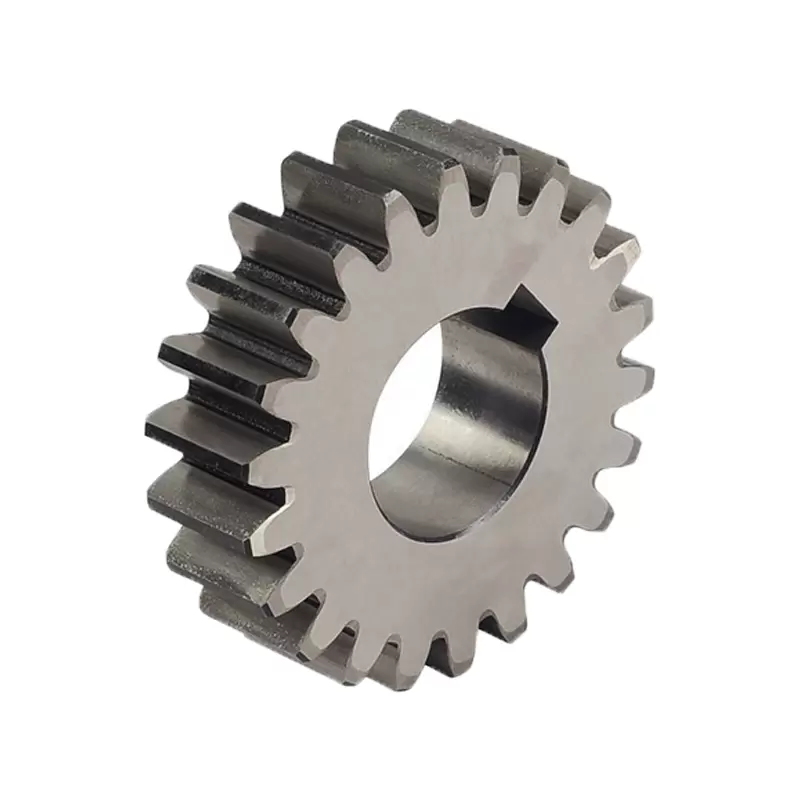

Despite the evolution of complex gear systems, high-precision blackened straight-tooth gears (commonly referred to as spur gears) remain foundational in mechanical engineering. Their simplicity, reliability, and efficiency make them indispensable across industries ranging from machine tools to robotics and automotive systems.

Designed to transmit motion between parallel shafts, these gears ensure constant transmission ratios, minimal energy loss, and high synchronization accuracy—all critical in precision-driven applications.

Working Principle: Precision Through Simplicity

● A high-precision straight-tooth gear drive system operates through the direct meshing of a driving gear and a driven gear. Unlike helical gears, straight-tooth gears:

● Generate no axial thrust (zero axial force)

● Provide pure rolling and sliding contact along the tooth profile

● Maintain high mechanical efficiency

This makes them particularly suitable for systems where alignment stability and predictable load behavior are required.

Why Blackened Straight-Tooth Gears? Surface Engineering Matters

The “blackened” finish in blackened high-precision spur gears is not merely cosmetic—it is a functional surface treatment that enhances performance.

Key Benefits of Blackening Treatment

● Improved corrosion resistance

● Reduced surface oxidation

● Enhanced wear resistance under moderate loads

● Better lubrication retention

For industrial environments exposed to humidity or contaminants, black oxide-treated straight gears offer a cost-effective durability upgrade.

Precision Standards: Understanding Gear Accuracy Grades

The performance of a precision straight-tooth gear is defined by its manufacturing accuracy. According to GB/T 10095 or ISO 1328, gear precision is classified from Grade 0 (highest) to Grade 12 (lowest).

Common Industrial Grades

● Grade 6–8: Standard industrial applications

● Grade 3–5: High-precision systems (e.g., robotics, CNC machinery)

Advanced processes such as gear grinding enable ultra-high precision gears (Grade 3–4), ensuring minimal transmission error and optimal synchronization.

Manufacturing Technologies: From Rough Cutting to Ultra-Precision

The production of high-precision blackened straight-tooth gears involves multiple machining stages:

Primary Processes

● Gear Hobbing – Efficient for mass production

● Gear Shaping – Suitable for internal or complex gears

● Gear Shaving – Improves surface finish and accuracy

● Gear Grinding – Achieves the highest precision levels

At iHF Group, advanced CNC systems and strict quality control protocols ensure consistent high-precision gear manufacturing, meeting global industrial standards.

Material Selection & Heat Treatment: Engineering for Performance

Choosing the right material is critical for durability and load capacity.

Common Materials

● 40Cr – High strength and toughness

● 20CrMnTi – Excellent carburizing properties

Heat Treatment Options

● Carburizing and quenching – Enhances surface hardness and wear resistance

● Nitriding – Improves fatigue strength and corrosion resistance

These treatments ensure that industrial straight-tooth gears can withstand heavy loads and prolonged operation.

Design Parameters: What Engineers Must Consider

When specifying a custom high-precision spur gear, the following parameters are critical:

● Module (m) – Determines gear size and load capacity

● Number of teeth (z) – Affects transmission ratio

● Pressure angle (typically 20°) – Influences load distribution

● Tooth width (b) – Impacts torque transmission

● Backlash tolerance – Ensures smooth operation

A well-optimized design ensures maximum efficiency and minimal wear.

Key Applications Across Industries

Machine Tools

High-precision gears ensure accurate positioning and smooth motion in CNC systems.

Automotive Systems

Used in transmissions and auxiliary systems requiring reliable power transfer.

Robotics

Enable precise synchronization in robotic arms and automation systems.

Instrumentation

Provide stable and accurate motion control in measurement devices.

Advantages of High-Precision Blackened Straight-Tooth Gears

✔ High Efficiency – Minimal energy loss during transmission

✔ Stable Performance – Constant transmission ratio

✔ No Axial Load – Simplifies bearing design

✔ Easy Manufacturing – Cost-effective production

✔ Wide Adaptability – Suitable for diverse applications

These benefits make blackened spur gears for industrial machinery one of the most practical and reliable gear solutions available.

Why Choose iHF Group as Your Gear Partner

iHF Group is a trusted manufacturer specializing in high-precision blackened straight-tooth gears and advanced gear components. Their capabilities include:

● Custom gear design and engineering support

● High-precision CNC machining and grinding

● Strict adherence to ISO and GB standards

● Flexible production for small and large batches

By combining technical expertise with manufacturing excellence, iHF Group delivers gear solutions that meet demanding industrial requirements.

Selection Tips: Matching the Right Gear to Your Application

To ensure optimal performance:

● Choose higher precision grades for high-speed or high-accuracy systems

● Select appropriate heat treatment based on load conditions

● Consider environmental factors (corrosion, temperature)

● Ensure proper alignment and lubrication

Proper selection reduces maintenance costs and extends equipment lifespan.

Conclusion

The high-precision blackened straight-tooth gear remains a cornerstone of modern mechanical systems due to its simplicity, efficiency, and reliability. With advanced manufacturing processes and optimized material treatments, these gears deliver exceptional performance across a wide range of industries.

Partnering with iHF Group ensures access to precision-engineered gear solutions that enhance system efficiency, reduce downtime, and support long-term operational success.
