Decoding Torsional Rigidity: The Industrial Guide to High-Efficiency Compact Speed Reducers

The modern industrial landscape is defined by a relentless drive toward miniaturization, high throughput, and structural optimization. In advanced fields like articulated robotic arms, automated guided vehicles (AGVs), and semiconductor manufacturing equipment, floor space and payload restrictions are tighter than ever. To meet these demands, mechanical design engineers are moving away from traditional, bulky speed reducers and turning to the compact automation gearbox.

Achieving high power output within a minimal physical footprint requires an in-depth understanding of tribology, tooth profile modification, and thermal dissipation. As a premier global motion control manufacturer, iHF Group designs and builds high-precision, low-backlash industrial compact automation gearhead solutions engineered to meet these precise multi-axis demands.

Gearing Topology: Planetary vs. Strain Wave Mechanics in Miniaturized Systems

When specifying a high-torque compact automation gearbox, engineers typically choose between two main internal gear configurations, depending on the application’s kinematic requirements:

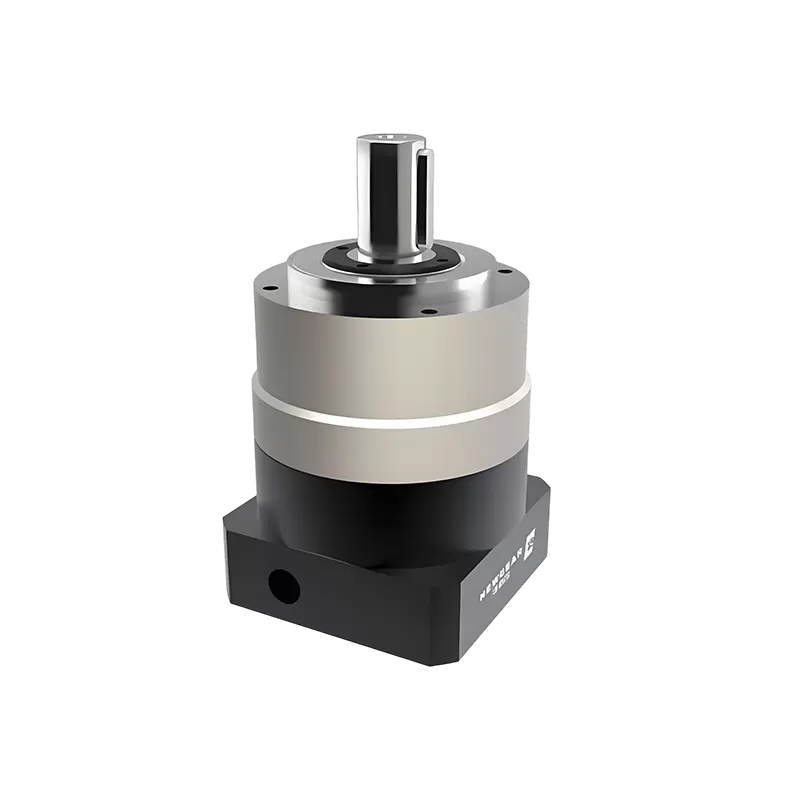

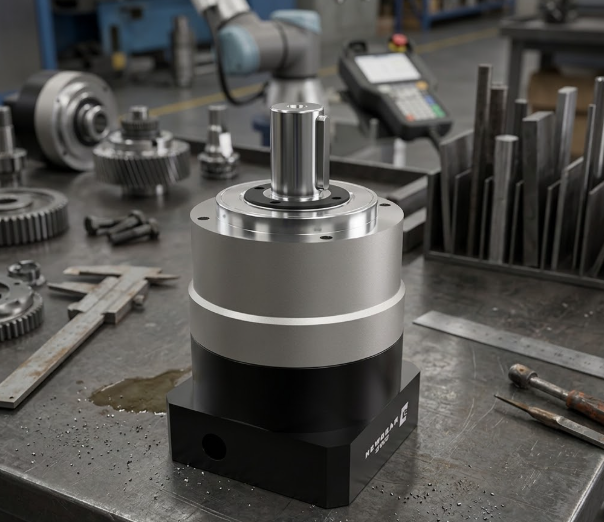

1. Precision Planetary Configurations

For applications requiring high shock load resistance and exceptional torsional rigidity, specialized planetary gearing remains the industry standard. By distributing the load across multiple planet gears simultaneously, a compact planetary setup maximizes torque density within a narrow outer diameter. iHF Group optimizes this configuration by using helical ground gears over spur gears, which increases the tooth contact ratio, suppresses acoustic noise, and extends system lifespan.

2. Strain Wave (Harmonic) Transmission

When an application requires zero-backlash precision and an ultra-lightweight profile—such as the joints of a collaborative robot (cobot)—strain wave gearing is ideal. Utilizing a flexible internal spline deformed by an elliptical wave generator, this design achieves extreme gear reduction ratios (up to 100:1 or higher) in a single, incredibly thin stage.

Mechanical Rigidity: Overcoming Backlash and Torsional Deflection

For high-speed pick-and-place automation or precision optical positioning, angular backlash can cause major issues, such as position hunting, vibration spikes, and track errors. A premium low-backlash compact automation gearbox must maintain an angular backlash profile of less than 1 to 3 arc-minutes throughout its operational lifespan.

To achieve this level of precision, iHF Group implements advanced micro-geometry teeth modifications. By slightly tapering the gear tooth profile during the final CNC grinding stage, we eliminate the micro-gaps between mating gears without causing internal binding. This design guarantees exceptionally smooth rotation, minimal torque ripple, and the strict structural rigidity needed for dynamic start-stop operations.

Thermal Management and Lubrication in Enclosed Spaces

When you pack high mechanical power into a tight, enclosed space, heat generation becomes a major design challenge. Because compact servo motor gearboxes have smaller surface areas for natural heat convection, internal temperatures can rise rapidly under heavy continuous cycles, leading to oil film breakdown and accelerated gear wear.

To combat these thermal stresses, premium gearheads integrate advanced material and sealing sciences:

● Synthetic Synthetic Lubricants: Utilizing high-viscosity synthetic fluorinated greases or polyalphaolefin (PAO) oils allows the internal components to operate smoothly across extreme temperature ranges without thinning out or leaking.

● Low-Friction Radial Lip Seals: Specially coated Viton or NBR seals isolate the oil reservoir while generating minimal friction against the input shaft, protecting the system from overheating and preventing external particulate contamination.

Sourcing Excellence: Custom Integration with iHF Group

In the high-performance automation sector, relying on standard off-the-shelf components for custom machinery often leads to sub-optimal performance. Partnering with a dedicated wholesale compact automation gearbox supplier like iHF Group provides engineering teams with full access to custom shaft configurations, specialized mounting flanges, and extensive multi-axis dynamic testing data.

Whether your project requires an inline, right-angle, or hollow-shaft configuration for routing electrical cables and pneumatic lines, iHF Group delivers the precise engineering support required to seamlessly bridge the gap between theoretical automation physics and rugged factory floor performance.

💡 Industrial Automation Q&A (Technical FAQ)

Q1: What is the primary difference between a standard industrial gearbox and a specializedcompact automation gearbox?

A: Standard gearboxes focus purely on raw torque transmission and cost efficiency, oftenresulting in larger housings, higher backlash, and lower efficiency. A compact automationgearbox is designed specifically for space-constrained motion control. It prioritizes lowbacklash, high efficiency, high torque density, and low structuralinertia to handle quick servo motor accelerations.

Q2: How does a compact planetary gearbox help extend the lifespan of an automationsystem's servo motor?

A: By offering exact gear reduction ratios, the gearbox multiplies output torque while reducingthe reflected load inertia back to the servo motor by the square of the reduction ratio. This prevents motor overheating, balances the system's inertia ratio,and allows for much crisper, highly stable tuning parameters.
