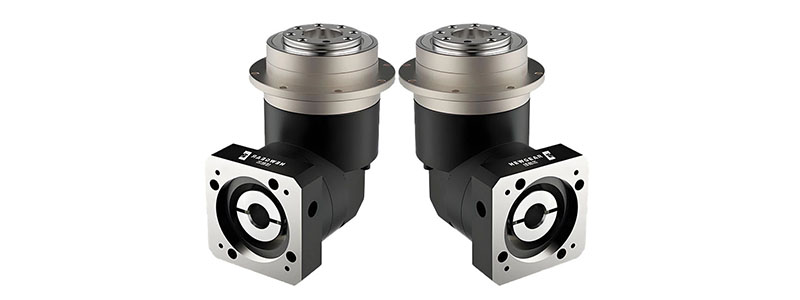

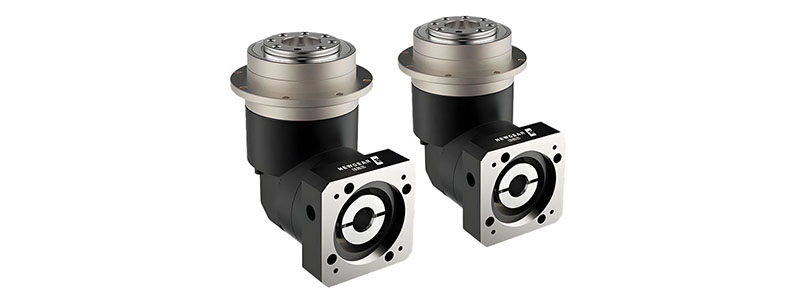

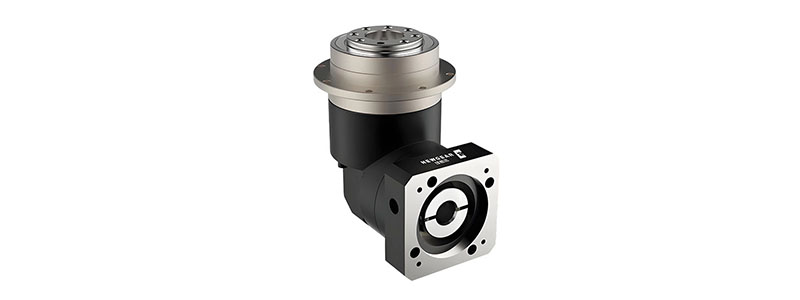

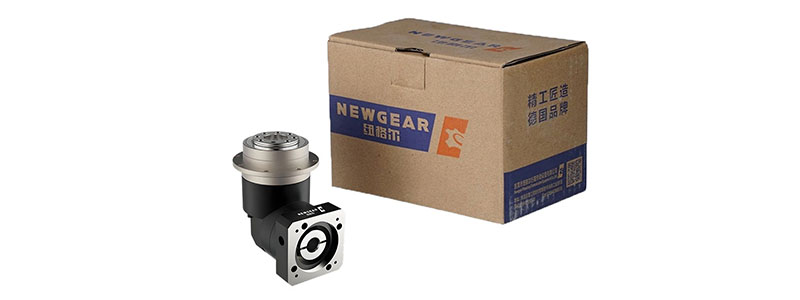

Bore-Output Right-Angle Reversing Gear Reducer - PGR Series

Productfeatures:

Equipped with a bevel gear reversing mechanism to achieve right-angle output

Unique flange output design provides greater installation flexibility

Shaftless, double-supported cage-type planetary carrier structure ensures high reliability and is suitable for high-speed, frequent forward and reverse operation

Features axial clearance adjustment

The carrier bearings are interchangeable; switching to angular contact bearings significantly increases axial and radial load capacity

Impact-resistant and capable of withstanding high acceleration and deceleration conditions

Bore-Output Right-Angle Reversing Gear Reducer - PGR Series

Get a free quote

Technical Parameters			Model Series	PGR64	PGR90	PGR110	PGR140
Maximum Torque			Nm	1.5 Time Rated Torque
Emergency Braking Torque			Nm	3 Time Rated Torque
Maximum Allowable Radial Force			N	72	183	430	1300
Maximum Allowable Axial Force			N	513	1025	2050	10590
Torsion Rigidity			Nm/arcmin	13	31	82	151
Maximum Input Speed			rpm	8000	6000	6000	6000
Rated Input Speed			rpm	4000	3000	3000	3000
Noise			dB	≤63	≤65	≤68	≤70
Average Life Span			h	20000
Full Load Efficiency			%	L1≥95% L2≥92%
Backlash	P1	L1	arcmin	≤5	≤5	≤5	≤5
	P1	L2	arcmin	≤7	≤7	≤7	≤7
	P2	L1	arcmin	≤8	≤8	≤8	≤8
	P2	L2	arcmin	≤10	≤10	≤10	≤10
Moment of Inertia	L1	4	Kg.cm2	0.35	2.25	6.84	23.4
		5	Kg.cm2	0.35	2.25	6.84	23.4
		7	Kg.cm2	0.35	2.25	6.84	23.4
		10	Kg.cm2	0.35	2.25	6.84	23.4
		14	Kg.cm2	/	1.87	6.25	21.8
		20	Kg.cm2	/	1.87	6.25	21.8
		25	Kg.cm2	0.09	0.35	2.25	6.84
		35	Kg.cm2	0.09	0.35	2.25	6.84
		40	Kg.cm2	0.09	0.35	2.25	6.84
		50	Kg.cm2	0.09	0.35	2.25	6.84
		70	Kg.cm2	0.09	0.35	2.25	6.84
		100	Kg.cm2	0.09	0.35	2.25	6.84

Technical Parameters		Model Series	PG64	PG90	PGR140	PG110
	Specification	Ratio	PG64	PG90	PGR140	PG110
Rated Torque	L1	4	40	120	300	650
		5	40	125	350	650
		7	40	125	260	500
		10	40	125	350	650
		14	/	125	260	500
		20	/	80	160	320
		25	40	125	350	650
		35	40	125	350	650
		40	40	125	300	650
		50	40	125	350	650
		70	40	125	260	500
		100	40	125	350	650
Degree of protection		IP65
Operating Temperature		’-10°C to 90°C
Weight（Kg)	L1		2.3	6.2	12.5	19.7
Weight（Kg)	L2		2.4	7.6	14.2	23.3
