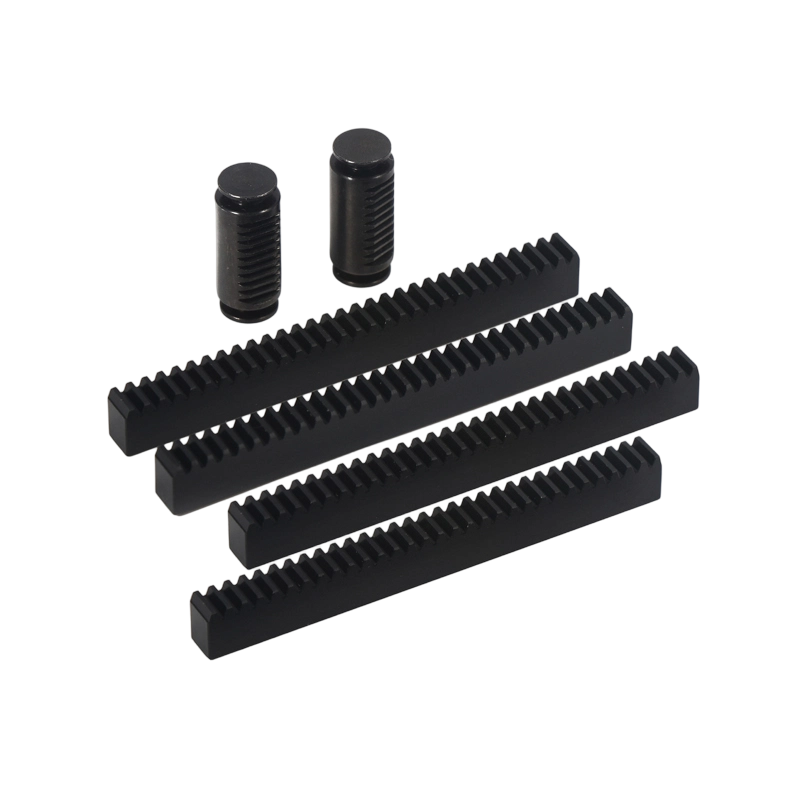

IHF Steering Gear Rack Helical Steel Electroplate Racks For Woodworking Equipment
Send Inquiry Now
Position: Home > Product Center > Gear & Timing Pulley > Rack and pinion > Customized Precision Helical Spur Gear Rack For Automation Equipment

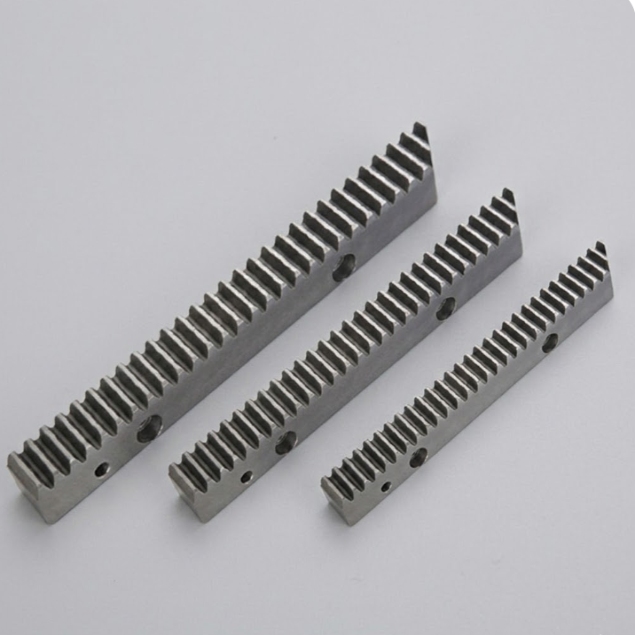

Customized Precision Helical Spur Gear Rack For Automation Equipment
Productfeatures:
The Customized Precision Helical Spur Gear Rack for Automation Equipment is a high-performance linear transmission component designed for modern industrial automation systems. It combines the efficiency of helical tooth engagement with the structural simplicity of spur rack design, delivering smooth, accurate, and stable motion control for a wide range of automated machinery.
As a professional manufacturer, iHF Group provides tailored solutions for different industrial needs:
Custom module, pitch, and rack length
Straight or helical spur configurations
Heat treatment and hardness adjustment
Surface finishing (blackening, electroplating, grinding)
OEM/ODM production based on drawings or samples

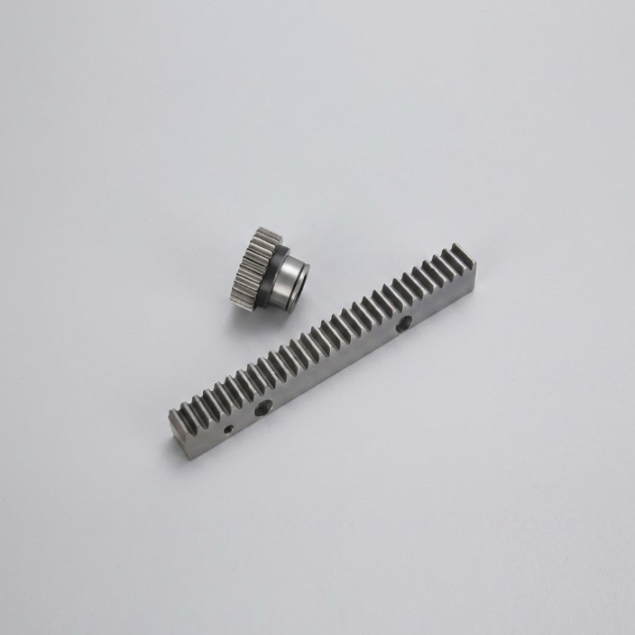

Rack and pinion:
| Product Name | Gear rack |
| Material | Stainless Steel |
| shape | Rack Gear |
| warranty | 1.5 year |
| machinery test report | Provided |
| Trademark | iHF |
| place of origin | Guangdong, China |
| pressure angle | 20 degree |
| Type | spur/helical/bevel/worm gear |
| Model | M0.5-M8 |
| Bore | Small hole , OEM hole |
| Color | Natural / Black/ as demands |
| Presicion grade | DIN7 DIN6 |
| Gross weight per batch | 2.500 kg |
Product Description:
| Product name | Helical Gear & Spur Gear & Custom Gear |
| Type | spur/helical/bevel/worm gear |
| Model | M0.5-M8 |
| Pressure angle | 20 degree |
| Presicion grade | DIN5 to DIN7 |
| Color | Natural / Black/ as demands |
| Teeth Number | as demands |
| Hub | with hub or without hub |
| Set screw | can be customized |
| Bore | Small hole , OEM hole |
| Materials Available | Stainless Steel, Carbon Steel, Brass, Bronze, Iron, Aluminum Alloy，SCM415,20CrMoTi,40Cr,SUS303/304,etc |
| Heat Treatment | Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding...... |
| Surface Treatment | Carburizing and Quenching,Tempering ,Tooth suface high quenching Hardening,Tempering |
| Hardness | 55- 60HRC |
| Machining Process | Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding and Gear Lapping |
| Applications | Toy, Automotive, instrument, electrical equipment, household appliances, furniture, mechanical equipment,daily living equipment, electronic sports equipment, , sanitation machinery, market/ hotel equipment supplies, etc. |
Application
The Customized Precision Helical Spur Gear Rack is specifically designed for automated equipment, featuring high precision and exceptional wear resistance to effectively transmit power and motion. Its helical tooth profile design not only enhances meshing efficiency but also reduces noise and vibration, ensuring smooth equipment operation. We offer a wide range of specifications and material options to meet the diverse needs of our clients, helping to boost the overall performance and reliability of their automated systems.
