iHF Timing Pulley with T5/T10 Type Standard Keyless Pulley
Send Inquiry Now
Position: Home > Product Center > iHF > Keyless Timing Pulley > iHF Keyless Transmission Belt Timing Pulley for Bending Machine

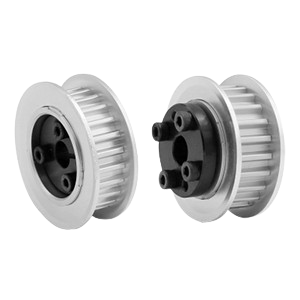

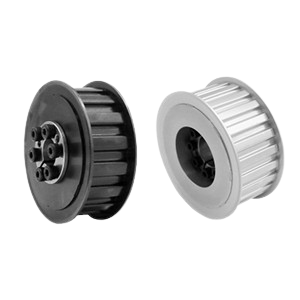

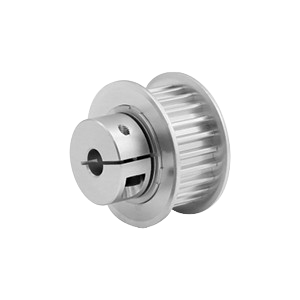

iHF Keyless Transmission Belt Timing Pulley for Bending Machine
iHF Keyless Timing Belt Pulley Standard Series (Models XL(5.08mm)/L(9.525mm)/H(12.7mm)) are suited for standard transmission and light-duty conveying applications, available with an optional self-centering function.
Product features:
High Torque & Stability
Keyless clamping evenly distributes force for superior torque transmission, ideal for high-load, high-speed bending operations.
Backlash-Free Precision
Rigid fit ensures accurate synchronization, improving bending accuracy, reducing vibration, and enhancing reliability.
Easy Installation & Maintenance
No keyways or extra machining required; quick mounting and removal minimize downtime and costs.
Accurate Timing
Optimized tooth geometry guarantees precise synchronization for consistent bending results.
Durable Construction
Engineered with robust materials for long-lasting performance in demanding industrial environments.
Versatile Compatibility
Available in various sizes and profiles, adaptable to different bending machines and custom setups.
Whether in sheet metal processing, industrial automation, or heavy-duty machinery applications, this pulley enhances bending machine performance while reducing downtime and maintenance costs.
Keyless Timing Pulley XL
| Type | Material | Surface Treatment | ||||
| Belt Width: 12.7mm | Pulley | Flange | Bushing | Pulley | Flange | Bushing |
| A：14 W：19 | ||||||
| AW**XLK127 | 6061 | 6061 | S45C | Natural Anodizing | Black Oxide Coating | |
| SF**XLK127 | S45C | S45C | S45C | Black Oxide Coating | Black Oxide Coating | |
Keyless Timing Pulley L
| Type | Material | Surface Treatment | |||||||
| Belt Width: 12.7mm(1/2inch) | Belt Width: 19.1mm(3/4inch) | Belt Width: 25.41mm(1inch) | Belt Width: 38.1mm(1.5inch) | Pulley | Flange | Bushing | Pulley | Flange | Bushing |
| A：14 W：19 | A：21 W：26 | A：27 W：32 | A：40 W：45 | ||||||
| AW**LK127 | AW**LK191 | AW**LK254 | AW**LK381 | 6061 | 6061 | S45C | Natural Anodizing | Black Oxide Coating | |
| AH**LK127 | AH**LK191 | AH**LK254 | AH**LK381 | Hard Anodizing | |||||
| AN**LK127 | AN**LK191 | AN**LK254 | AN**LK381 | Nickel Plating | |||||
| SF**LK127 | SF**LK191 | SF**LK254 | SF**LK381 | S45C | S45C | S45C | Black Oxide Coating | ||
| SN**LK127 | SN**LK191 | SN**LK254 | SN**LK381 | Nickel Plating | |||||
Keyless Timing Pulley H
| Type | Material | Surface Treatment | |||||||
| Belt Width: 19.1mm(3/4inch) | Belt Width: 25.4mm(1inch) | Belt Width: 38.1mm(1.5inch) | Belt Width: 50.8mm(2inch) | Pulley | Flange | Bushing | Pulley | Flange | Bushing |
| A：21 W：26 | A：27 W：32 | A：40 W：45 | A：54 W：59 | ||||||
| AW**HK191 | AW**HK254 | AW**HK381 | AW**HK508 | 6061 | 6061 | S45C | Natural Anodizing | Black Oxide Coating | |
| SF**HK191 | SF**HK254 | SF**HK381 | SF**HK508 | S45C | SPCC | S45C | Black Oxide Coating | ||
| SN**HK191 | SN**HK254 | SN**HK381 | SN**HK508 | Nickel Plating | |||||
Keyless Timing Pulley XL
Keyless Timing Pulley L
Keyless Timing Pulley H

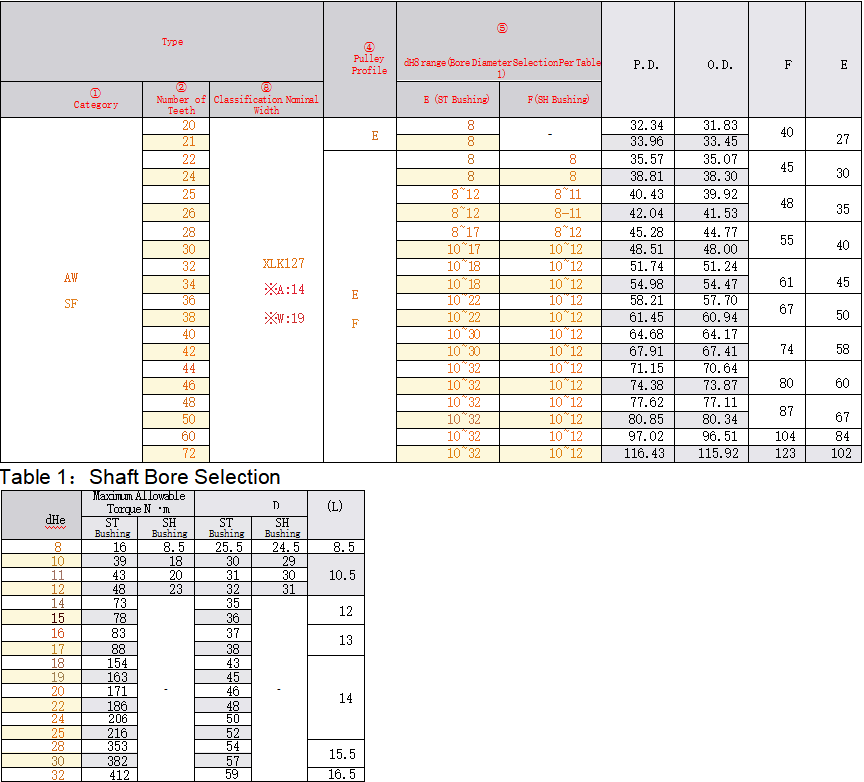

Keyless Timing Pulley XL

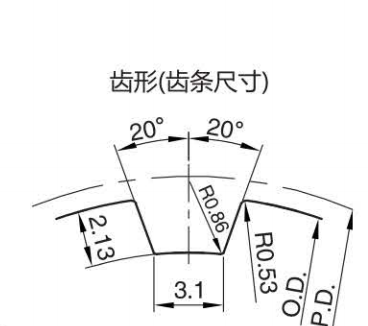

④Pulley Profile
Tooth groove dimensions vary slightly depending on the number of teeth. Tooth pitch: (5.08mm)

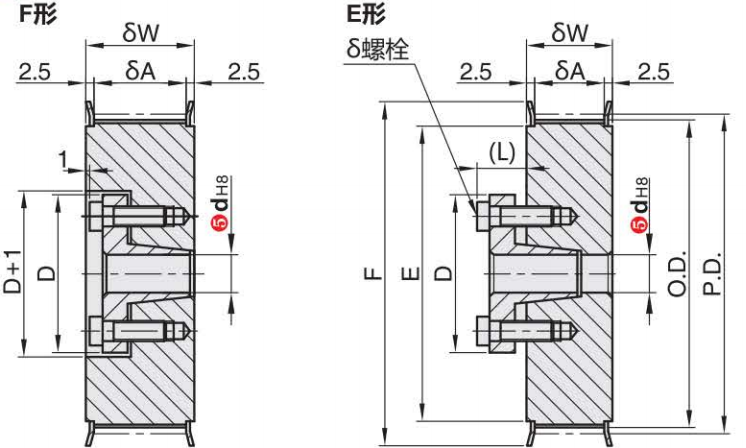

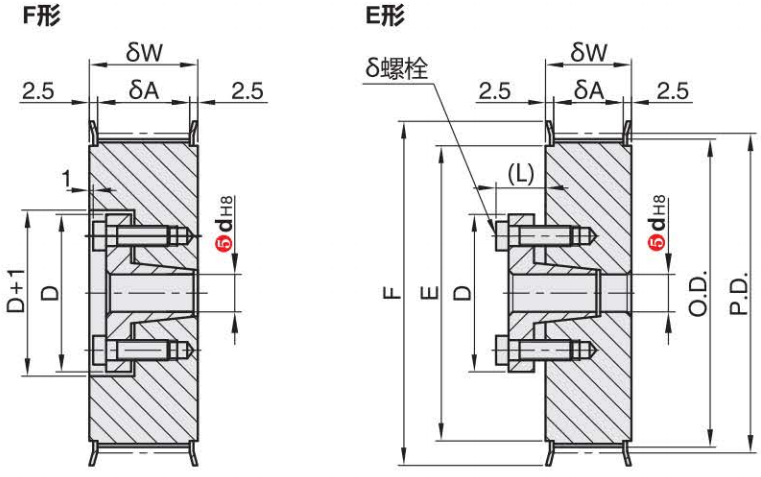

The flanges are riveted. Confirm the number and size of the bolts.
The inside of the shaft hole may not be surface treated.
Bushings are available in two types: ST and SH.

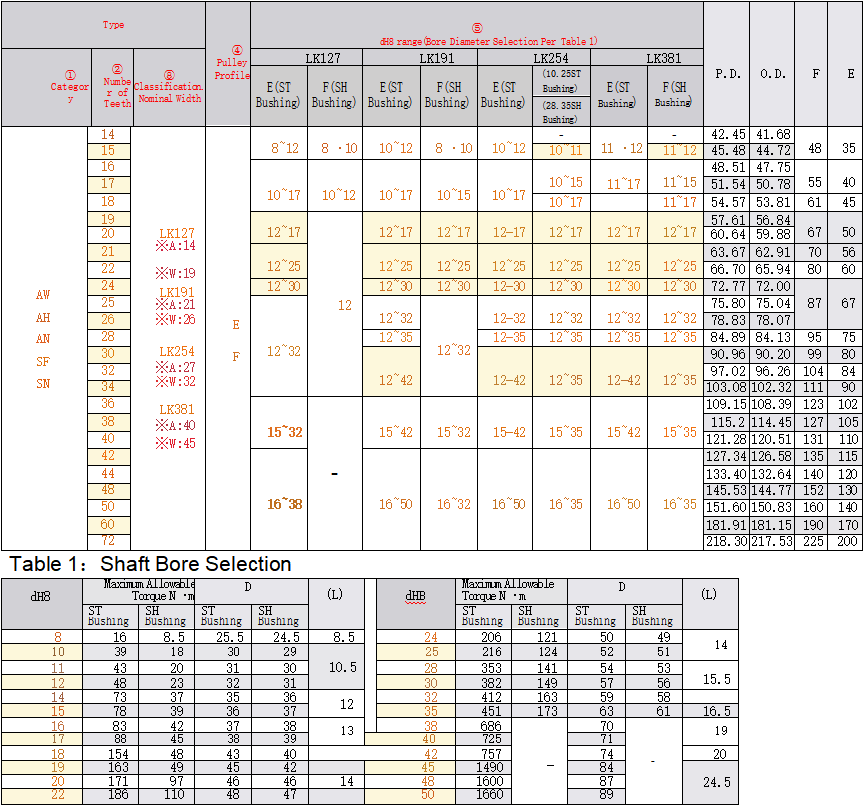

Keyless Timing Pulley L

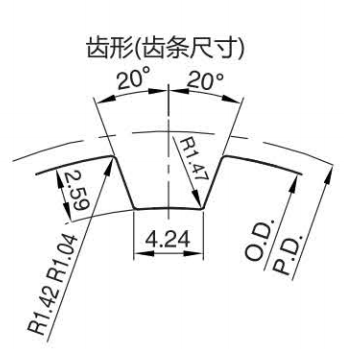

④Pulley Profile
Tooth groove dimensions vary slightly depending on the number of teeth. Tooth pitch: (9.525mm)
The flanges are riveted. Confirm the number and size of bolts.
The inside of the shaft hole may not be surface treated.
Bushings are available in two types: ST and SH.

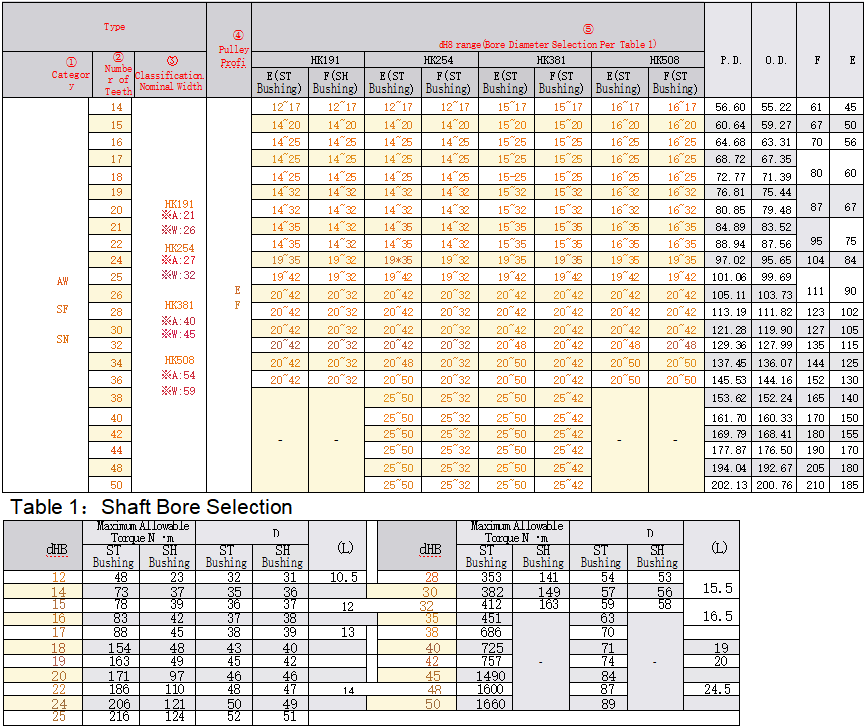

Keyless Timing Pulley H
④Pulley Profile
Number after △: Number of teeth: 19 or fewer
Groove dimensions may vary slightly depending on the number of teeth. Tooth pitch: (12.7mm)
The flanges are riveted.
The inside of the shaft hole may not be surface treated.

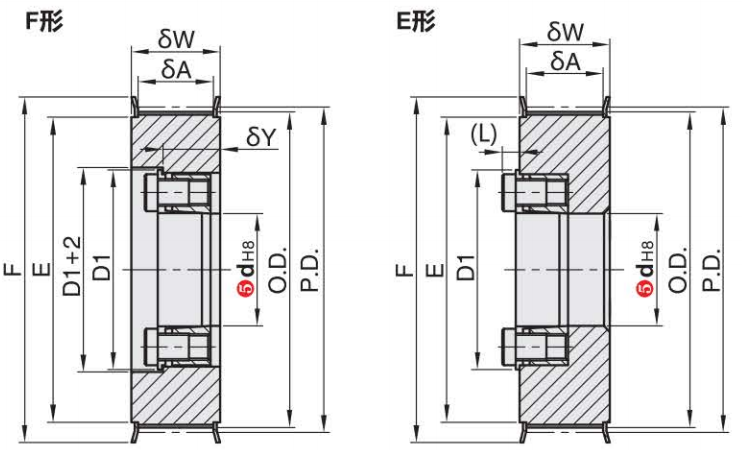

In the Y dimension (inside), HM100 is for shaft hole diameters of 24 or larger, and HM150 and HM200 are for shaft hole diameters of 35 or larger.
MLM type with bushing.
