Synchronized Rotation: Optimizing Dynamic Stability with Double Diaphragm Coupling Shaft Couplers

In the sophisticated realm of high-performance motion control, where servo-driven actuators operate with sub-micron precision, the weakest link in any mechanical chain is often the connection between the driving motor and the load. Traditional coupling methods frequently fail under the stress of high-speed rotation, thermal expansion, or unavoidable structural misalignment. To maintain absolute torsional integrity and ensure the longevity of high-precision components like lead screws, encoders, and gearboxes, engineers are increasingly turning to advanced double diaphragm coupling shaft couplers.

These specialized mechanical links function as the "torsional guardian" of a system. By utilizing a dual-disk configuration separated by a center spacer, these couplers offer a unique combination of high torsional rigidity and flexible misalignment compensation. iHF Group stands at the absolute pinnacle of this engineering sector. By integrating premium-grade stainless steel metallurgy with precision-balanced assembly protocols, iHF Group ensures that every coupler delivers the vibration-dampening performance and rotational accuracy that modern global industry demands.

1. The Physics of Motion: Why Dual-Diaphragm Geometry Matters

The primary challenge in power transmission is managing the three forms of mechanical misalignment: angular, parallel, and axial. A rigid connection that attempts to force two misaligned shafts together will inevitably suffer from bearing fatigue, shaft deflection, and system-wide resonance.

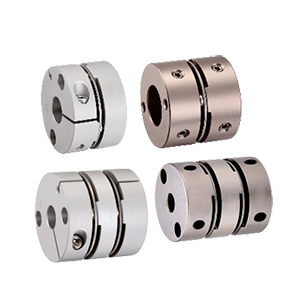

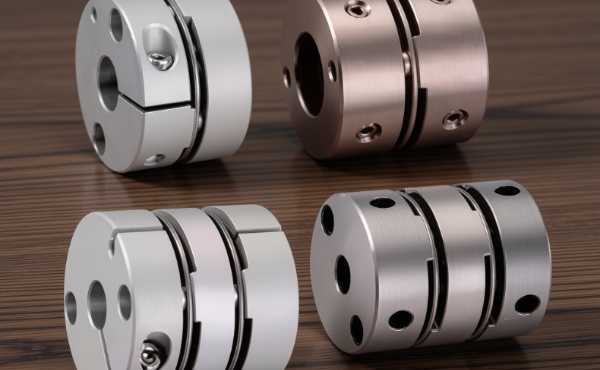

The double diaphragm coupling shaft coupler solves this by creating a flexible mechanical bridge. The central spacer acts as an intermediate member, allowing two separate sets of thin, high-strength stainless steel diaphragms to flex independently.

● Angular Misalignment: The diaphragms bend in opposite directions to accommodate shaft tilt without inducing radial loads on the motor bearings.

● Parallel Offset: The center spacer shifts laterally, allowing the two disk packs to compensate for shaft centers that are not perfectly collinear.

● Torsional Rigidity: Despite this flexibility in bending, the diaphragm disks are exceptionally stiff under rotational torque, ensuring that the motor’s input rotation is transferred to the load with zero backlash.

2. Advanced Material Science: The iHF Group Difference

Performance is ultimately rooted in the material selection. The diaphragms in an iHF Group high-performance shaft coupler are manufactured from specialized stainless steel alloys that undergo proprietary heat-treatment processes. This ensures the material possesses the exact balance of fatigue resistance and elastic flexibility.

Unlike generic couplers that may utilize lower-grade carbon steel or brittle alloys, these high-end disks can survive millions of stress cycles without plastic deformation. This makes them ideal for the rapid start-stop duty cycles seen in CNC machining centers, high-speed packaging equipment, and laboratory automation. Furthermore, the use of stainless steel ensures that these couplers are inherently corrosion-resistant, providing reliable service in cleanroom environments where oil or chemical leaks are strictly prohibited.

3. Minimizing System Resonance: Dampening the Dynamics

High-speed drive systems are notoriously susceptible to resonance—a state where mechanical vibration matches the natural frequency of the machine, leading to oscillation and eventual component failure. The beauty of the double diaphragm coupling shaft coupler lies in its ability to effectively decouple these vibrations.

By introducing a controlled degree of dampening into the transmission path, these couplers prevent high-frequency oscillations from traveling through the shaft and impacting sensitive encoders or load-side components. The center spacer can also be customized in material—such as aluminum for weight reduction or steel for inertia management—to further tune the system's dynamic profile. Working with iHF Group allows design teams to specify these spacer lengths and diameters precisely, ensuring the entire mechanical chain is harmonized for peak operational efficiency.

4. Engineering Integration and Maintenance-Free Longevity

From an industrial maintenance perspective, the "holy grail" of mechanical design is the maintenance-free component. Because the double diaphragm coupling shaft coupler relies purely on mechanical flexure—without moving parts like rolling balls or sliding splines—it requires absolutely no lubrication.

This lack of grease eliminates the risk of lubricant breakdown or sludge buildup, which is a major point of failure in traditional gear or jaw-type couplings. When installed correctly according to iHF Group technical specifications, these units provide an effectively indefinite service life, provided they are kept within the rated misalignment limits. This drastically lowers the total cost of ownership for fleet managers and plant engineers, as it removes the need for periodic inspection and re-greasing of drive lines.

视频

5. Strategic Selection: Partnering for Global Manufacturing Excellence

Selecting the correct coupling is not merely a purchase; it is a strategic decision that affects the precision and reliability of the entire machine. iHF Group provides comprehensive application engineering support to ensure that the chosen coupler matches the torque curves, inertia requirements, and environmental constraints of the specific application.

Whether your requirements involve medical device robotics, high-speed printing presses, or precision semiconductor manufacturing, the iHF Group commitment to quality guarantees:

● Rotational Balance: Precision-machined hubs that minimize centrifugal force during high-RPM operations.

● High-Torque Capacity: Optimized disk geometry that maximizes torque density within a compact physical footprint.

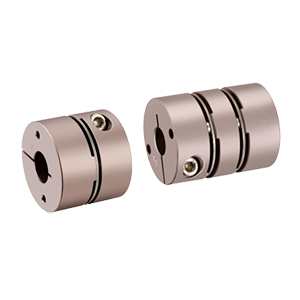

● Ease of Installation: Clamping-style or set-screw hubs that ensure a secure, slip-free grip on the motor shaft.

Investing in these premium couplings is a proactive approach to mechanical reliability. By choosing the advanced solutions offered by iHF Group, industrial builders can confidently push their systems to higher speeds and tighter tolerances, knowing the transmission path is held by the most robust technology available.
