Application of Planetary Reducers in Woodworking Double-Station Drilling Machines: Precision Drilling and High-Efficiency Production

In the woodworking machinery manufacturing industry, double-station drilling machines are critical equipment for furniture manufacturing and wood product processing. Their drilling accuracy and production efficiency directly impact final product quality and production costs. Traditional drive methods often suffer from insufficient precision, excessive vibration, and low efficiency, leading to hole position deviations, high rejection rates, and frequent equipment maintenance. To address these pain points, a high-end woodworking equipment manufacturer integrated PW series high-precision planetary reducers as the core drive component for the drill head in its latest generation double-station drilling machine.

Solution

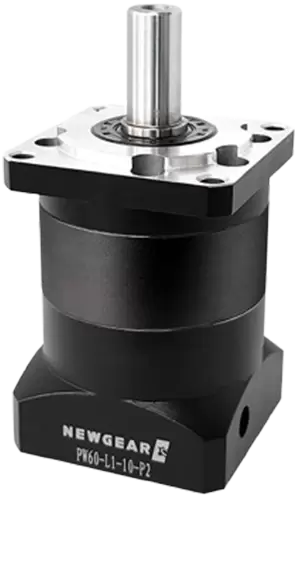

After extensive comparison and testing, the equipment manufacturer selected the PW series planetary reducers, integrating them into the drill head drive system of the double-station drilling machine. This solution primarily leverages the following key advantages of planetary reducers:

1. Constant Speed and Stable Torque Output

The PW series planetary reducers ensure the drill head maintains a constant rotational speed during processing, providing smooth and consistent torque output. Even when working with woods of different densities, they effectively suppress speed fluctuations caused by load variations, ensuring smooth and clean inner walls of each hole without burrs or tearing, significantly improving drilling quality.

2. High Precision and Low Backlash

This reducer series employs precision gear design and manufacturing processes, resulting in extremely low backlash. This characteristic directly translates into exceptional positioning accuracy, ensuring the drill head can achieve precise positioning even at high speeds, eliminating positional deviations caused by backlash and meeting the stringent requirements for hole position accuracy in high-end wood products.

3. Precise Speed and Position Control

Paired with servo motors, the planetary reducers enable millisecond-level precise control over the drill head's rotational speed and drilling position. This not only guarantees drilling accuracy but also optimizes the rhythm of wood feeding, positioning, and drilling through synchronized control, enhancing the overall machine's operational efficiency and processing consistency.

4. Improved Equipment Reliability and Reduced Maintenance Costs

The planetary reducers feature a compact structure and high rigidity, effectively absorbing impacts and vibrations during the drilling process and protecting the motor and other transmission components. Their high load efficiency and long service life design significantly reduce equipment failure rates and maintenance needs, minimizing production losses due to downtime.

Application Results

Since adopting the PW series planetary reducers, the performance of the double-station drilling machine has been comprehensively enhanced:

· Drilling Quality Significantly Improved: Hole positioning accuracy is controlled within ±0.1mm, with smooth hole walls, fully meeting the requirements for subsequent assembly processes.

· Production Efficiency Increased by Approximately 20%: Stable operation and precise cycle control have fully unlocked the equipment's production capacity.

· Rejection Rate (Significantly Reduced): Rejects and rework caused by positional deviations or poor drilling quality have been reduced by over 35%.

· Energy Consumption Reduced: The high transmission efficiency of the planetary reducers reduces energy loss, enabling green and energy-efficient production.

· Customer Satisfaction Enhanced: Improved equipment reliability and machining accuracy have strengthened the market competitiveness of end furniture manufacturers.

Conclusion

The successful application of the PW series planetary reducers in the woodworking double-station drilling machine demonstrates that high-precision, high-rigidity, and high-reliability transmission solutions are key to enhancing the performance of woodworking machinery. It not only addresses the precision and efficiency bottlenecks of traditional equipment but also delivers long-term economic benefits to users by reducing maintenance costs and energy consumption. For woodworking equipment manufacturers pursuing high quality, high efficiency, and low operational costs, selecting advanced planetary reducers is a strategic decision for technological upgrading and gaining a competitive market advantage.

Welcome to Learn More: If you wish to explore the application potential of planetary reducers in your equipment, our technical team is ready to provide professional consultation and solutions.
