Product features:
1. Split design, more output options
2. Input and output sizes can be seamlessly switched with straight tooth series
3. Double-support cage planet carrier, high reliability, and high precision at high-speed
4. Two-stage single support bracket design, very cost effective
5. The input shaft can be opened with a keyway
6. Helical gear transmission, more stable transmission and large carrying capacity
7. Low return clearance,accurate positioning
Applications:
The Newgear Nema 23 Planetary Gearbox PW is widely used in a variety of fields, including but not limited to:
Robotics: In robotic joints and drive systems, it provides high-precision motion control and powerful driving force.
CNC machine tools: In CNC machine tools, planetary gearboxes enable high-precision cutting and processing, improving production efficiency.
Automation equipment: In automated production lines, it provides stable power output, ensuring efficient operation.

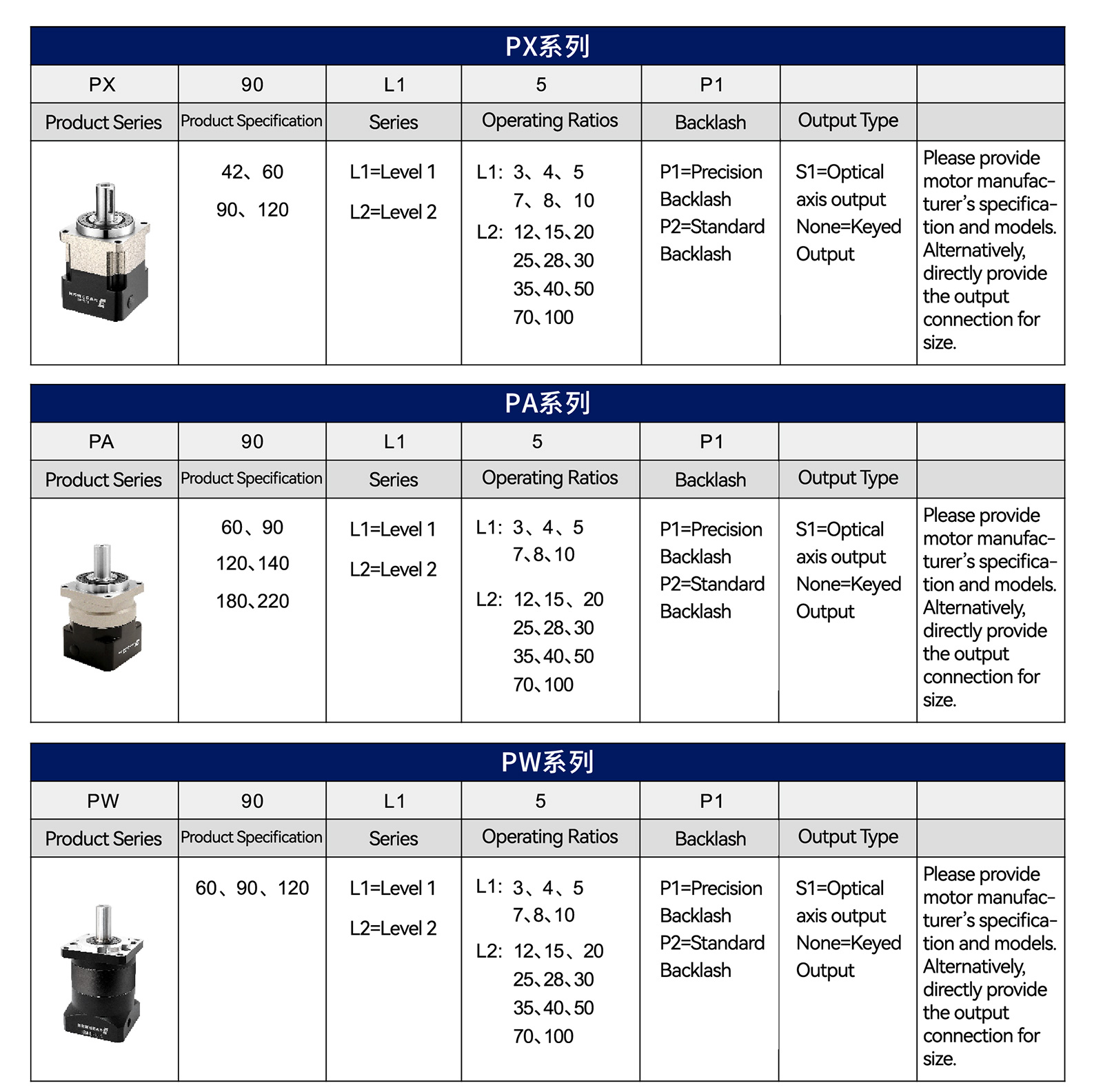

Specification range: 60-120
Speed ratio range: 3-100
Accuracy range: 1-3arcmin (P1 Level) 3-5arcmin (P2 Level)
Choosing the Newgear Nema 23 Planetary Gearbox PW isn't just about achieving high torque and precision, it's also about maintaining technological leadership in a fiercely competitive market. Its superior performance and reliability make it an indispensable component in numerous industries.
In modern industry, which demands high efficiency and precision, the Newgear Nema 23 Planetary Gearbox PW, with its superior design and performance, is an ideal transmission solution. Whether in robotics, CNC machine tools, or automated equipment, it provides powerful support, helping companies achieve new heights in technological innovation and productivity. Choose iHF, choose the power of the future!
| Technical Parameters | Model Series | PW60 | PW90 | PW120 | ||
| Maximum Torque | Nm | 1.5 Time Rated Torque | ||||
| Emergency Braking Torque | Nm | 2.5 Time Rated Torque | ||||
| Maximum Allowable Radial Force | N | 1350 | 3100 | 6100 | ||
| Maximum Allowable Axial Force | N | 630 | 1300 | 2800 | ||
| Torsion Rigidity | Nm/arcmin | 5 | 10 | 20 | ||
| Maximum Input Speed | rpm | 8000 | 6000 | 6000 | ||
| Rated Input Speed | rpm | 4000 | 3000 | 3500 | ||
| Noise | dB | ≤58 | ≤60 | ≤65 | ||
| Average Life Span | h | 20000 | ||||
| Full Load Efficiency | % | L1≥95% L2≥92% | ||||
| Backlash | P1 | L1 | arcmin | ≤3 | ≤3 | ≤3 |
| L2 | arcmin | ≤5 | ≤5 | ≤5 | ||
| P2 | L1 | arcmin | ≤5 | ≤5 | ≤5 | |
| L2 | arcmin | ≤7 | ≤7 | ≤7 | ||
| Moment of Inertia | L1 | 3 | Kg.cm2 | 0.16 | 0.61 | 3.25 |
| 4 | Kg.cm2 | 0.14 | 0.48 | 2.74 | ||
| 5 | Kg.cm2 | 0.13 | 0.47 | 2.71 | ||
| 7 | Kg.cm2 | 0.13 | 0.45 | 2.62 | ||
| 8 | Kg.cm2 | 0.13 | 0.45 | 2.62 | ||
| 10 | Kg.cm2 | 0.13 | 0.40 | 2.57 | ||
| L2 | 12 | Kg.cm2 | 0.13 | 0.61 | 0.45 | |
| 15 | Kg.cm2 | 0.13 | 0.61 | 0.45 | ||
| 20 | Kg.cm2 | 0.13 | 0.45 | 0.45 | ||
| 25 | Kg.cm2 | 0.13 | 0.45 | 0.45 | ||
| 28 | Kg.cm2 | 0.13 | 0.40 | 0.40 | ||
| 30 | Kg.cm2 | 0.13 | 0.61 | 0.45 | ||
| 35 | Kg.cm2 | 0.13 | 0.45 | 0.45 | ||
| 40 | Kg.cm2 | 0.13 | 0.45 | 0.45 | ||
| 50 | Kg.cm2 | 0.13 | 0.40 | 0.40 | ||
| 70 | Kg.cm2 | 0.13 | 0.40 | 0.40 | ||
| 100 | Kg.cm2 | 0.13 | 0.40 | 0.40 | ||
| Technical Parameters | Model Series | PW60 | PW90 | PW120 | ||
| Specification | Ratio | |||||
| Rated Torque | L1 | 3 | 35 | 100 | 165 | |
| 4 | 43 | 125 | 220 | |||
| 5 | 43 | 125 | 220 | |||
| 7 | 40 | 98 | 200 | |||
| 8 | 40 | 90 | 200 | |||
| 10 | 25 | 70 | 150 | |||
| L2 | 12 | 35 | 100 | 165 | ||
| 15 | 35 | 100 | 165 | |||
| 20 | 43 | 125 | 220 | |||
| 25 | 43 | 125 | 220 | |||
| 28 | 43 | 125 | 220 | |||
| 30 | 35 | 100 | 165 | |||
| 35 | 43 | 125 | 220 | |||
| 40 | 43 | 125 | 220 | |||
| 50 | 43 | 125 | 220 | |||
| 70 | 40 | 98 | 200 | |||
| 100 | 25 | 70 | 150 | |||
| Degree of protection | IP65 | |||||
| Operating Temperature | ‘-10°C to 90°C | |||||
| Weight（Kg) | L1 | 1.2 | 2.8 | 8 | ||
| L2 | 1.55 | 3.95 | 10 | |||
