Precision Drive Powers Printing Innovation: The Superior Application of PA Planetary Reducers in High-End Printing Machinery

In the printing industry, production efficiency and print quality are the cornerstones of competitive advantage. A renowned printing equipment manufacturer was consistently challenged by the escalating demands for precision and stability in the high-end market. A critical pain point was controlling the paper feeding, printing cylinder synchronization, and rewinding tension in high-speed operations, factors that directly determine the yield rate of finished products.

Previously, a certain model of their high-speed press, utilizing conventional drive systems, frequently encountered issues such as paper feeding inaccuracies, misregistration, and wrinkled rewinds. These problems not only led to a high rate of waste but also caused frequent machine downtime for adjustments, severely hampering overall production efficiency.

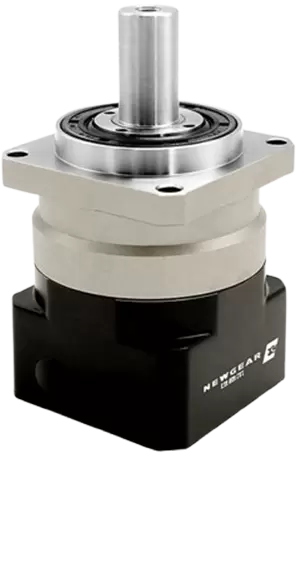

To address this core issue, our technical team collaborated deeply with the customer to provide a tailor-made solution featuring our PA Series Planetary Reducers for the three core stations: feeding, printing, and rewinding.

1. Precision Feeding: Clockwork Paper Advancement

In the feeding system, the PA planetary reducer, with its high rigidity, low backlash, and exceptional acceleration response, achieved millimeter-level precision in paper advancement. Unlike standard reducers, the PA series maintains consistent tension during high-speed start-stop cycles, effectively preventing misregistration in multi-color printing and significantly improving the positional consistency of printed graphics.

2. Printing Cylinder Drive: Impeccable Clarity, Every Impression

The drive for printing cylinders requires extremely high synchronization and positional accuracy. The PA planetary reducer, leveraging smooth power transmission and high torque capacity thanks to its multi-gear meshing structure, significantly reduced vibration in the printing cylinders during variable-speed operation. This resulted in markedly improved reproduction of halftone dots and fine lines. Even at speeds of 8,000 sheets per hour, the output maintained sharp, well-defined images with excellent tonal gradation.

3. Rewinding Control: Eliminating Wrinkles and Loose Rolls

In the rewinding section, the PA planetary reducer ensures optimal tension throughout the process via precise torque control and a stable reduction ratio output. Whether handling lightweight newsprint or heavy cardstock, the system maintains consistent roll density from the core to the full roll diameter, eliminating issues of slack or over-tightening and drastically reducing waste in subsequent slitting and converting processes.

Results and Feedback:

Since integrating our PA Planetary Reducers, the comprehensive performance of the printing press has seen remarkable improvement:

· Print waste reduced by 25%

· Overall operational speed increased by 18%

· End-users reported achieving industry-leading stability in print quality.

This project not only successfully enhanced the end-client's market competitiveness but also solidified the technical reputation of our PA Series Planetary Reducers in the field of high-end printing drives. We remain committed to deepening our partnerships within the printing industry, driving innovation through advanced mechatronic solutions.

Case Insight:

Though a traditional mechanical component,the planetary reducer acts as the "power coordination hub" in modern high-precision printing processes. Our PA series, with its proven reliability and adaptability, is becoming an indispensable core drive unit in intelligent printing equipment.

If your company faces drive optimization challenges or has custom reducer requirements for printing machinery, please contact our technical team for professional matching advice and tailored solutions.
