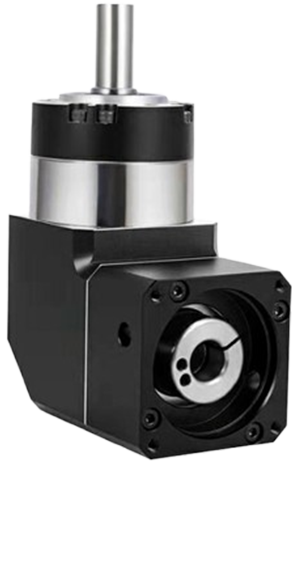

Newgear Right Angle Bevel Gearbox PVLN for Speed Reduction

Drive the world with planetary transmission and lead the future with precision manufacturing

Product features:

1. Spiral bevel gear mechanism to achieve right-angle steering output

2. Square flange shaft output

3. Paired with straight gear transmission, single cantilever structure, extremely cost-effective

4. The input shaft can be opened with a keyway

5. Return clearance 8-16arcmin

Specification range: 60-160

Speed ratio range: 3-100

Accuracy range: 8-16arcmin

Get a free quote

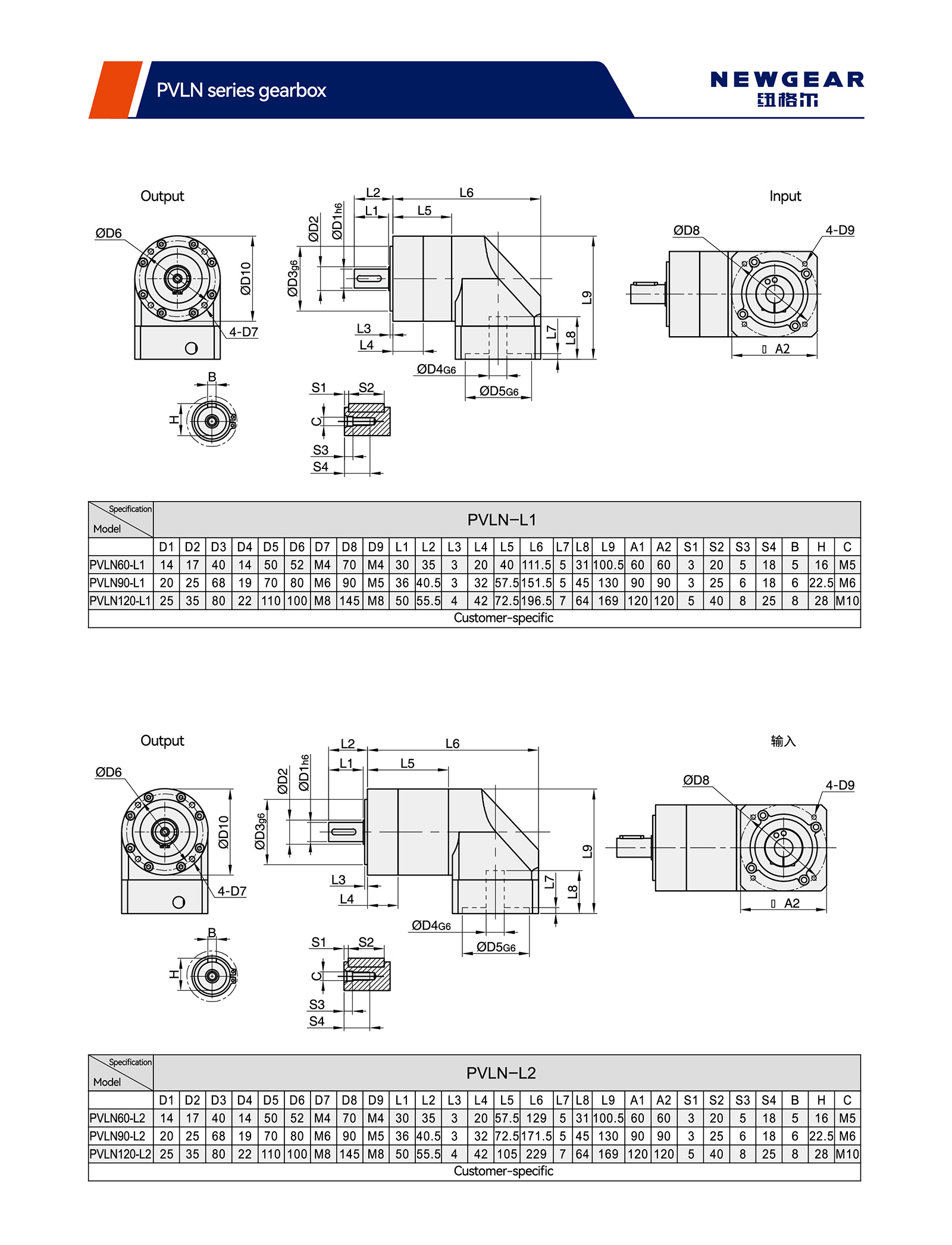

Technical Parameters			Model Series	PVLN60	PVLN90	PVLN120
Maximum Torque			Nm	1.5 Time Rated Torque
Emergency Braking Torque			Nm	2 Time Rated Torque
Maximum Allowable Radial Force			N	240	450	1240
Maximum Allowable Axial Force			N	220	430	1000
Torsion Rigidity			Nm/arcmin	1.8	4.85	11
Maximum Input Speed			rpm	8000	6000	6000
Rated Input Speed			rpm	4000	3500	3500
Noise			dB	≤58	≤60	≤65
Average Life Span			h	20000
Full Load Efficiency			%	L1≥95% L2≥92%
Backlash	P1	L1	arcmin	≤8	≤8	≤8
	P1	L2	arcmin	≤12	≤12	≤12
	P2	L1	arcmin	≤16	≤16	≤16
	P2	L2	arcmin	≤20	≤20	≤20
Moment of Inertia	L1	3	Kg.cm°	0.46	1.73	12.78
		4	Kg.cm2	0.46	1.73	12.78
		5	Kg.cm2	0.46	1.73	12.78
		7	Kg.cm°	0.41	1.42	11.38
		10	Kg.cm2	0.41	1.42	11.38
	L2	12	Kg.cm2	0.44	1.49	12.18
		15	Kg.cm2	0.44	1.49	12.18
		16	Kg.cm'	0.44	1.49	12.18
		20	Kg.cm2	0.44	1.49	12.18
		25	Kg.cm2	0.44	1.49	12.18
		28	Kg.cm'	0.44	1.49	12.18
		30	Kg.cm2	0.44	1.49	12.18
		35	Kg.cm2	0.44	1.49	12.18
		40	Kg.cm°	0.44	1.49	12.18
		50	Kg.cm2	0.34	1.25	11.48
		70	Kg.cm2	0.34	1.25	11.48
		100	Kg.cm°	0.34	1.25	11.48
