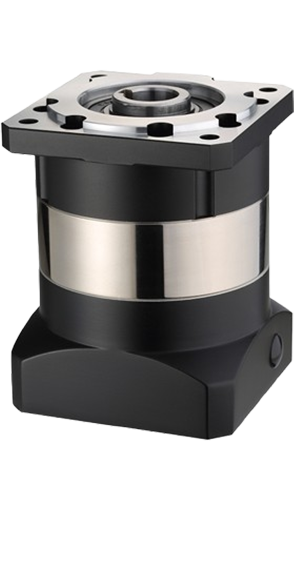

Newgear Servo Gearbox Manufacturers PFN for Nema 42

Drive the world with planetary transmission and lead the future with precision manufacturing

Product features:

1. Hole output square flange structure

2. Straight gear transmission, single cantilever structure, simple design,extremely cost-effective

3. Durable and reliably efficient

4. The input shaft can be opened with a keyway

5. Return clearance 8-16arcmin

Specification range: 60-160

Speed ratio range: 3-100

Accuracy range: 8-16arcmin

Get a free quote

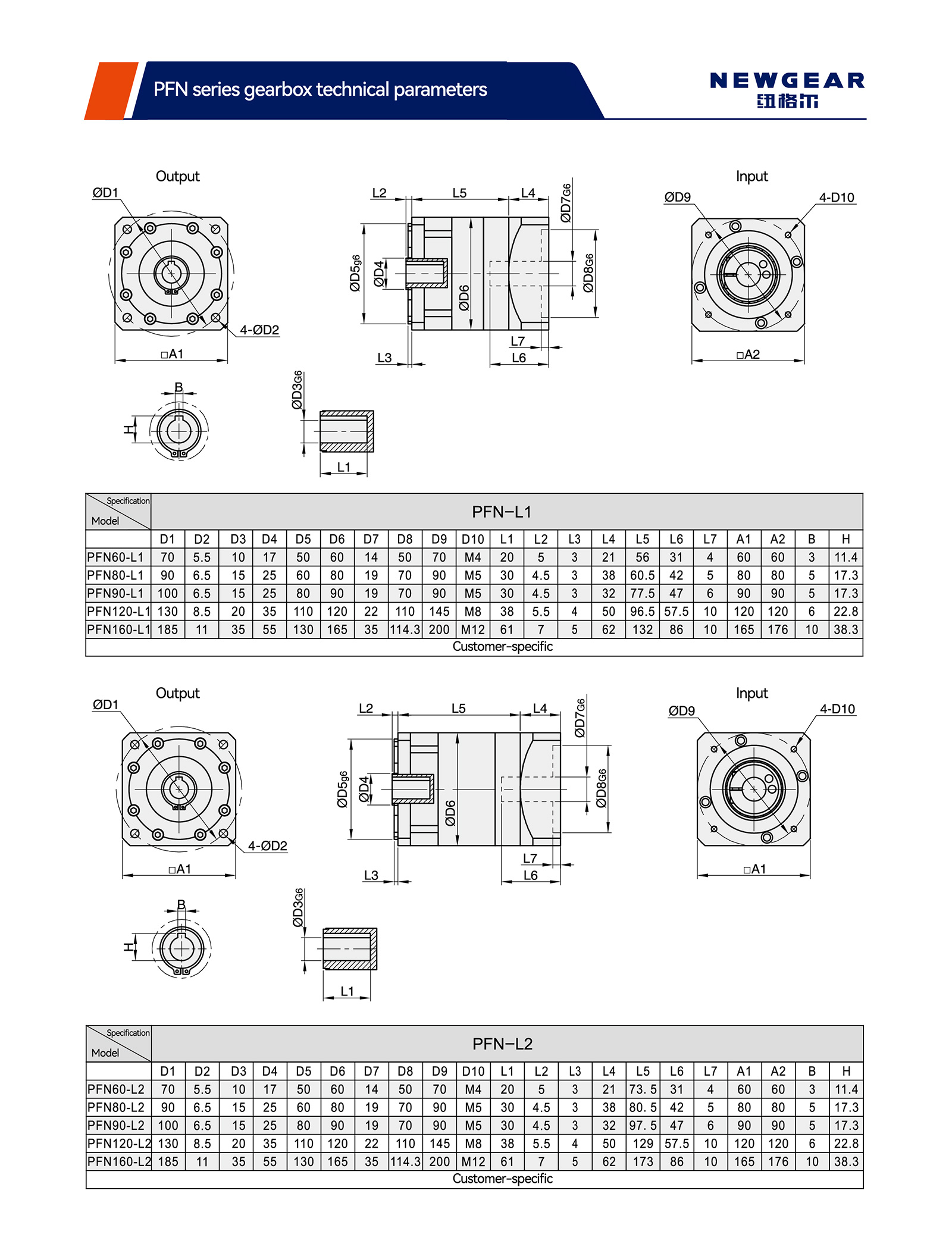

Technical Parameters			Model Series	PFN60	PFN80	PFN90	PFN120	PFN160
Maximum Torque			Nm	1.5 Time Rated Torque
Emergency Braking Torque			Nm	2 Time Rated Torque
Maximum Allowable Radial Force			N	240	400	450	1240	2250
Maximum Allowable Axial Force			N	220	420	430	1000	1500
Torsion Rigidity			Nm/arcmin	1.8	4.7	4.85	11	35
Maximum Input Speed			rpm	8000	6000	6000	6000	4000
Rated Input Speed			rpm	4000	3500	3500	3500	3000
Noise			dB	≤58	≤60	≤60	≤65	≤70
Average Life Span			h	20000
Full Load Efficiency			%	L1≥96% L2≥94%
Backlash	P1	L1	arcmin	≤8	≤8	≤8	≤8	≤8
	P1	L2	arcmin	≤12	≤12	≤12	≤12	≤12
	P2	L1	arcmin	≤16	≤16	≤16	≤16	≤16
	P2	L2	arcmin	≤20	≤20	≤20	≤20	≤20
Moment of Inertia	L1	3	Kg.cm°	0.46	0.77	1.73	12.78	36.72
		4	Kg.cm2	0.46	0.77	1.73	12.78	36.72
		5	Kg.cm2	0.46	0.77	1.73	12.78	36.72
		7	Kg.cm°	0.41	0.65	1.42	11.38	34.02
		8	Kg.cm2	/	0.65	1.42	11.38	34.02
		10	Kg.cm2	0.41	0.65	1.42	11.38	34.02
	L2	12	Kg.cm2	0.44	0.72	1.49	12.18	34.24
		15	Kg.cm2	0.44	0.72	1.49	12.18	34.24
		16	Kg.cm'	0.44	0.72	1.49	12.18	34.24
		20	Kg.cm2	0.44	0.72	1.49	12.18	34.24
		25	Kg.cm2	0.44	0.72	1.49	12.18	34.24
		28	Kg.cm'	0.44	0.72	1.49	12.18	34.24
		30	Kg.cm2	0.44	0.72	1.49	12.18	34.24
		35	Kg.cm2	0.44	0.72	1.49	12.18	34.24
		40	Kg.cm°	0.44	0.72	1.49	12.18	34.24
		50	Kg.cm2	0.34	0.58	1.25	11.48	34.02
		70	Kg.cm2	0.34	0.58	1.25	11.48	34.02
		100	Kg.cm°	0.34	0.58	1.25	11.48	34.02
