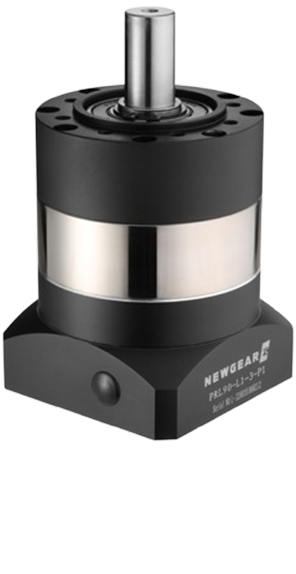

Newgear Servo Planetary Gearbox PRL for Manufacturing & Processing Machinery

Drive the world with planetary transmission and lead the future with precision manufacturing

Product features:

1. Round flange shaft output, a simple grade gearbox with fully customizable input and output design

2. Straight gear transmission, single cantilever structure, extremely cost-effective

3. Durable and reliably efficient

4. The input shaft can be opened with a keyway

5. Return clearance 8-16arcmin

Specification range: 40-160

Speed ratio range: 3-100

Accuracy range: 8-16arcmin

Get a free quote

Technical Parameters			Model Series	PRL40	PRL60	PRL80	PRL90	PRL120	PRL160
Maximum Torque			Nm	1.5 Time Rated Torque
Emergency Braking Torque			Nm	2 Time Rated Torque
Maximum Allowable Radial Force			N	185	240	400	450	1240	2250
Maximum Allowable Axial Force			N	150	220	420	430	1000	1500
Torsion Rigidity			Nm/arcmin	0.7	1.8	4.7	4.85	11	35
Maximum Input Speed			rpm	8000	8000	6000	6000	6000	4000
Rated Input Speed			rpm	4500	4000	3500	3500	3500	3000
Noise			dB	≤55	≤58	≤60	≤60	≤65	≤70
Average Life Span			h	20000
Full Load Efficiency			%	L1≥96% L2≥94%
Backlash	P1	L1	arcmin	≤8	≤8	≤8	≤8	≤8	≤8
	P1	L2	arcmin	≤12	≤12	≤12	≤12	≤12	≤12
	P2	L1	arcmin	≤16	≤16	≤16	≤16	≤16	≤16
	P2	L2	arcmin	≤20	≤20	≤20	≤20	≤20	≤20
Moment of Inertia	L1	3	Kg.cm°	0.10	0.46	0.77	1.73	12.78	36.72
		4	Kg.cm2	0.10	0.46	0.77	1.73	12.78	36.72
		5	Kg.cm2	0.10	0.46	0.77	1.73	12.78	36.72
		7	Kg.cm°	0.06	0.41	0.65	1.42	11.38	34.02
		8	Kg.cm2	/	/	0.65	1.42	11.38	34.02
		10	Kg.cm2	0.06	0.41	0.65	1.42	11.38	34.02
	L2	12	Kg.cm2	0.08	0.44	0.72	1.49	12.18	34.24
		15	Kg.cm2	0.08	0.44	0.72	1.49	12.18	34.24
		16	Kg.cm'	0.08	0.44	0.72	1.49	12.18	34.24
		20	Kg.cm2	0.08	0.44	0.72	1.49	12.18	34.24
		25	Kg.cm2	0.08	0.44	0.72	1.49	12.18	34.24
		28	Kg.cm'	0.08	0.44	0.72	1.49	12.18	34.24
		30	Kg.cm2	0.08	0.44	0.72	1.49	12.18	34.24
		35	Kg.cm2	0.08	0.44	0.72	1.49	12.18	34.24
		40	Kg.cm°	0.08	0.44	0.72	1.49	12.18	34.24
		50	Kg.cm2	0.05	0.34	0.58	1.25	11.48	34.02
		70	Kg.cm2	0.05	0.34	0.58	1.25	11.48	34.02
		100	Kg.cm°	0.05	0.34	0.58	1.25	11.48	34.02
