Precision Guide Shafts: The Backbone of Modern Engineering Solutions

Apr. 07, 2026 Views:2

In the realm of engineering and manufacturing, precision is paramount. As industries evolve, the demand for components that can deliver exceptional accuracy and reliability has never been higher. Among these components, precision guide shafts stand out as critical elements that facilitate movement and alignment in various applications. At iHF Group, we specialize in providing precision guide shafts that offer extensive dimensional flexibility, catering to a wide range of design requirements.

Understanding Precision Guide Shafts

Precision guide shafts are cylindrical components designed to provide linear motion and support for moving parts in machinery. Their primary function is to guide and align other components, ensuring smooth operation and reducing wear and tear. The importance of precision guide shafts cannot be overstated, as they play a vital role in applications ranging from micro precision instruments to large industrial equipment.

Dimensional Flexibility: A Key Advantage

One of the standout features of our precision guide shafts at iHF Group is their dimensional flexibility. With a diameter range from 3mm to 50mm and customizable lengths from 10mm to 1500mm, our guide shafts can be tailored to meet the specific needs of any project. This flexibility allows engineers and designers to integrate our products seamlessly into their systems, whether they are working on compact devices or expansive machinery.

Micro Precision Instruments

In the world of micro precision instruments, every millimeter counts. Our precision guide shafts are designed to meet the stringent requirements of applications such as medical devices, laboratory equipment, and precision measuring tools. The ability to customize lengths and diameters ensures that these instruments can achieve the highest levels of accuracy and reliability.

Large Industrial Equipment

Conversely, in large industrial settings, the demands on guide shafts can be vastly different. Heavy machinery and equipment require robust components that can withstand significant loads and harsh operating conditions. Our precision guide shafts are engineered with a solid structure, ensuring durability and performance even in the most challenging environments. The versatility in dimensions allows for easy integration into various industrial applications, from conveyor systems to robotic arms.

Material Considerations

The performance of precision guide shafts is also influenced by the materials used in their construction. At iHF Group, we offer guide shafts made from high-quality materials that enhance their strength and longevity. Options may include stainless steel for corrosion resistance, aluminum for lightweight applications, and specialized alloys for enhanced performance. By selecting the right material, engineers can optimize the performance of their systems while ensuring the longevity of the components.

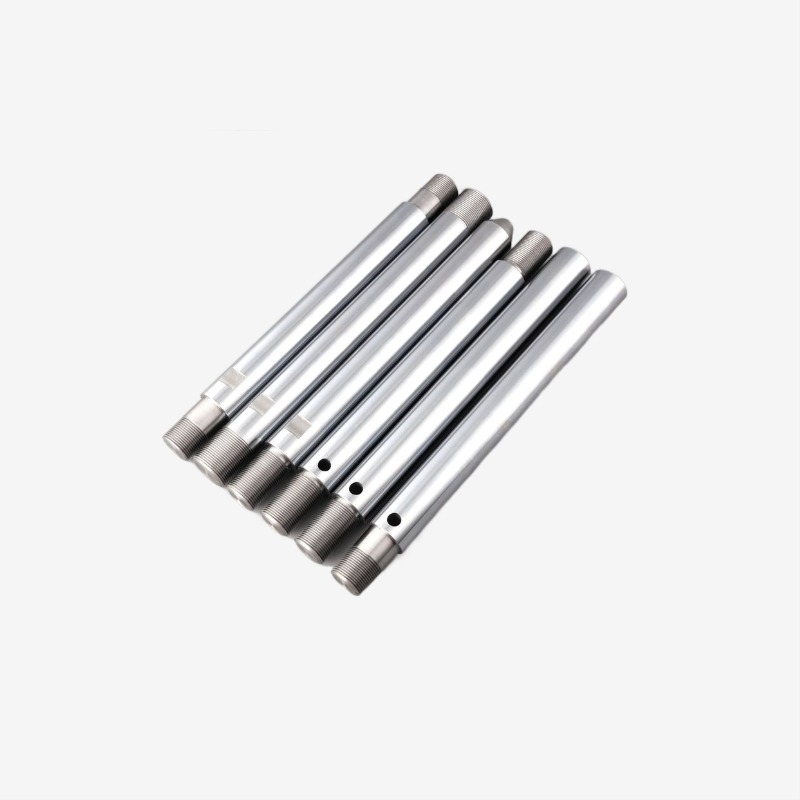

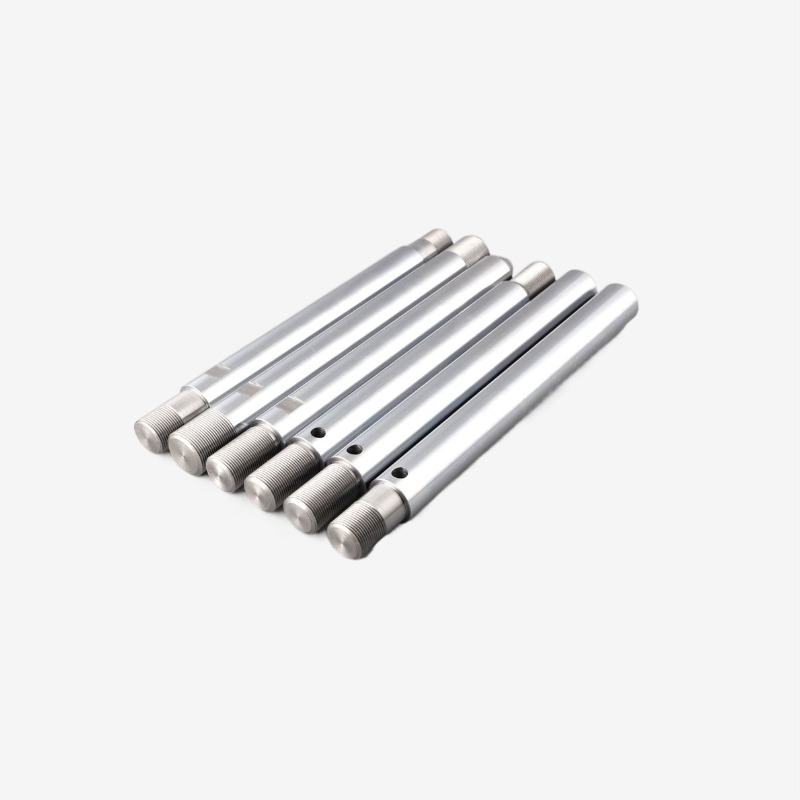

导向轴2.jpg 导向轴3.jpg

Applications Across Industries

The versatility of precision guide shafts extends across multiple industries. In the automotive sector, they are used in assembly lines and robotic systems to ensure precise movements. In the aerospace industry, guide shafts play a crucial role in the operation of various mechanisms, from landing gear to control surfaces. Additionally, the electronics industry relies on precision guide shafts for the assembly of devices, ensuring that components are accurately aligned during production.

Customization and Engineering Support

At iHF Group, we understand that each project comes with its unique challenges. That’s why we offer extensive customization options for our precision guide shafts. Our engineering team is available to collaborate with clients, providing support in selecting the right dimensions, materials, and configurations to meet specific application requirements. This level of personalized service sets us apart in the industry, ensuring that our clients receive solutions tailored to their needs.

In conclusion, precision guide shafts are essential components that contribute significantly to the efficiency and reliability of various engineering applications. With their extensive dimensional flexibility, solid structure, and customizable options, iHF Group’s precision guide shafts are designed to meet the diverse needs of modern industries. Whether you are developing micro precision instruments or large industrial equipment, our guide shafts provide the precision and performance required to excel in today’s competitive landscape.

For more information on our precision guide shafts and how they can benefit your projects, please visit our website or contact our engineering team for personalized assistance.
