Newgear Spur Right Angle Bevel Gearbox PVFN for Nema 17

Drive the world with planetary transmission and lead the future with precision manufacturing

Product features:

1. Spiral bevel gear mechanism to achieve right-angle steering output

2. Square flange shaft output

3. Paired with straight gear transmission, single cantilever structure, extremely cost-effective

4. The input shaft can be opened with a keyway

5. Return clearance 8-16arcmin

Advantages:

Space-Saving Design: Right-angle configuration allows compact integration in machinery layouts.
High Torque Capacity: Capable of handling demanding loads while maintaining smooth operation.
Precision Control: Low backlash ensures accurate positioning for stepper motor applications.
Durable and Reliable: High-quality materials and precise engineering guarantee longevity.
Customizable Options: OEM flexibility provides tailored solutions for different applications.

Specification range: 60-160

Speed ratio range: 3-100

Accuracy range: 8-16arcmin

The Newgear Spur Right Angle Bevel Gearbox PVFN for Nema 17 combines compact design, high torque, and precision motion control in one efficient package. With low backlash, durable construction, and OEM customization options, the PVFN gearbox ensures reliable, precise, and smooth operation for a variety of industrial and automation applications.

For manufacturers and engineers seeking space-saving, high-performance, and customizable right-angle gear solutions, the PVFN series delivers exceptional value and versatility.

Get a free quote

Newgear Spur Right Angle Bevel Gearbox PVFN for Nema 17

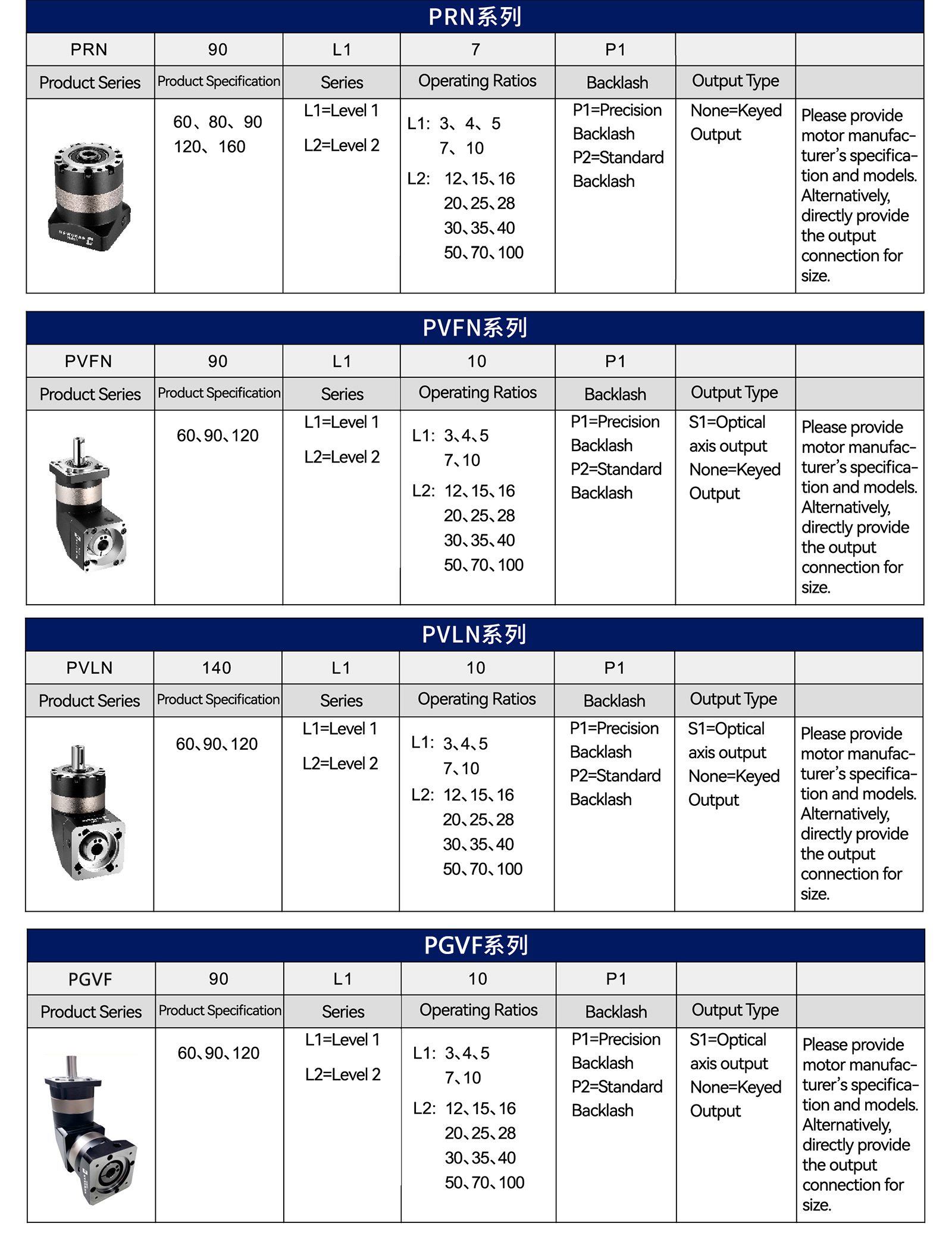

Technical Parameters			Model Series	PVFN60	PVFN90	PVFN120
Maximum Torque			Nm	1.5 Time Rated Torque
Emergency Braking Torque			Nm	2 Time Rated Torque
Maximum Allowable Radial Force			N	240	450	1240
Maximum Allowable Axial Force			N	220	430	1000
Torsion Rigidity			Nm/arcmin	1.8	4.85	11
Maximum Input Speed			rpm	8000	6000	6000
Rated Input Speed			rpm	4000	3500	3500
Noise			dB	≤58	≤60	≤65
Average Life Span			h	20000
Full Load Efficiency			%	L1≥95% L2≥92%
Backlash	P1	L1	arcmin	≤8	≤8	≤8
	P1	L2	arcmin	≤12	≤12	≤12
	P2	L1	arcmin	≤16	≤16	≤16
	P2	L2	arcmin	≤20	≤20	≤20
Moment of Inertia	L1	3	Kg.cm°	0.46	1.73	12.78
		4	Kg.cm2	0.46	1.73	12.78
		5	Kg.cm2	0.46	1.73	12.78
		7	Kg.cm°	0.41	1.42	11.38
		10	Kg.cm2	0.41	1.42	11.38
	L2	12	Kg.cm2	0.44	1.49	12.18
		15	Kg.cm2	0.44	1.49	12.18
		16	Kg.cm'	0.44	1.49	12.18
		20	Kg.cm2	0.44	1.49	12.18
		25	Kg.cm2	0.44	1.49	12.18
		28	Kg.cm'	0.44	1.49	12.18
		30	Kg.cm2	0.44	1.49	12.18
		35	Kg.cm2	0.44	1.49	12.18
		40	Kg.cm°	0.44	1.49	12.18
		50	Kg.cm2	0.34	1.25	11.48
		70	Kg.cm2	0.34	1.25	11.48
		100	Kg.cm°	0.34	1.25	11.48

Technical Parameters		Model Series	PVFN60	PVFN90	PVFN120
	Specification	Ratio	PVFN60	PVFN90	PVFN120
Rated Torque	L1	3	27	96	161
		4	40	122	210
		5	40	122	210
		7	34	95	170
		10	16	56	86
	L2	12	27	96	161
		15	27	96	161
		16	40	122	210
		20	40	122	210
		25	40	122	210
		28	40	122	210
		30	27	96	161
		35	40	122	210
		40	40	122	210
		50	40	122	210
		70	34	95	170
		100	16	56	86
Degree of protection		IP65
Operating Temperature		—10°C to 90°C
Weight（Kg)	L1		1.7	4.4	10
Weight（Kg)	L2		1.9	5.0	13
