iHF T5/T10 Light-Duty Conveying Timing belt Pulley

iHF T-Series Trapezoidal Tooth Timing Pulleys

Product features:

Designed for lightweight conveying

Low inertia design: Constructed of lightweight materials (such as aluminum alloy), it reduces energy consumption and is suitable for low- to medium-speed, long-duration operation.

Suitable for light loads: Optimized structure effectively transmits tension on light conveyor belts, preventing excessive wear.

Reduced drive power requirements: Reduces motor load and improves energy efficiency.

Smooth synchronous transmission

The tooth profile perfectly matches the synchronous belt, ensuring slip-free operation and a stable transmission ratio.

Prevents belt deviation and vibration, ensuring smooth transport of the conveyed goods.

Low operating noise, suitable for quiet production environments (such as food processing workshops and electronic assembly rooms).

Improves conveying efficiency

Precise tooth pitch: Maintains synchronization of conveyor speed and position, minimizing product misalignment.

High meshing accuracy: Reduces belt wear and extends belt and pulley life.

Suitable for assembly lines with long, continuous operation.

Deliver cost-effective reliability with 5mm and 10mm standard pitch specifications. Featuring optimized tooth profile design for stable meshing performance, engineered specifically for light-duty transmission and standard torque conditions.

Get a free quote

iHF T5/T10 Light-Duty Conveying Timing belt Pulley

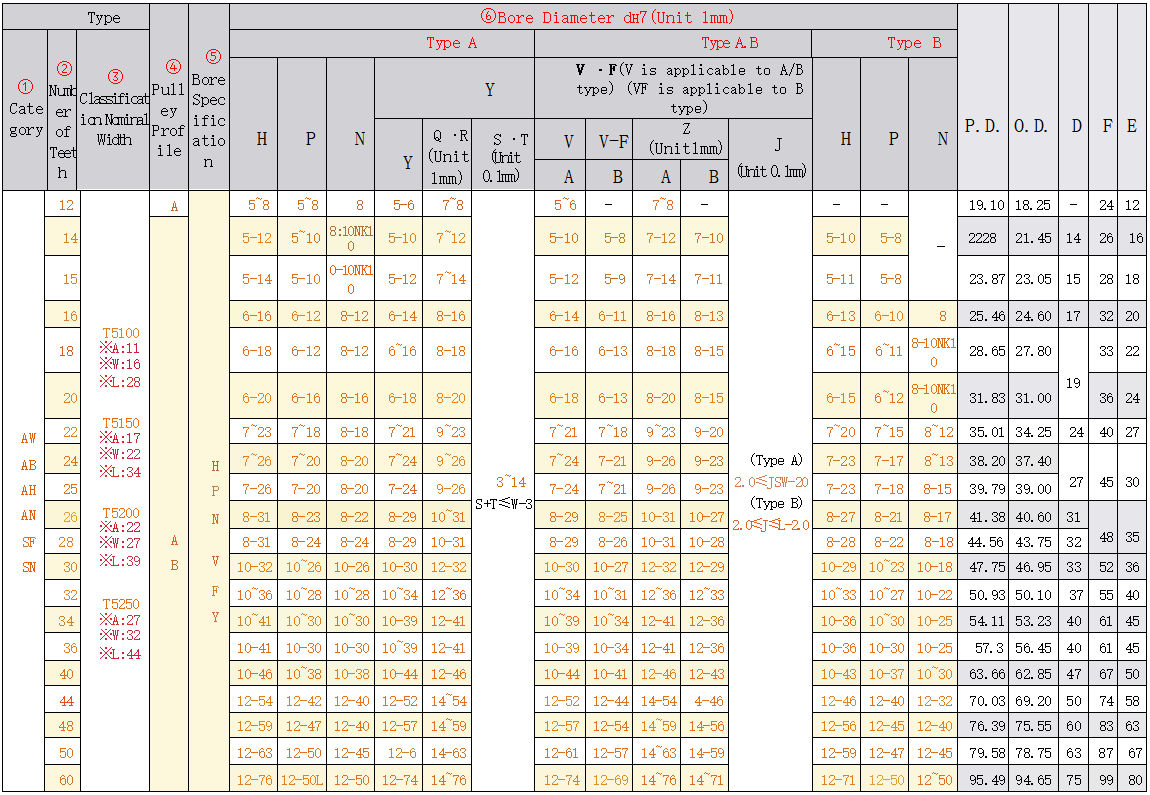

Timing Pulley T5

Type				Material		Surface Treatment
Belt Width: 10mm	Belt Width: 15mm	Belt Width: 20mm	Belt Width: 25mm	Pulley	Flange
A：11 W：16 L：28	A：17 W：22 L：34	A:22 W: 27 L: 39	A：27 W：32 L：44	Pulley	Flange
AW**T5100	AW**T5150	AW**T5200	AW**T5250	6061	6061	Natural Anodizing
AB**T5100	AB**T5150	AB**T5200	AB**T5250			Black Anodizing
AH**T5100	AH**T5150	AH**T5200	AH**T5250			Hard Anodizing
AN**T5100	AN**T5150	AN**T5200	AN**T5250			Nickel Plating
SF**T5100	SF**T5150	SF**T5200	SF**T5250	S45C	SPCC	Black Oxide Coating
SN**T5100	SN**T5150	SN**T5200	SN**T5250	S45C	SPCC	Nickel Plating

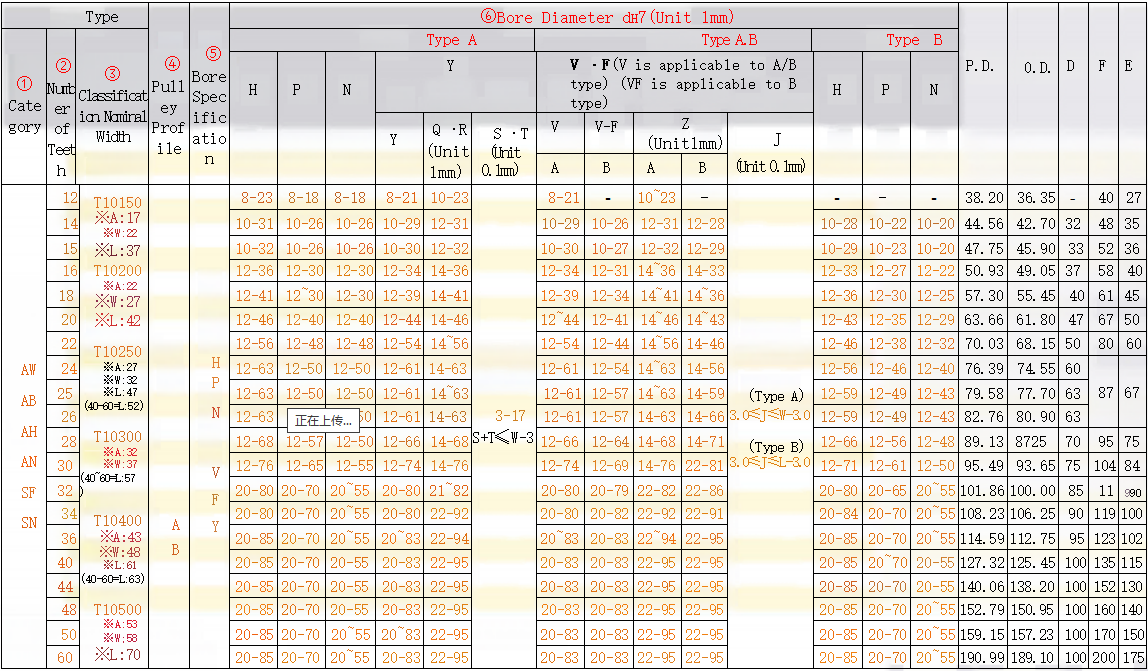

Timing Pulley T10

Type						Material		Surface Treatment
Belt Width: 15mm	Belt Width: 20mm	Belt Width: 25mm	Belt Width: 30mm	Belt Width: 40mm	Belt Width: 50mm	Pulley	Flange
A：17 W：22 L：37	A:22 W: 27 L: 42	A：27 W：32 L：47(52)	A：32 W：37 L：52(57)	A：43 W：48 L：61(63)	A：53 W：58 L：70	Pulley	Flange
AW**T10150	AW**T10200	AW**T10250	AW**T10300	AW**T10400	AW**T10500	6061	6061	Natural Anodizing
AB**T10150	AB**T10200	AB**T10250	AB**T10300	AB**T10400	AB**T10500			Black Anodizing
AH**T10150	AH**T10200	AH**T10250	AH**T10300	AH**T10400	AH**T10500			Hard Anodizing
AN**T10150	AN**T10200	AN**T10250	AN**T10300	AN**T10400	AN**T10500			Nickel Plating
SF**T10150	SF**T10200	SF**T10250	SF**T10300	SF**T10400	SF**T10500	S45C	SPCC	Ferroferric Oxide Protective Film
SN**T10150	SN**T10200	SN**T10250	SN**T10300	SN**T10400	SN**T10500	S45C	SPCC	Nickel Plating

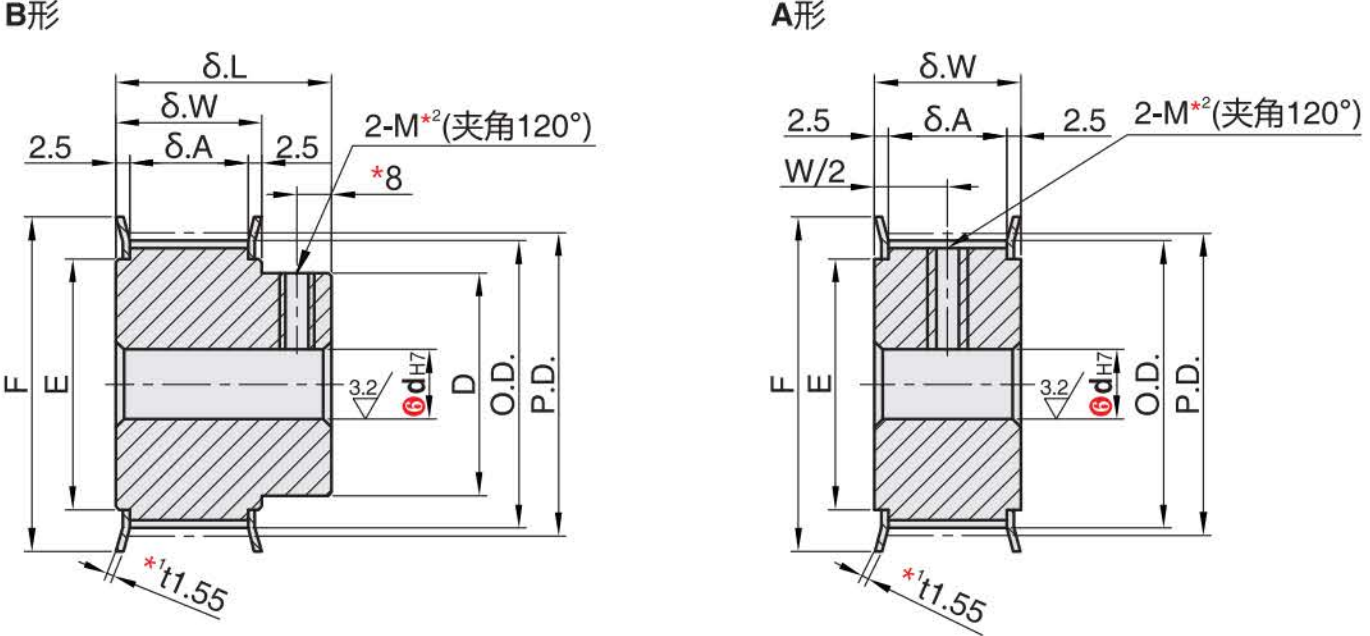

Timing Pulley T5

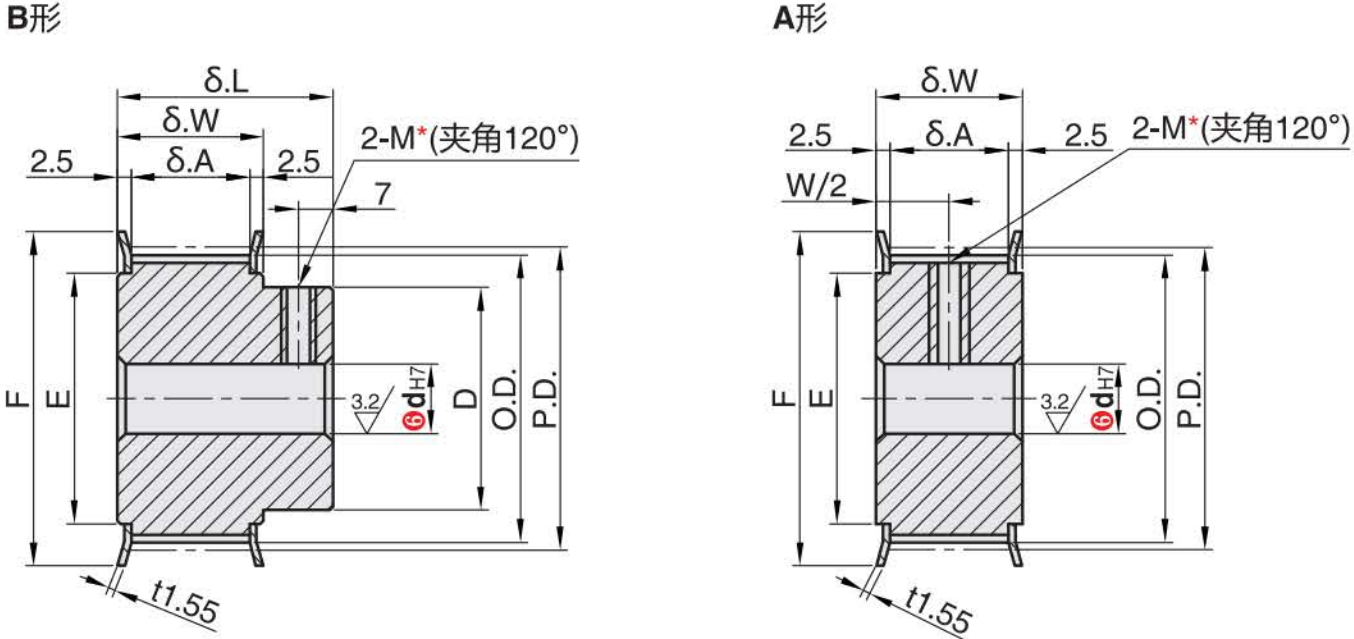

Timing Pulley T10

Timing Pulley T5

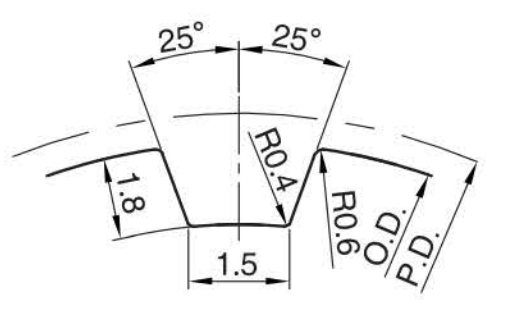

④Pulley Profile

Tooth groove dimensions vary slightly depending on the number of teeth. Tooth pitch (5mm)

For shaft hole specifications H (round hole), V, F (stepped hole), and Y (stepped hole at both ends), there are no threaded holes.
The inside of the shaft hole may not be surface treated.
* For pulleys with type A and shaft holes with P or N holes, the two threaded holes are located approximately 120° or 90° from the center of the tooth groove.

Timing Pulley T10

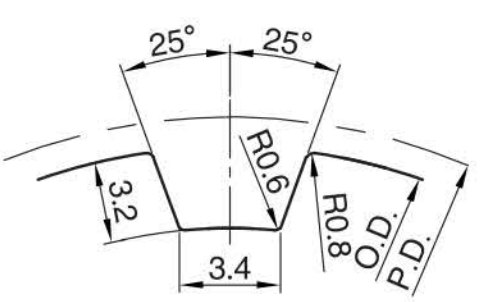

④Pulley Profile

Tooth pitch dimensions vary slightly depending on the number of teeth. Tooth pitch (10mm)

For 34, 50, and 60 teeth, t = 2 (turned flange).
For shaft hole specifications H (round hole), V, F (stepped hole), and Y (stepped hole at both ends), no threaded holes are present.
The inside of the shaft hole may not be surface treated.
For T10250 and T10300 pulleys with 44 to 60 teeth, the hole pitch is 11; for T10400 and T10600 pulleys, the hole pitch is (L-W)/2.
The dimensions in parentheses within the L dimension refer to pulleys with 44 to 60 teeth.
* For pulleys with A-type pulleys and P or N-type shaft holes, the two threaded holes are located approximately 120° or 90° from the center of the tooth gap.
