High-Performance Silent Type Carrier Chain Solutions for Modern Machinery

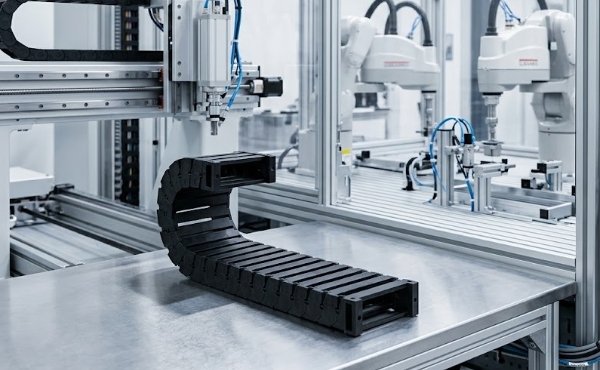

In the modern era of high-speed automation and precision robotics, the mechanical infrastructure supporting power and data cables is often the unsung hero of the production line. However, as factory floors move toward higher densities and cleanroom standards, traditional cable tracks—often characterized by disruptive noise and frictional vibration—are being phased out. The Silent Type Carrier Chain has emerged as the definitive solution for noise-sensitive environments. iHF Group, a global pioneer in motion control components, has engineered a new generation of carriers that balance acoustic suppression with extreme mechanical durability.

1. Material Science: The High-Strength Nylon Advantage

The performance of a silent type cable carrier is fundamentally rooted in its molecular composition. Unlike standard plastics that may become brittle under repetitive stress, iHF Group utilizes a proprietary High-Strength Nylon Material reinforced with specialized glass fibers.

This advanced polymer provides an exceptional strength-to-weight ratio, allowing the carrier to support heavy hydraulic hoses and multi-core electrical cables over long travel distances without sagging. More importantly, the inherent self-lubricating properties of our high-grade nylon reduce the friction coefficient at the link pivots, which is the primary source of structural wear in traditional chains.

2. Acoustic Engineering for Silent Operation

Noise in a factory environment is more than just an annoyance; it is often a symptom of mechanical vibration that can interfere with sensitive laser sensors or high-resolution imaging equipment. Our Silent Type Carrier Chain features a unique "soft-stroke" link geometry.

By redesigning the radius stop-dogs—the parts that limit the chain’s bending—iHF Group has eliminated the "clicking" sound typical of standard drag chains. The precision-fit joints ensure that each link engages smoothly, resulting in a decibel reduction of up to 25% compared to conventional models. This makes them ideal for laboratory automation, medical imaging suites, and high-end semiconductor fabrication plants.

3. The Modular Philosophy: Easy Installation & Customization

Time is the most expensive commodity on a production floor. Traditional closed-loop carriers often require hours of disassembly to replace a single damaged cable. iHF Group’s modular silent type carrier chain addresses this through an innovative "snap-open" crossbar design.

● Rapid Assembly: Links can be added or removed using simple hand tools, allowing for on-site length adjustments.

● Integrated Separators: Internal shelving and vertical separators allow for the physical isolation of power and data lines, preventing electromagnetic interference (EMI) and reducing cable-on-cable friction.

● Easy Maintenance: The modular nature means that if a segment is damaged, only that specific link needs replacement, significantly lowering the Total Cost of Ownership (TCO).

视频

4. Dynamic Kinematics: Flexible & Smooth Motion

A silent type carrier chain must do more than just hold cables; it must facilitate flexible and smooth motion across high-acceleration cycles. The optimized pitch design of our chains minimizes the "polygon effect"—the jerky movement often seen in large-link chains.

Whether integrated into a 3D gantry system or a long-travel linear actuator, the iHF Group carrier ensures a consistent rolling radius. This stability is critical for preserving the minimum bend radius of fiber optic cables, which are notoriously sensitive to micro-fractures caused by erratic movement.

5. Strategic ROI: Cost-Effective Performance

While the technical specifications rival high-end specialty alloys, the cost-effective performance of nylon-based silent carriers remains a primary driver for B2B procurement. By reducing the frequency of cable failures and eliminating the need for external lubrication systems, the iHF Group solution pays for itself through increased machine uptime. Our chains are designed to withstand millions of cycles, ensuring that your investment translates into decades of reliable service.

Technical Q&A

Q: Can the Silent Type Carrier Chain handle high-speed accelerations above 5m/s²?

A: Absolutely. Due to the lightweight nature of the high-strength nylon and the precision-molded joints, iHF Group carriers are rated for high-velocity applications. The reduced mass minimizes centrifugal force at the curve, ensuring stability at high speeds.

Q: Is this chain suitable for ISO Class 4 or higher cleanrooms?

A: Yes. The silent operation is a direct result of reduced friction, which inherently means lower particle emission. Many of our silent type cable carriers are specifically tested for low-dust generation in semiconductor environments.

Q: How do I calculate the correct bend radius for my application?

A: As a general rule, the bend radius of the carrier should be at least 10 times the diameter of the thickest cable being housed. iHF Group offers a variety of radius options to ensure your cables are never over-stressed.
