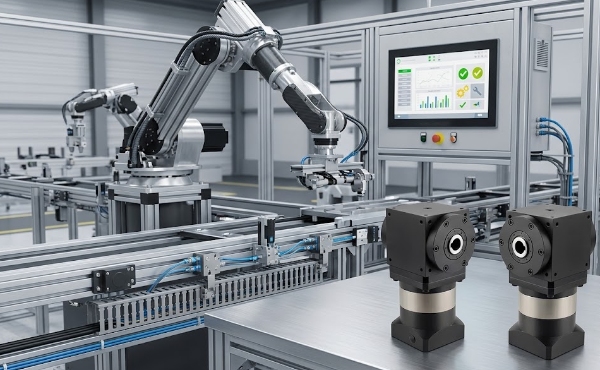

How Dual-Hole Output Gearbox Commutators Improve Torque Stability and Transmission Efficiency

In the complex landscape of industrial automation and mechanical power transmission, the "Commutator"—often referred to as a right-angle gearbox—serves as the critical nexus for direction change and torque distribution. As modern manufacturing moves toward higher speeds and greater precision, the demand for hardware that can withstand extreme mechanical stress without frequent downtime has surged. The Dual-Hole Output Gearbox Commutator stands at the forefront of this evolution, offering a symmetrical solution to torque management that single-output systems simply cannot match.

At iHF Group, we view the gearbox not merely as a component, but as the heartbeat of the production line. Our latest engineering series focuses on the synergy between dual-shaft geometry and heavy-duty load bearing, ensuring that your transmission systems operate with surgical precision.

1. Dual-Shaft Output: The Architecture of Synchronized Torque

The core value of a dual-shaft output gearbox commutator lies in its ability to drive two parallel mechanical branches simultaneously from a single power source. This dual-shaft output configuration ensures perfect synchronization, which is vital in applications such as automated conveyor gating, synchronized lifting jacks, and multi-axis packaging machinery.

By utilizing standardized dimensions, iHF Group ensures that these units are "drop-in" compatible with global industrial frameworks. This standardization reduces the engineering overhead during the design phase, allowing system integrators to utilize off-the-shelf precision without custom fabrication costs.

2. High-Capacity Loading: The Tapered Roller Bearing Advantage

One of the most common failure points in standard gearboxes is bearing fatigue under combined loads. Traditional ball bearings often fail when subjected to significant axial thrust or high radial forces. To combat this, iHF Group has engineered the dual-hole output commutator with premium tapered roller bearings.

The geometric design of tapered rollers allows them to support massive axial and radial load-bearing capacities simultaneously. By distributing the load across a larger surface area of the roller, these bearings minimize friction and heat generation. For the end-user, this translates to a gearbox that can handle the heavy tension of belt drives or the intense thrust of screw actuators without compromising the integrity of the internal gear mesh.

3. Helical Bevel Gear Precision: Contact Strength and Bending Resistance

At the heart of the Dual-Hole Output Gearbox Commutator is the gear set. We utilize high-grade helical bevel gears, which are superior to straight bevel gears in terms of noise reduction and load distribution.

The professional installation and adjustment of these gears are paramount. iHF Group technicians utilize precision tooth-contact analysis to ensure optimal contact strength. By maximizing the effective tooth surface area during engagement, we significantly increase the bending strength of each gear tooth. This meticulous adjustment prevents tooth breakage under sudden shock loads or high-torque startups—common occurrences in heavy-duty industrial cycles.

4. Input Flexibility: A Wide Variety of Connection Specifications

Versatility is a mechanical necessity. Understanding that drive motors come in diverse configurations, we provide a complete range of input connection specifications. Whether your system utilizes NEMA/IEC motor flanges, keyway inputs, or shrink-disc couplings, the iHF Group series offers a wide variety of options. This modularity allows engineers to optimize the power density of their drive trains without being restricted by proprietary interface limitations.

5. The "Fit and Forget" Philosophy: Maintenance-Free Operation

In a 24/7 manufacturing environment, the cost of an oil change is not just the price of the lubricant—it is the cost of lost production time. iHF Group addresses this with a sophisticated sealed design.

Our Dual-Hole Output Gearbox Commutators are factory-lubricated with high-synthetic greases and hermetically sealed. This maintenance-free approach eliminates the risk of oil leaks, contamination, and the need for periodic oil changes. The result is an exceptionally long operational life where the gearbox remains the most reliable link in your mechanical chain, regardless of whether it is installed in a cleanroom or a dusty factory floor.
