High-Precision Helical Gear Reducers for Smooth and Quiet Power Transmission

In modern industrial automation, precision robotics, and heavy-duty mechanical transmission systems, the speed reducer is not merely a speed-limiting component; it is the structural cornerstone of positional accuracy and torque multiplication. As servomotors trend toward higher rotational speeds and compact footprints, the demand for secondary transmission units that can handle these dynamic inputs without sacrificing backlash limits or introducing acoustic noise has intensified.

When designing high-performance multi-axis machinery, selecting a generic gearbox can introduce unwanted variables, such as structural deflection, micro-backlash degradation, and localized thermal spikes. To address these operational challenges, iHF Group has developed an advanced powertrain solution centered around our flagship Helical Gear Reducer series. By combining precision helical profiling with an innovative right-angle structural envelope, this speed reduction system redefines efficiency, rigidity, and long-term positioning reliability.

The Geometry of Silence: Right-Angle Spiral Bevel Integration

To understand the mechanical superiority of the iHF Group design, one must first look at the orientation of its gearing stages. Standard inline gearboxes often require longer mounting footprints, which complicates spacing in multi-axis articulated robots or compact factory floors.

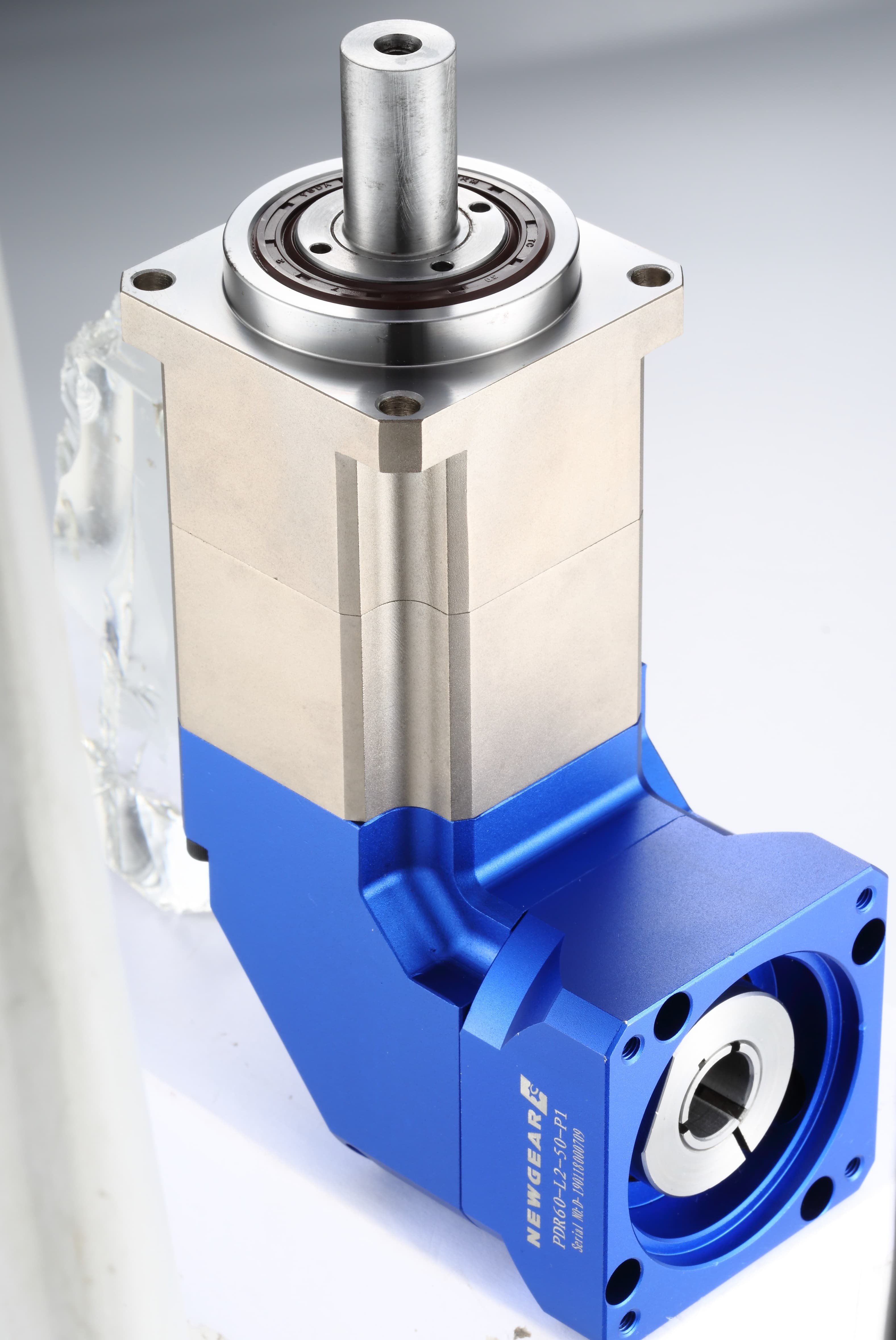

Our system solves this packaging constraint by delivering a space-saving right-angle output via spiral bevel gears.

Unlike straight-toothed bevel gears, which suffer from sudden tooth-to-tooth impact and high audible pitch during high-speed engagement, spiral bevel gears feature a curved, helical tooth line. This geometry ensures a gradual, rolling tooth engagement path:

● Hydrodynamic Lubrication Optimization: The smooth rolling interaction allows a consistent fluid film of oil to remain between the gear teeth, significantly lowering friction.

● Acoustic Mitigation: The gradual contact profile ensures exceptionally smooth, quiet operation, making it ideal for medical automation, printing lines, and cleanroom environments.

● Bi-Directional High Load Handling: The spiral teeth distribute thrust forces evenly across the gear blank, allowing the right-angle configuration to manage aggressive forward-reverse indexing cycles smoothly.

Maximizing Torsional Rigidity: The Double-Support Cage Architecture

In high-speed, high-inertia indexing applications—such as CNC gantry systems or automated pick-and-place packaging arms—sudden acceleration and deceleration subject the inner gear carrier to massive torsional twisting forces. If the internal carrier deflects by even a few microns, the gear alignment alters, leading to accelerated tooth wear and immediate backlash degradation.

The high-rigidity helical gear reducer engineered by iHF Group eliminates this structural vulnerability through an integrated design with a double-support cage structure. Instead of cantilevered planetary pins supported only at one end, our planetary gears are housed within a solid, dual-sided cage carrier.

This double-supported configuration delivers outstanding mechanical advantages:

● Elimination of Overhung Deflection: The dual-support carrier spreads radial and tangential forces equally across both ends of the planetary pins, preventing misalignment under maximum peak torque.

● High-Speed Precision Retention: By keeping the gear mesh perfectly parallel under variable loads, the integrated architecture maintains consistent micro-backlash performance over millions of operational cycles.

Enhancing Motor Alignment via Precision Axial and Collet Systems

A frequent cause of premature gearbox failure is improper motor shaft alignment during initial installation. Even a slight angular misalignment between the servomotor shaft and the input pinion creates parasitic radial loads, leading to oil seal leaks, bearing fatigue, and localized vibration.

iHF Group addresses this assembly risk by integrating an axial clearance adjustment and collet locking system.

The advanced collet mechanism wraps around the motor shaft uniformly, achieving dynamicrotational balance even at high input speeds. Coupled with our precise axial clearance adjustmentshims, technicians can perfectly trim the input depth. This robust alignment configuration enhancesoverall motor alignment and load capacity, neutralizing micro-vibrations and ensuring that 100% ofthe motor's torque is transferred into the geartrain without inducing heat.
