Why Industries Are Choosing Circular Flange Planetary Gearboxes for Precision Motion Control

In the high-stakes arena of industrial automation, the mechanical interface between a servo motor and its load is the ultimate arbiter of system performance. As manufacturing requirements shift toward higher cycle rates, sub-micron positioning, and extreme durability, traditional gear transmission systems often become the primary point of failure. Specifically, in applications involving high-speed reciprocating motion, standard gearboxes frequently suffer from backlash creep, bearing fatigue, and transmission ripple.

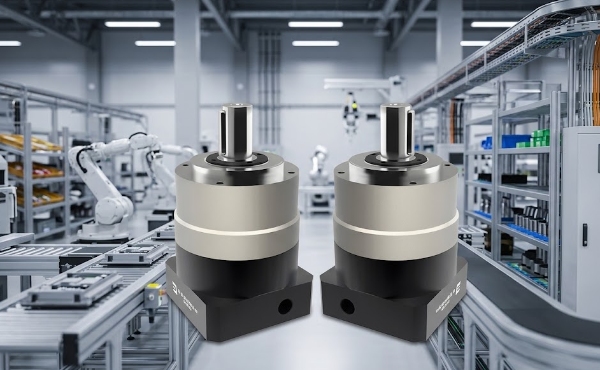

To address these critical engineering challenges, iHF Group has introduced the Circular Flange Planetary Gearbox - High-Precision PAL Series. This series represents a fundamental evolution in motion control, moving beyond simple speed reduction to provide a high-rigidity, low-vibration power transmission hub that thrives in the most demanding robotic and CNC environments.

Understanding the Circular Flange Planetary Gearbox

At its core, the Circular Flange Planetary Gearbox is designed to provide high torque transmission in a compact form factor. The PAL Series is characterized by its circular flange output and standardized dimensions, making it an ideal fit for a wide range of machinery. The threaded connection ensures a secure attachment, which is crucial for maintaining operational integrity under varying loads.

Precision Engineering for Optimal Performance

One of the standout features of the PAL Series is its higher precision compared to traditional straight-tooth circular flange outputs. This precision is achieved through meticulous engineering and design, which minimizes backlash and enhances the gearbox's ability to maintain accurate positioning. For applications requiring exact movements, such as robotics and CNC machinery, this level of precision is not just beneficial; it is essential.

Robust Design for Reliability

The double-supported cage-type planetary carrier structure is another hallmark of the PAL Series. This design not only ensures high reliability but also accommodates high-speed operations and frequent forward and reverse movements. In industries where machinery is subjected to rigorous use, such as automotive and aerospace, the ability to withstand these conditions without failure is a significant advantage.

Moreover, the gearbox features axial clearance adjustment, allowing for fine-tuning of the system to meet specific operational requirements. The input shaft can be keyed, providing additional flexibility in integration with various drive systems.

Enhanced Load Capacity and Smooth Operation

The helical gear transmission employed in the PAL Series contributes to smoother operation and increased load capacity. Unlike spur gears, helical gears engage more gradually, which reduces noise and vibration during operation. This feature is particularly beneficial in environments where noise reduction is critical, such as in medical equipment or high-precision manufacturing.

The low backlash characteristic of the Circular Flange Planetary Gearbox further enhances its suitability for applications requiring precise positioning. This is particularly important in servo motor applications, where even the slightest deviation can lead to significant operational inefficiencies.

Scientifically Designed for Greater Forces

The scientifically designed structure of the PAL Series is capable of withstanding greater axial and radial forces, making it a robust choice for demanding applications. Whether in conveyor systems, packaging machinery, or industrial automation, the ability to handle substantial loads without compromising performance is a key selling point for the iHF Group's Circular Flange Planetary Gearbox.

Conclusion: The Smart Choice for Modern Machinery

In conclusion, the Circular Flange Planetary Gearbox - High-Precision PAL Series from iHF Group represents a significant advancement in gearbox technology. Its combination of high precision, reliability, and robust design makes it an ideal choice for a variety of applications across multiple industries. As manufacturers continue to seek ways to improve efficiency and reduce operational costs, investing in high-quality components like the PAL Series gearbox is a strategic move that can yield substantial returns.

For those looking to enhance their machinery's performance, the iHF Group's Circular Flange Planetary Gearbox is not just an option; it is a necessity.
