The Geometry of Efficiency: Overcoming Axis Alignment Bottlenecks with Helical Bevel Speed Reducers

As industrial automation continues to evolve, equipment designers are under increasing pressure to maximize performance while minimizing installation space. Whether in packaging machinery, robotics, conveyor systems, semiconductor equipment, or automated production lines, compact mechanical designs have become a key competitive advantage.

One of the most effective ways to optimize machine layouts is through the use of a Single-Hole Output Right-Angle Gear Reducer. By utilizing advanced helical bevel gear technology, these reducers allow motors to be mounted at a 90-degree angle relative to the output shaft, creating a more compact and efficient transmission system.

For engineers seeking higher torque density, improved space utilization, and reliable long-term operation, right-angle gear reducers have become an increasingly popular choice.

⚙ What Is a Single-Hole Output Right-Angle Gear Reducer?

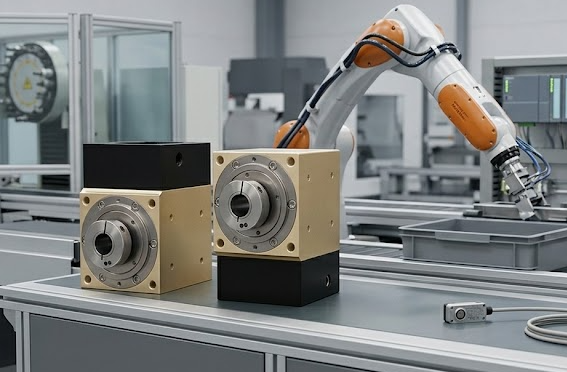

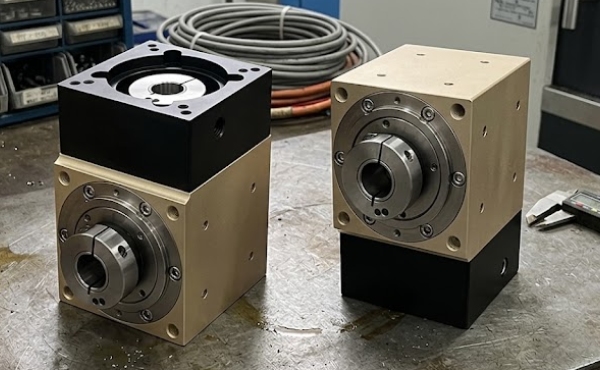

A Single-Hole Output Right-Angle Gear Reducer is a mechanical transmission device designed to reduce motor speed while increasing output torque through a 90-degree power transmission arrangement.

Unlike inline gearboxes, which require the motor and output shaft to remain on the same axis, right-angle gear reducers use precision helical bevel gears to redirect power efficiently.

This configuration provides:

✔ Compact equipment layouts

✔ Flexible installation options

✔ High transmission efficiency

✔ Smooth power delivery

✔ Improved machine integration

The single-hole output structure further simplifies mechanical connections and enables efficient coupling with various driven systems.

🚀 Why Helical Bevel Gears Matter

The core advantage of a modern right-angle gear reducer lies in its helical bevel gear design.

Compared with traditional straight bevel gears, helical bevel gears offer significant performance benefits.

✔ Higher Transmission Efficiency

The tooth geometry allows smoother engagement between gear surfaces, minimizing energy losses during operation.

✔ Lower Noise Levels

Gradual tooth contact reduces vibration and operating noise, making these reducers suitable for precision machinery and automated production environments.

✔ Enhanced Load Capacity

The larger contact area between meshing teeth improves load distribution, enabling the gearbox to handle higher torque requirements.

✔ Longer Service Life

Reduced shock loads and smoother operation contribute to lower wear rates and extended gearbox longevity.

For industrial users, these advantages directly translate into improved reliability and reduced maintenance costs.

🔹 Space-Saving Design: A Critical Advantage

Modern machinery often faces significant space limitations.

As production equipment becomes more integrated and multifunctional, designers need transmission systems that fit within increasingly compact structures.

The Single-Hole Output Right-Angle Gear Reducer addresses this challenge by allowing the motor to be installed perpendicular to the output shaft.

Benefits include:

✔ Reduced installation footprint

✔ More flexible machine architecture

✔ Simplified equipment layouts

✔ Easier integration into confined spaces

✔ Improved accessibility for maintenance

In industries where every millimeter matters, this compact design can significantly improve overall equipment efficiency.

⭐ Key Performance Advantages

Precision Motion Control

Many automated systems require highly accurate speed reduction and torque transmission.

A precision-engineered right-angle reducer delivers:

● Stable rotational accuracy

● Smooth acceleration and deceleration

● Consistent positioning performance

● Reduced backlash options for precision applications

These characteristics are particularly important in servo-driven systems.

High Torque Output

Industrial applications frequently require high torque at relatively low operating speeds.

The optimized gear reduction mechanism efficiently converts motor power into usable output torque, supporting demanding operating conditions while maintaining compact dimensions.

Excellent Structural Rigidity

The robust housing design helps maintain gear alignment under load.

Advantages include:

✔ Reduced deformation

✔ Improved bearing stability

✔ Enhanced transmission accuracy

✔ Greater operational reliability

This structural integrity becomes especially important in continuous-duty industrial environments.

🏭 Common Applications of Single-Hole Output Right-Angle Gear Reducers

The versatility of right-angle gear reducers makes them suitable for a wide range of industries.

🤖 Industrial Automation

Automated production systems rely on compact drive solutions capable of delivering precise motion control and high operational reliability.

Applications include:

● Assembly systems

● Automated workstations

● Pick-and-place equipment

● Material handling systems

📦 Packaging Machinery

Packaging equipment often operates in confined spaces while requiring precise synchronization between moving components.

Right-angle gear reducers provide the flexibility necessary for optimized machine design.

🚚 Conveyor Systems

Conveyors benefit from the high torque output and efficient power transmission offered by helical bevel gear reducers.

Reliable operation helps minimize downtime and improve production efficiency.

🔬 Semiconductor and Electronics Manufacturing

Precision equipment used in semiconductor fabrication and electronics assembly requires low-vibration transmission systems.

The smooth operation of helical bevel gear reducers makes them well suited for these applications.

🤝 Robotics and Smart Manufacturing

As robotics continue to expand across industrial sectors, compact power transmission systems play an increasingly important role.

Right-angle gear reducers help maximize available installation space while maintaining precise motion performance.

🌟 Why More Engineers Choose iHF Group

Selecting the right gearbox supplier is just as important as choosing the gearbox itself.

iHF Group has established a strong reputation for providing advanced motion control and power transmission solutions designed to meet the needs of modern industry.

Its Single-Hole Output Right-Angle Gear Reducers are engineered to deliver:

✔ High transmission efficiency

✔ Compact installation design

✔ Reliable torque performance

✔ Precision manufacturing quality

✔ Long-term operational stability

By combining advanced gear engineering with strict quality control standards, iHF Group helps customers improve machine performance while optimizing overall system efficiency.

📈 Future Trends in Compact Power Transmission

The future of industrial machinery is defined by automation, miniaturization, and intelligent manufacturing.

As equipment designers continue seeking ways to maximize productivity within limited space, demand for advanced right-angle transmission solutions will continue to grow.

Single-Hole Output Right-Angle Gear Reducers represent an ideal balance between compact structure, high efficiency, and reliable power transmission. Their ability to simplify machine layouts while maintaining excellent performance makes them a valuable asset across a wide range of industries.

For manufacturers aiming to improve equipment performance, reduce installation constraints, and enhance operational reliability, investing in advanced right-angle gear reducer technology from iHF Group is a practical step toward smarter and more efficient industrial systems.

Conclusion

As industrial equipment becomes more compact, intelligent, and performance-driven, the demand for efficient power transmission solutions continues to grow. The Single-Hole Output Right-Angle Gear Reducer addresses this need by combining a space-saving 90-degree configuration with the smooth, high-efficiency performance of helical bevel gears. Its ability to optimize machine layouts, improve torque transmission, and enhance operational reliability makes it an ideal choice for automation systems, packaging machinery, conveyor equipment, robotics, and other precision industrial applications.

With its commitment to precision engineering and advanced transmission technology, iHF Group provides reliable Single-Hole Output Right-Angle Gear Reducer solutions that support the evolving needs of modern industry. For companies seeking higher productivity, greater design flexibility, and long-term operational value, investing in a high-quality right-angle gear reducer is a strategic step toward more efficient and competitive manufacturing.
